APPLICATIONS:
This product is mainly used for arc welder and has excellent flexibility.
STANDARD:
KS C IEC 60245-6

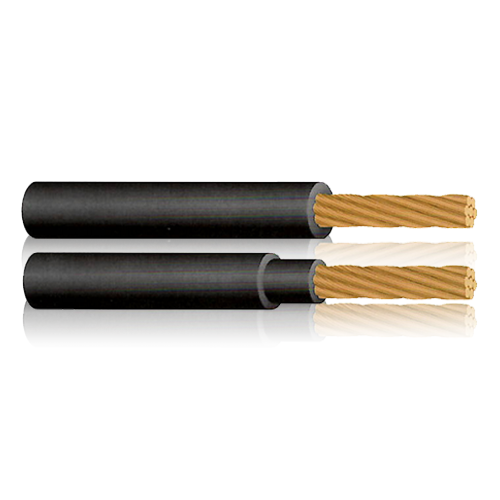

WELDING CABLE
Arc Welding Electrode Cables
CONDUCTORS:
Flexible plain or tin-coated annealed copper to meet the following table
COVERING:
60245 IEC KS 81 – Rubber compound
60245 IEC KS 82 – Polychloroprene compound, or composite covering comprising insulation of rubber compound and as sheath of polychloroprene compound
COLOR: Black
Recommended min/max temperature: -35 degrees C / 60 degrees
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 10020050.00-1-1-1 | 2 x 0.50 OZ | 4.80 | 0.96 | 3.50 |
| 10020075.00-1-1-1 | 2 x 0.75 OZ | 5.40 | 1.44 | 4.50 |
| 10020100.00-1-1-1 | 2 x 1 OZ | 5.70 | 1.92 | 5.30 |
| 10020150.00-1-1-1 | 2 x 1.50 OZ | 6.30 | 2.88 | 6.80 |
| 10020250.00-1-1-1 | 2 x 2.50 OZ | 7.50 | 4.80 | 10.10 |
| 10020400.00-1-1-1 | 2 x 4 OZ | 9.90 | 7.68 | 18.50 |
| 10030050.00-1-1-1 | 3 x 0.50 | 5.10 | 1.44 | 4.20 |
| 10030075.00-1-1-1 | 3 x 0.75 | 5.70 | 2.16 | 5.50 |
| 99030075.00-1-1-1 | 3 x 0.75 OZ | 5.70 | 2.16 | 5.50 |
| 10030100.00-1-1-1 | 3 x 1 | 6.00 | 2.88 | 6.50 |
| 99030100.00-1-1-1 | 3 x 1 OZ | 6.00 | 2.88 | 6.50 |
| 99030050.00-1-1-1 | 3 x 0.50 OZ | 5.10 | 1.44 | 4.20 |
| 99030150.00-1-1-1 | 3 x 1.50 OZ | 6.70 | 4.32 | 8.40 |
| 10030150.00-1-1-1 | 3 x 1.50 | 6.70 | 4.32 | 8.40 |
| 10030250.00-1-1-1 | 3 x 2.50 | 8.10 | 7.20 | 13.20 |
| 99030250.00-1-1-1 | 3 x 2.50 OZ | 8.30 | 7.20 | 14.80 |
| 10030400.00-1-1-1 | 3 x 4 | 9.90 | 11.52 | 20.10 |
| 10030600.00-1-1-1 | 3 x 6 | 11.70 | 17.28 | 28.90 |
| 10031000.00-1-1-1 | 3 x 10 | 14.70 | 28.80 | 68.20 |
| 10031600.00-1-1-1 | 3 x 16 | 20.00 | 46.08 | 82.70 |
| 10033500.00-1-1-1 | 3 x 35 | 25.90 | 100.80 | 158.50 |
| 10035000.00-1-1-1 | 3 x 50 | 31.50 | 144.00 | 255.00 |
| 10040050.00-1-1-1 | 4 x 0.50 | 5.70 | 1.92 | 5.40 |
| 10040075.00-1-1-1 | 4 x 0.75 | 6.20 | 2.88 | 6.60 |
| 99040075.00-1-1-1 | 4 x 0.75 OZ | 6.20 | 2.88 | 6.60 |
| 10040100.00-1-1-1 | 4 x 1 | 6.50 | 3.84 | 7.90 |
| 99040100.00-1-1-1 | 4 x 1 OZ | 6.50 | 3.84 | 7.90 |
| 99040050.00-1-1-1 | 4 x 0.50 OZ | 5.70 | 1.92 | 5.40 |
| 10040150.00-1-1-1 | 4 x 1.50 | 7.20 | 5.76 | 10.40 |
| 99040150.00-1-1-1 | 4 x 1.50 OZ | 7.20 | 5.76 | 10.40 |
| 99040250.00-1-1-1 | 4 x 2.50 OZ | 8.90 | 9.60 | 16.30 |
| 10040250.00-1-1-1 | 4 x 2.50 | 8.90 | 9.60 | 16.30 |
| 10040400.00-1-1-1 | 4 x 4 | 10.80 | 15.36 | 24.90 |
| 10040600.00-1-1-1 | 4 x 6 | 13.00 | 23.04 | 36.50 |
| 10041000.00-1-1-1 | 4 x 10 | 16.30 | 38.40 | 73.70 |
| 60245 81 16 | 60245 81 16 x 0.21 x 6.0 | 6 | 230 | |
| 60245 81 25 | 60245 81 25 x 0.21 x 7.0 | 7 | 330 | |
| 60245 81 35 | 60245 81 35 x 0.21 x 8.3 | 8.3 | 430 | |
| 60245 81 50 | 60245 81 50 x 0.21 x 10.1 | 10.1 | 600 | |
| 60245 81 70 | 60245 81 70 x 0.21 x 11.9 | 11.9 | 800 | |
| 60245 81 95 | 60245 81 95 x 0.21 x 14.0 | 14 | 1100 | |
| 60245 82 16 | 60245 82 6 x 0.21 x 6.0 | 6 | 230 | |
| 60245 82 25 | 60245 82 25 x 0.21 x 7.0 | 7 | 330 | |
| 60245 82 35 | 60245 82 35 x 0.21 x 8.3 | 8.3 | 430 | |
| 60245 82 50 | 60245 82 50 x 0.21 x 10.1 | 10.1 | 600 | |
| 60245 82 70 | 60245 82 70 x 0.21 x 11.9 | 11.9 | 800 | |
| 60245 82 95 | 60245 82 95 x 0.21 x 14.0 | 14 | 1100 |
