YSLY-O-UL-Black-Ul_CSA

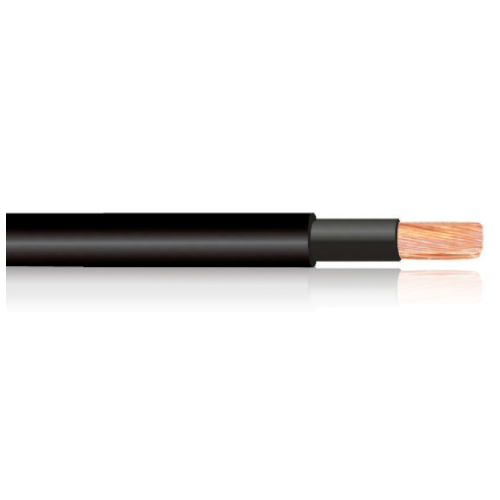

YSLY-O UL Black Ul/CSA

Increased oil-resistant Control and Power supply single core cable
TOTAL PRICE

SGD 0.00

Application

Especially suitable for export-oriented machinery. It is suitable for control equipment on machine tools subjected to medium mechanical stresses, for fixed and flexible installation, where free movement is required without tensile stresses and without forced guidance systems. In dry, damp and wet rooms, including water-oil mixtures. The cable is also suitable for outdoor use within the indicated working temperature.

Construction

  • Flexible bare copper conductores according to CEI 20-29 Class 5, IEC 60228 Cl.5, DIN-VDE 0295 K5 and UL 83 standard
  • Special PVC Insulation compound TI3 UL 90°C 758
  • Black or green/yellow core
  • Outer sheath of special PVC TM3 type according to UL 90°C 758

Technical Data

Conductor Material bare copper
Conductor class Class 5
Core insulation Special PVC
Core identification black or green/yellow
Stranding
Outer sheath Special PVC, UV resistant
Sheath colour Black
Rated voltage [V] 600V UL – 600/100V IEC
Testing voltage [V] 6000
Conductor resistance
Insulation resistance
Current carrying capacity
Min. bending radius fixed [xd] 4xd
Min. bending radius moved [xd] 13xd
Working temp fixed min/max [C] -40°C up to +90
Working temp moved min/mac [C] UL -5°C to+90°C
Temp at conductor max. *
Burning behaviour Self-extinguishing, DIN VDE 0472 part 804; IEC 60332-1; UL 1581 section 1060 (Vertical Flame and FT1 Test) Reduced Fire Propagation according to IEC 60332-3-24
Approvals Oil-resistance: DIN EN 50290-2-22 resp. VDE 0819-102 TM54 UL Style 10107 CSA-AWM I A/B

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
1 x 2.5 AWG14 1 x 2.5 AWG14 6 2.4 5.98
1 x 4 AWG12 1 x 4 AWG12 6.6 3.84 7.88
1 x 6 AWG10 1 x 6 AWG10 7.2 5.76 10.26
1 x 10 AWG8 1 x 10 AWG8 8.9 9.6 16.26
1 x 16 AWG6 1 x 16 AWG6 9.9 15.36 22.63
1 x 25 AWG4 1 x 25 AWG4 11.4 24 32.56
1 x 35 AWG2 1 x 35 AWG2 13.9 33.6 47.14
1 x 50 AWG1 1 x 50 AWG1 15.6 48 63.56
1 x 70 AWG2/0 1 x 70 AWG2/0 17.7 67.2 85.07
1 x 95 AWG3/0 1 x 95 AWG3/0 19.2 91.2 109.17
1 x 120 AWG4/0 1 x 120 AWG4/0 22 115.2 139.67
1 x 150 250MCM 1 x 150 250MCM 23.6 144 169.36
1 x 185 350MCM 1 x 185 350MCM 26.2 177.6 208.55
1 x 240 450MCM 1 x 240 450MCM 31 230.4 278.7
1 x 300 550MCM 1 x 300 550MCM 34.7 288 350.46
