Industrial machinery; plant engineering
TC-ER (Tray Cable Exposed Run) approval for open wiring between cable tray and industrial machines/plants acc. to NEC 336.10(7)
Wind turbines: USA Wind Turbine Tray Cable (WTTC)
Class 1, Div. 2 in accordance with NEC “National Electrical Code” Art. 336, 392, 501
Suitable for outdoor use and direct burial

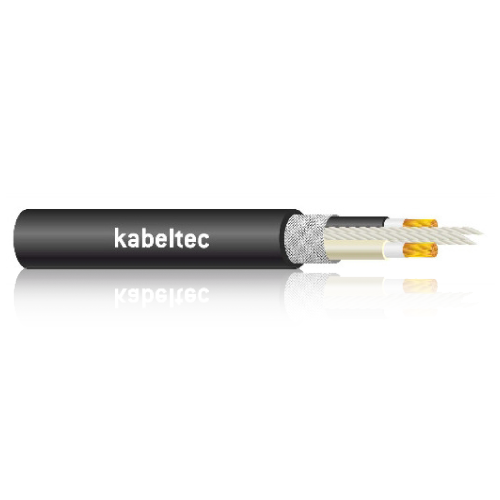

TRAY CY
Connection and control cable, PVC, 0.6/1kV, screened
CONSTRUCTION:
- Fine-wire strand made of bare copper wires
- Aluminium-coated foil
- Tinned-copper braiding
- Classification: ETIM 5.0 Class-ID: EC000104 ETIM 5.0 Class-Description: Control Cable
- Flame-retardant according to CSA FT4
- Suitable for outdoor use
- Cold-resistant
- UL Vertical-Tray Flame Test
- Oil- resistant according to UL OIL RES I & II
- Mechanical resistance
- Interference signals
- Water-resistant, UL Wet Approval 75°C
- UV-resistant UL SUN RES
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
TECHNICAL DATA:
| Conductor Material: | Copper, fine-wire strand |
| Conductor class: | * |
| Core insulation: | PVC+nylon sheath (PA skin) |
| Core identification: | Black with white numbers |
| Stranding: | * |
| Outer sheath: | Special thermoplastic polymer |
| Sheath colour: | Black |
| Rated voltage [V]: | UL/CSA: 600 V (TC, MTW CIC), WTTC 1000 V UL/CSA: 1000 |
| V (AWM) VDE U0 /U: 600/1000 | |
| Testing voltage [V]: | * |
| Conductor resistance: | * |
| Insulation resistance: | * |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | * |
| Min. bending radius moved [xd]: | * |
| Working temp fixed min/max [C]: | -40°C up to +90 |
| Working temp moved min/mac [C]: | -25°C up to +90 |
| Temp at conductor max: | * |
| Burning behaviour: | * |
| Approvals: | UL MTW (Machine-tool Wire) [E155920]; UL AWM |
| (Appliance Wiring Material-Component) style 20886 | |
| (+150°C) [E100338]; UL Wet Approval 75°C; UL Type TC | |
| (Tray Cable) -ER (Exposed Run) [E171371] or DP-1; UL | |
| PLTC (Power Limited Tray Cable) -ER (Exposed Run); UL | |
| ITC (Instrumentation Tray Cable) -ER (Exposed Run); UL | |
| WTTC (FT4) [E323700]; OIL RES. I, OIL RES. II; | |
| P-07-KA050016-MSHA (ÖLFLEX TRAY II CY); c(UL) CIC/TC | |
| and FT4; CSA-AWM I (internal wiring/II (external wiring) | |
| A (dry)/ B (wet); FT4 (highly< flame-retardant). |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 141030100TRAY | 3 x 1 | 8.20 | 3.51 | 11.90 |
| 141030150TRAY | 3 x 1.5 | 8.90 | 5.98 | 14.40 |
| 141030250TRAY | 3 x 2.5 | 9.80 | 9.12 | 18.00 |
| 141040100TRAY | 4 x 1 | 8.80 | 5.52 | 13.70 |
| 141040150TRAY | 4 x 1.5 | 9.60 | 7.45 | 17.30 |
| 141040250TRAY | 4 x 2.5 | 10.70 | 12.57 | 22.30 |
| 141040400TRAY | 4 x 4 | 12.50 | 18.64 | 31.50 |
| 141040600TRAY | 4 x 6 | 15.50 | 27.17 | 55.20 |
| 141041000TRAY | 4 x 10 | 18.70 | 43.86 | 85.70 |
| 141041600TRAY | 4 x 16 | 23.30 | 69.90 | 120.80 |
| 141042500TRAY | 4 x 25 AWG4 | 2.60 | 129.68 | 198.20 |
| 141043500TRAY | 4 x 35 AWG2 | 33.20 | 189.95 | 290.30 |
| 141050100TRAY | 5 x 1 | 9.40 | 6.58 | 14.90 |
| 141050150TRAY | 5 x 1.5 | 10.30 | 9.35 | 18.90 |
| 141050250TRAY | 5 x 2.5 | 11.60 | 15.01 | 26.80 |
| 141050400TRAY | 5 x 4 | 14.40 | 23.26 | 38.80 |
| 141070100TRAY | 7 x 1 | 10.10 | 8.69 | 19.30 |
| 141070150TRAY | 7 x 1.5 | 11.30 | 13.05 | 24.60 |
| 141070250TRAY | 7 x 2.5 | 12.50 | 20.12 | 32.70 |
| 141070400TRAY | 7 x 4 | 15.50 | 31.02 | 49.90 |
| 141070600TRAY | 7 x 6 | 18.20 | 45.74 | 85.60 |
| 141120100TRAY | 12 x 1 | 12.90 | 14.93 | 33.00 |
| 141120150TRAY | 12 x 1.5 | 15.10 | 21.38 | 42.60 |
| 141120250TRAY | 12 x 2.5 | 16.90 | 33.36 | 59.50 |
| 141180100TRAY | 18 x 1 | 15.70 | 21.42 | 43.80 |
| 141180150TRAY | 18 x 1.5 | 17.30 | 31.24 | 51.50 |
| 141180250TRAY | 18 x 2.5 | 19.50 | 48.76 | 78.40 |
| 141250100TRAY | 25 x 1 | 17.70 | 35.42 | 57.40 |
| 141250150TRAY | 25 x 1.5 | 19.60 | 41.56 | 70.80 |
| 141250250TRAY | 25 x 2.5 | 23.30 | 68.51 | 104.80 |
