Industrial and processing equipment, cranes and hoists, track systems, tools, construction equipment, motors and associated machinery. Garage portable lights, battery charger and equipment exposed to oils, solvents, flame, moisture and other electrical equipment

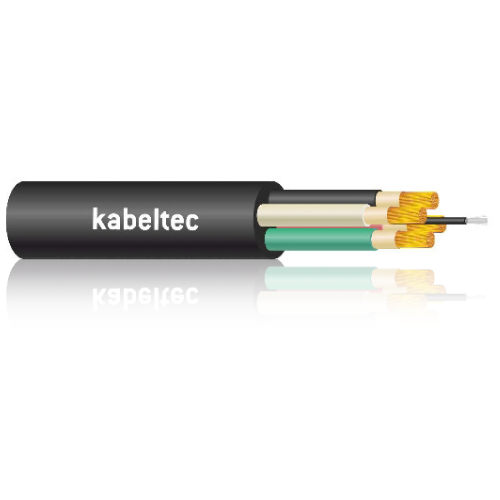

CONSTRUCTION:
- Stranded bare copper per ASTM B-174
- Cores twisted in layers
- Outer jacket neoprene, black
- Core insulation made of 90°C EPDM
- Oil-resistant
- Water-resistant
TECHNICAL DATA: | |
Conductor Material: | Copper, bare |
Conductor class: | * |
Core insulation: | 90°C EPDM |
Core identification: | 2 cores: black, white |
3 cores: black, white, green | |
4 cores: black, white, red, green | |
Stranding: | Cores twisted in layers |
Outer sheath: | black CPE 90°C compound |
Sheath colour: | Black |
Rated voltage [V]: | 600 |
Testing voltage [V]: | * |
Conductor resistance: | * |
Insulation resistance: | * |
Current carrying capacity: | * |
Min. bending radius fixed [xd]: | * |
Min. bending radius moved [xd]: | * |
Working temp fixed min/max [C]: | -40°C up to+90°C |
Working temp moved min/max [C]: | -40°C up to +90 |
Temp at conductor max: | * |
Burning behaviour: | * |
Approvals: | – UL flexible cord – UL 62 |
– CSA flexible cord – C22.2-49 | |
– OSHA | |
– MSHA P-7K-254013 | |
– JC 580 |
PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
---|---|---|---|---|
80020200 | 2 x 2 AWG | 25.60 | 70.00 | 122.28 |
80020400 | 2 x 4 AWG | 22.40 | 50.00 | 80.30 |
80020600 | 2 x 6 AWG | 18.40 | 32.00 | 52.49 |
80020800 | 2 x 8 AWG | 16.10 | 20.00 | 38.37 |
80021000 | 2 x 10 AWG | 15.75 | 12.00 | 36.39 |
80021200 | 2 x 12 AWG | 14.48 | 8.00 | 29.85 |
80021400 | 2 x 14 AWG | 12.70 | 5.00 | 22.43 |
80021600 | 2 x 16 AWG | 9.40 | 3.00 | 11.58 |
80021800 | 2 x 18 AWG | 8.76 | 2.00 | 11.14 |
80030200 | 3 x 2 AWG | 27.30 | 105.00 | 145.74 |
80030400 | 3 x 4 AWG | 23.80 | 75.00 | 102.47 |
80030600 | 3 x 6 AWG | 19.50 | 48.00 | 66.92 |
80030800 | 3 x 8 AWG | 17.10 | 30.00 | 48.48 |
80031000 | 3 x 10 AWG | 16.76 | 18.00 | 45.60 |
80031200 | 3 x 12 AWG | 15.24 | 12.00 | 34.90 |
80031400 | 3 x 14 AWG | 13.46 | 7.50 | 26.14 |
80031600 | 3 x 16 AWG | 9.91 | 4.50 | 15.60 |
80031800 | 3 x 18 AWG | 9.27 | 3.00 | 12.92 |
80040200 | 4 x 2 AWG | 30.00 | 140.00 | 186.05 |
80040400 | 4 x 4 AWG | 26.10 | 100.00 | 130.28 |
80040600 | 4 x 6 AWG | 22.50 | 64.00 | 90.27 |
80040800 | 4 x 8 AWG | 18.80 | 40.00 | 60.97 |
80041000 | 4 x 10 AWG | 18.16 | 24.00 | 53.47 |
80041200 | 4 x 12 AWG | 16.51 | 16.00 | 43.22 |
80041400 | 4 x 14 AWG | 14.61 | 10.00 | 31.19 |
80041600 | 4 x 16 AWG | 10.67 | 6.00 | 17.82 |
80041800 | 4 x 18 AWG | 9.91 | 4.00 | 15.15 |
80050200 | 5 x 2 AWG | 33.10 | 175.00 | 228.13 |
80050400 | 5 x 4 AWG | 28.80 | 125.00 | 158.83 |
80050600 | 5 x 6 AWG | 24.70 | 80.00 | 109.46 |
80050800 | 5 x 8 AWG | 20.70 | 50.00 | 74.21 |
80051000 | 5 x 10 AWG | 19.30 | 28.80 | 64.00 |
