This cable has been created for areas of public events e.g. concerts, light and sound events etc., for the protection of sound and light equipment in case of UV radiation.

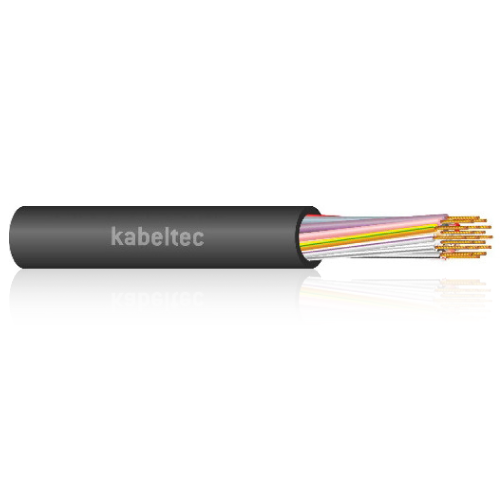

SOFTFLEX-JB Black
Construction:
- PVC core insulation, coloured cores acc. to JB/OB colour code (VDE 0293)
- Stranding acc. to VDE 0295 class 5
- Fine strands of bare copper conductor
- Earth conductor green/yellow in outer layer
- PVC outer sheath, black RAL 9005
- Bending radius 15 x Ø
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 |
| Core insulation: | PVC |
| Core identification: | Coloured cores acc. to JB/OB colour code (VDE 0293) |
| Stranding: | |
| Outer sheath: | PVC |
| Sheath colour: | Black (RAL 9005) |
| Rated voltage [V]: | 300/500 |
| Testing voltage [V]: | 3500 |
| Conductor resistance: | |
| Insulation resistance: | 20 MΩ x km |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 15 x d |
| Working temp fixed min/max [C]: | -40°C up to +70°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals: |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 111180150SOFT | 18 x 1.50 | 15.90 | 25.92 | 42.00 |
| 111180250SOFT | 18 x 2.50 | 19.70 | 43.20 | 87.00 |
