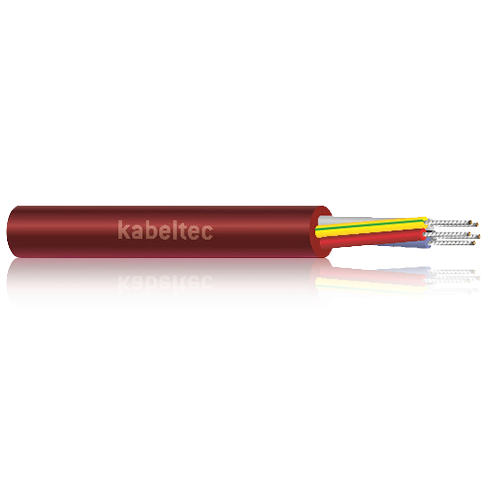

SIHF-J

Silicone control cable

TOTAL PRICE

SGD 0.00

Suitable where PVC-insulated cables become brittle due to high temperature variations.

Silicone-insulated single cores are preferably used in the metallurgical industry, steel works, hot-rolling mills, coking plants, foundries etc. The insulation consists of silicone rubber.

It is resistant to vegetable and animal fat, many types of oil and diluted acids. No
decomposition occurs when exposed to alcohol, alkaline dilutions etc. The insulation is resistant to oxygen and ozone. Should the cable burn, an insulation silicone dioxide layer will remain on the conductor to render it short circuit proof.

CONSTRUCTION:

  • Stranded conductor of tinned copper wire
  • Core insulation made of silicone rubber
  • Stranding acc. to VDE 0295 class 5
  • Up to 5 cores: colour coded according to VDE 0293
  • 6 cores and more: black cores with printed consecutive number coding
  • Earth conductor green/yellow
  • Silicone outer sheath, red brown

TECHNICAL DATA:

Conductor Material Copper tinned
Conductor class Class 5 acc. to DIN VDE 0295 or IEC 60228
Core insulation Silicone rubber
Core identification
Up to 5 cores colour coded in accordance to VDE 0293, 6 cores and more black with printed consecutive number coding
Stranding Cores twisted in layers
Outer sheath Silicone
Sheath colour Red-brown
Rated voltage [V] 300 / 500
Testing voltage [V] 2000
Conductor resistance *
Insulation resistance > 2 GΩ x km
Current carrying capacity DIN VDE (s. technical guidelines)
Min. bending radius fixed [xd] 5
Min. bending radius moved [xd] 10
Working temp fixed min/max [C] -60°C up to +180
Working temp moved min/mac [C] -60°C up to +180
Temp at conductor max +180°C
Burning behaviour VDE 0482-332-2-1 (IEC 60332-1): flame-retardant
Approvals IEC 60754-1 halogenfrei IEC 60754-2

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M
WEIGHT
KG/100M
44020050.00 2 x 0.50 OB 5.90 0.96 5.00
44020075.00 2 x 0.75 OB 6.40 1.44 5.40
44020100.00 2 x 1 OB 6.60 1.90 6.10
44020150.00 2 x 1.50 OB 7.60 2.90 8.20
44020250.00 2 x 2.50 OB 9.00 4.80 13.70
44020400.00 2 x 4 OB 10.80 7.70 18.20
44020600.00 2 x 6 OB 12.40 11.60 27.90
44030100.00 3 x 1 7.00 2.90 7.80
44030050.00 3 x 0.5 5.90 1.44 4.20
44030150.00 3 x 1.50 8.00 4.30 9.80
44030250.00 3 x 2.50 9.70 7.20 15.20
44030400.00 3 x 4 11.50 11.50 22.90
44030600.00 3 x 6 13.20 17.30 34.20
44040075.00 4 x 0.75 7.60 2.90 8.40
44040100.00 4 x 1 8.00 3.80 9.50
44040050.00 4 x 0.5 6.60 1.92 5.40
44040150.00 4 x 1.50 8.80 5.80 12.20
44040250.00 4 x 2.50 10.60 9.60 18.90
44040400.00 4 x 4 12.60 15.40 29.50
44040600.00 4 x 6 14.70 23.00 44.20
44041000.00 4 x 10 19.50 38.40 70.70
44041600.00 4 x 16 22.00 61.40 98.70
44042500.00 4 x 25 27.30 96.00 148.00
44043500.00 4 x 35 31.00 134.40 203.00
44045000.00 4 x 50 34.00 192.00 299.00
44047000.00 4 x 70 44.50 268.80 355.00
44049500.00 4 x 95 51.00 364.00 480.00
44050075.00 5 x 0.75 8.50 3.60 10.10
44050100.00 5 x 1 8.80 4.80 11.60
44050050.00 5 x 0.5 7.30 2.40 6.20
44050150.00 5 x 1.50 9.60 7.20 14.80
44050250.00 5 x 2.50 11.60 12.00 22.90
44050400.00 5 x 4 14.00 19.10 35.90
44050600.00 5 x 6 16.60 28.90 53.50
44051000.00 5 x 10 21.50 48.00 85.70
44051600.00 5 x 16 25.60 76.80 118.00
44053500.00 5 x 35 36.70 168.00 285.00
44060075.00 6 x 0.75 9.20 4.30 11.70
44060100.00 6 x 1 9.50 5.80 13.50
44060150.00 6 x 1.50 10.40 8.60 17.30
44060250.00 6 x 2.50 12.60 14.40 26.90
44060400.00 6 x 4 16.20 23.00 44.10
44070075.00 7 x 0.75 9.20 5.00 12.50
44070100.00 7 x 1 10.00 6.70 14.40
44070050.00 7 x 0.5 8.10 3.40 8.20
44070150.00 7 x 1.50 10.50 10.10 18.70
44070250.00 7 x 2.50 13.00 16.80 29.30
44070400.00 7 x 4 15.60 26.90 48.20
44070600.00 7 x 6 18.60 40.32 68.50
44080150.00 8 x 1.5 11.60 11.52 21.30
44100050.00 10 x 0.5 10.40 4.80 12.40
44120050.00 12 x 0.5 10.80 5.76 14.10
44120075.00 12 x 0.75 11.10 8.65 17.80
44120100.00 12 x 1 12.60 11.52 25.60
44120150.00 12 x 1.50 14.00 17.30 32.20
44120250.00 12 x 2.50 18.00 28.80 33.20
44160050.00 16 x 0.5 12.30 7.68 18.60
44160100.00 16 x 1 14.30 15.40 30.20
44160250.00 16 x 2.5 19.10 38.40 65.90
44180050.00 18 x 0.5 12.90 8.65 21.10
44180075.00 18 x 0.75 13.30 13.00 26.00
44180100.00 18 x 1 15.10 17.30 37.40
44180150.00 18 x 1.5 17.60 25.92 51.00
44190250.00 19 x 2.5 21.10 45.60 91.20
44200100.00 20 x 1 15.80 19.20 40.00
44200150.00 20 x 1.50 17.50 28.80 56.90
44210250.00 21 x 2.5 23.00 50.40 100.80
44240150.00 24 x 1.50 20.00 34.60 72.50
44240250.00 24 x 2.50 24.50 57.60 100.70
44250075.00 25 x 0.75 15.60 18.00 37.00
44250100.00 25 x 1 18.50 24.00 43.10
44250150.00 25 x 1.5 21.00 36.00 44.90
44250250.00 25 x 2.5 25.70 60.00 120.00
