Suitable where PVC-insulated cables become brittle due to high temperature variations. Silicone-insulated single cores are preferably used in the metallurgical industry, steel works, hot-rolling mills, coking plants, foundries, etc. The insulation consists of silicone rubber. It is resistant to vegetable and animal fat, many types of oil and diluted acids. No decomposition occurs when exposed to alcohol, alkaline solutions, etc. The insulation is resistant to oxygen and ozone. Should the cable burn, an insulation silicone dioxide layer will remain on the conductor to render it short circuit proof. The steel wire braid provides excellent mechanical protection.
SIHF-GLP

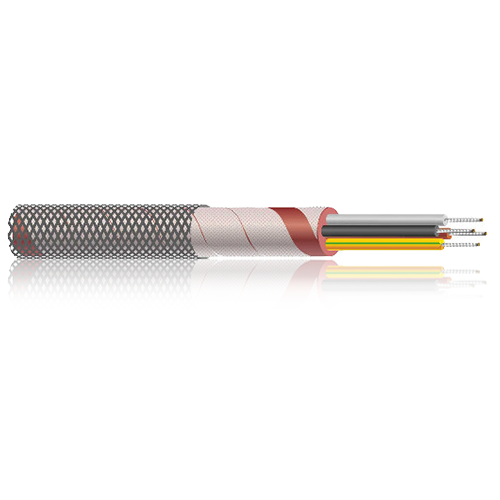

Silicone control cable with glass fibre and steel wire braiding
CONSTRUCTION:
- Stranded conductor of tinned copper wire
- Silicone outer sheath, red brown
- Cores twisted in layers
- Earth conductor green/yellow
- 6 cores and over: black cores with printed consecutive number coding
- -Up to 5 cores: colour coded according to VDE 0293
- Core insulation made of silicone rubber
- Stranding acc. to VDE 0295 class 5
- Glass fibre braiding
- Armoured braid made of galvanized steel wire
TECHNICAL DATA:
| Conductor Material | Copper tinned |
| Conductor class | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation | Silicone rubber |
| Core identification |
Up to 5 cores colour coded in accordance to VDE 0293, cores and more black with printed consecutive number coding
|
| Stranding | Cores twisted in layers |
| Outer sheath | Silicone |
| Sheath colour | Red-brown |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | 2000 |
| Conductor resistance | * |
| Insulation resistance | > 20 MΩ x km |
| Current carrying capacity | DIN VDE (s. technical guidelines) |
| Min. bending radius fixed [xd] | 5 |
| Min. bending radius moved [xd] | 10 |
| Working temp fixed min/max [C] | -60°C up to +180 |
| Working temp moved min/mac [C] | -60°C up to +180 |
| Temp at conductor max | +180°C |
| Burning behaviour | VDE 0482-332-2-1 (IEC 60332-1): flame-retardant |
| Approvals | IEC 60754-1 halogen-free IEC 60754-2 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 45020075.00 | 2 x 0.75 OB | 7.70 | 1.44 | 9.00 |
| 45020100.00 | 2 x 1 OB | 8.00 | 1.90 | 9.80 |
| 45020150.00 | 2 x 1.50 OB | 9.30 | 2.90 | 12.70 |
| 45020250.00 | 2 x 2.50 OB | 10.80 | 4.80 | 18.70 |
| 45020400.00 | 2 x 4 OB | 12.00 | 7.68 | 27.00 |
| 45020600.00 | 2 x 6 | 15.10 | 11.52 | 30.80 |
| 45030075.00 | 3 x 0.75 | 8.10 | 2.20 | 10.20 |
| 45030100.00 | 3 x 1 | 8.50 | 2.90 | 12.20 |
| 45030150.00 | 3 x 1.50 | 9.80 | 4.30 | 14.50 |
| 45030250.00 | 3 x 2.50 | 11.20 | 7.20 | 20.50 |
| 45030400.00 | 3 x 4 | 12.80 | 11.50 | 31.00 |
| 45030600.00 | 3 x 6 | 15.70 | 17.28 | 43.10 |
| 45040075.00 | 4 x 0.75 | 9.00 | 2.88 | 13.00 |
| 45040100.00 | 4 x 1 | 9.30 | 3.80 | 14.20 |
| 45040150.00 | 4 x 1.50 | 10.80 | 5.80 | 17.30 |
| 45040250.00 | 4 x 2.50 | 12.50 | 9.60 | 28.00 |
| 45040400.00 | 4 x 4 | 14.90 | 15.40 | 35.90 |
| 45040600.00 | 4 x 6 | 17.80 | 23.10 | 54.40 |
| 45041000.00 | 4 x 10 | 21.80 | 38.40 | 92.50 |
| 45041600.00 | 4 x 16 | 26.00 | 61.44 | 123.50 |
| 45042500.00 | 4 x 25 | 30.40 | 96.00 | 170.00 |
| 45043500.00 | 4 x 35 | 35.80 | 134.40 | 185.00 |
| 45050075.00 | 5 x 0.75 | 9.80 | 3.60 | 15.80 |
| 45050100.00 | 5 x 1 | 10.20 | 4.80 | 16.70 |
| 45050150.00 | 5 x 1.50 | 11.80 | 7.20 | 20.10 |
| 45050250.00 | 5 x 2.50 | 13.80 | 12.00 | 32.30 |
| 45050400.00 | 5 x 4 | 15.90 | 19.20 | 45.40 |
| 45050600.00 | 5 x 6 | 19.50 | 28.80 | 65.50 |
| 45060075.00 | 6 x 0.75 | 10.40 | 4.30 | 16.90 |
| 45060100.00 | 6 x 1 | 10.80 | 5.80 | 18.80 |
| 45060150.00 | 6 x 1.50 | 12.50 | 8.60 | 24.00 |
| 45060250.00 | 6 x 2.50 | 14.20 | 14.40 | 35.50 |
| 45070075.00 | 7 x 0.75 | 10.60 | 5.00 | 17.70 |
| 45070100.00 | 7 x 1 | 10.90 | 6.70 | 19.80 |
| 45070150.00 | 7 x 1.50 | 12.50 | 10.00 | 24.40 |
| 45070250.00 | 7 x 2.50 | 14.80 | 16.80 | 38.00 |
| 45070400.00 | 7 x 4 | 17.50 | 26.90 | 55.90 |
| 45070600.00 | 7 x 6 | 20.70 | 40.30 | 76.80 |
| 45120150.00 | 12 x 1.50 | 16.40 | 17.30 | 32.70 |
| 45160150.00 | 16 x 1.5 | 17.50 | 23.10 | 39.20 |
| 45180150.00 | 18 x 1.50 | 18.50 | 26.00 | 44.00 |
| 45240150.00 | 24 x 1.50 | 21.50 | 34.60 | 60.00 |
