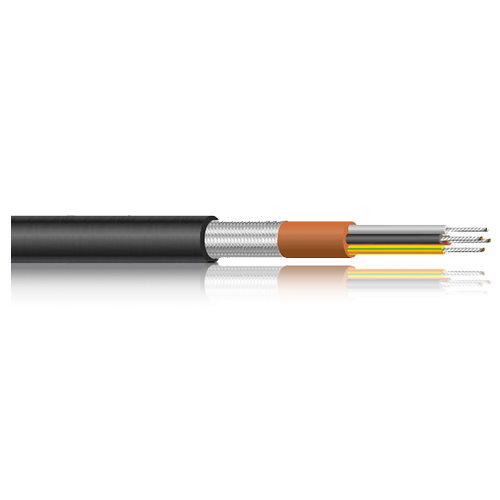

SIHF-CI-SI Black

SIHF-CU-SI black

Screened silicone cables with increased mechanical characteristics.
TOTAL PRICE

SGD 0.00

Areas with high ambient temperatures and occasionally mechanical stress.

Typical fields of application:

  • Steel, ceramic and iron works
  • Bakery equipment and industrial furnaces
  • Eletric motor industry
  • Sauna/Solarium construction
  • Thermal and heating elements
  • Lighting technology
  • Ventilator engineering
  • Air-conditioning technology
  • Galvanisation technology

Screened silicone cables with increased mechanical characteristics. Longer durability in harsh applications than conventional silicone cables. Notch and tearresistant outer sheath material reduces mechanical damage. Copper braiding screens the cables against electromagnetic interference. Flexibility simplifies installation where space is limited. Due to the of special additives in EWKF silicone, armoured cable versions will not be required.

CONSTRUCTION:

  • Fine-wire, tinned-copper conductor
  • Cores twisted together
  • Silicone-based core insulation
  • Silicone-based inner sheath
  • Tinned-copper screen braiding, interleaved plastic foil wrapping
  • Outer sheath silicone based EWKF, notch-resistant, black
  • Halogen-free and flame-retardant (IEC 60332-1-2)
  • Cold-resistant
  • Temperature-resistant
  • UV-resistant
  • Good hydrolysis and UV-resistance
  • Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
  • EWKF: Initial tear propagation and notch resistance
  • ETIM 5.0 Class-ID: EC001578
  • ETIM 5.0 Class-Description: Flexible cable

TECHNICAL DATA:

Conductor Material *
Conductor class Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Core insulation *
Core identification *
Stranding Up to 5 cores: colour-coded according to VDE 0293-308.
From 6 cores black with white numbers
Outer sheath based EWKF, notch-resistant
Sheath colour black
Rated voltage [V] 300 / 500
Testing voltage [V] 2000
Conductor resistance *
Insulation resistance *
Current carrying capacity *
Min. bending radius fixed [xd] *
Min. bending radius moved [xd] *
Working temp fixed min/max [C] *
Working temp moved min/mac [C] *
Temp at conductor max *
Burning behaviour *
Approvals *

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
46020075SW 2 x 0.75 8.60 3.75 10.40
46020100SW 2 x 1 9.00 4.30 11.60
46020150SW 2 x 1.5 10.80 5.80 16.60
46030075SW 3 x 0.75 8.90 4.61 11.80
46030100SW 3 x 1 9.70 5.57 14.20
46030150SW 3 x 1.50 11.20 7.40 18.80
46030250SW 3 x 2.50 12.80 12.12 27.10
46030600SW 3 x 6 16.40 24.05 48.90
46040075SW 4 x 0.75 10.20 5.73 15.20
46040100SW 4 x 1 10.90 6.78 17.50
46040150SW 4 x 1.50 12.00 9.14 22.20
46040250SW 4 x 2.50 13.90 15.09 32.80
46040400SW 4 x 4 16.00 21.80 44.80
46040600SW 4 x 6 17.90 30.47 59.10
46050075SW 5 x 0.75 10.90 6.73 17.60
46050100SW 5 x 1 11.60 8.03 20.30
46050150SW 5 x 1.50 12.80 12.17 27.30
46050250SW 5 x 2.50 14.80 18.05 38.70
46050400SW 5 x 4 17.20 26.29 53.10
46050600SW 5 x 6 19.40 37.00 70.60
46070100SW 7 x 1 12.30 11.39 25.00
46070150SW 7 x 1.50 13.60 15.72 34.10
