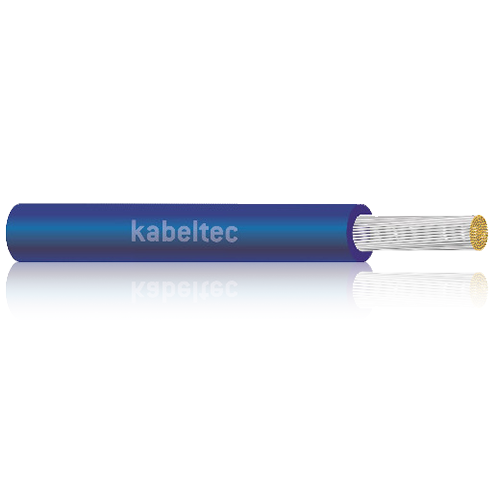

SIFF

High flexible silicone single core

TOTAL PRICE

SGD 0.00

Suitable where PVC-insulated cables become brittle due to high temperature variations.

These cables are suitable as measurement cable etc. The insulation consists of silicone rubber. It is resistant to vegetable and animal fat, many types of oil and diluted acids.

No decomposition occurs when exposed to alcohol, alkaline solutions etc. The insulation is resistant to oxygen and ozone.

Should the cable burn, an insulation silicone dioxide layer will remain on the conductor to render it short circuit proof.

CONSTRUCTION:

  • Superfine strands of tinned copper wire
  • Insulation made of silicone rubber
  • Core insulation based on silicone

TECHNICAL DATA:

Conductor Material Copper, tinned
Conductor class Class 6 acc. to DIN VDE 0295 or IEC 60228
Core insulation Silicone rubber
Core identification *
Stranding *
Outer sheath *
Sheath colour *
Rated voltage [V] 300 / 500
Testing voltage [V] Up to 1 mm²: 1500 V > 1 mm²: 2000
Conductor resistance *
Insulation resistance min. 2 GΩ x km
Current carrying capacity DIN VDE (see technical guidelines)
Min. bending radius fixed [xd] 4
Min. bending radius moved [xd] 7.5
Working temp fixed min/max [C] -50°C up to +180
Working temp moved min/mac [C] *
Temp at conductor max +180°C in operation
Burning behaviour VDE 0482-332-2-1 (IEC 60332-1): flame-retardant
Approvals IEC 60754-1 halogen-free IEC 60754-2

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M
WEIGHT
KG/100M
39..0015 1 x 0.15 1.00 0.14 0.50
39..0025 1 x 0.25 1.90 0.24 0.60
39..0050 1 x 0.50 2.10 0.47 0.80
39..0075 1 x 0.75 2.50 0.72 1.10
39..0100 1 x 1 2.70 1.00 1.40
39..0150 1 x 1.50 3.00 1.41 1.90
39..0250 1 x 2.50 3.90 2.45 3.20
39..0400 1 x 4 4.60 3.90 4.80
39..0600 1 x 6 5.70 5.92 7.30
39..1000 1 x 10 7.60 9.80 12.50
