SID

SID

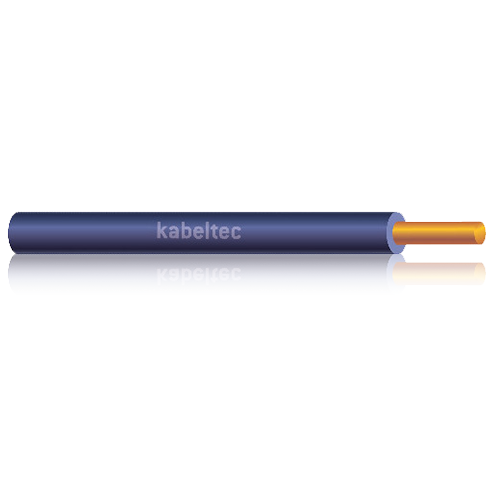

Silicone single-core, solid
TOTAL PRICE

SGD 0.00

Suitable where PVC-insulated cables become brittle due to high temperature variations.

Silicone-insulated single cores are preferably used in the metallurgical industry, steel works, hot-rolling mills, coking plants, foundries, etc. The insulation consists of silicone rubber. It is resistant to vegetable and animal fat, many types of oil and diluted acids. No decomposition occurs when exposed to alcohol, alkaline solutions, etc.

The insulation is resistant to oxygen and ozone. Should the cable burn, an insulation silicone dioxide layer will remain on the conductor to render it short circuit proof.

CONSTRUCTION:

  • Solid tinned copper wire
  • Insulating jacket made of silicone rubber
  • Halogen-free
  • Inuslation based on silicone

TECHNICAL DATA:

Conductor Material Copper, tinned
Conductor class *
Core insulation Silicone rubber
Core identification *
Stranding *
Outer sheath *
Sheath colour *
Rated voltage [V] 300 / 500
Testing voltage [V] Up to 1 mm²: 1500 V > 1 mm²: 2000
Conductor resistance Acc. to DIN VDE 0295 or IEC 60228
Insulation resistance min. 2 GΩ x km
Current carrying capacity DIN VDE (see technical guidelines)
Min. bending radius fixed [xd] 4
Min. bending radius moved [xd] 7.5
Working temp fixed min/max [C] -50°C up to +180
Working temp moved min/mac [C] *
Temp at conductor max +180°C
Burning behaviour VDE 0482-332-2-1 (IEC 60332-1): flame-retardant
Approvals IEC 60754-1 IEC 60754-2

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
41..0028 1 x 0.28 1.80 0.27 0.53
41..0025 1 x 0.25 1.70 0.24 0.43
41..0050 1 x 0.50 2.00 0.48 0.77
41..0075 1 x 0.75 2.20 0.72 1.10
41..0100 1 x 1 2.30 0.96 1.30
41..0150 1 x 1.50 2.60 1.44 1.80
41..0250 1 x 2.50 3.20 2.40 2.90
41..0400 1 x 4 3.90 3.84 4.50
41..0600 1 x 6 4.40 5.80 6.50
41..1000 1 x 10 5.60 9.60 12.00
