Computer cables are employed in process control and data processing systems to ensure optimum data transmission at a mean transmission rate of up to 200 kbits/s. Adjusted twist lengths of pairs ensure enhanced crosstalk attenuation. Low mutual capacitance and attenuation allow extended transmission distances and short pulse times to be realized. The static screen protects the pairs against external electrical interference. Computer cable with reinforced outer sheath can be used for fixed installation in dry and moist rooms, as well as for outdoor and underground installation.

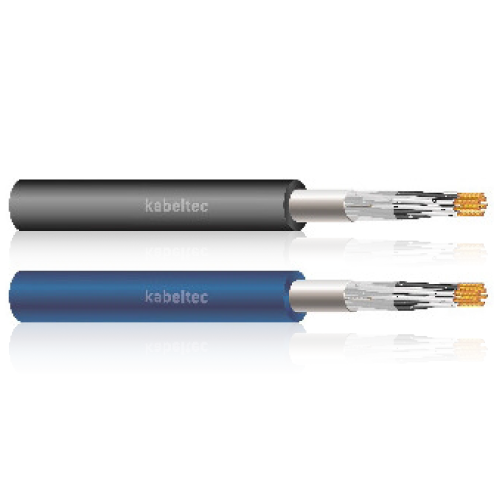

RE2Y(ST)Y
Instrumentation cable with static screen
CONSTRUCTION:
- Fine strands of bare copper wire 0,5 mm2 = 7 x 0,30 mm / 1,3 mm2 = 7 x 0,49 mm
- Outer sheath: self-extinguishing, flame-retardant
- (Multi-pair vision) static screen of plastic laminated metal foil with multi wire tinned copper tracer strand (7 x 0,30 mm) underneath the metal foil
- Cores twisted to pairs, pairs twisted in layers with a 0,5 mm² communication core
- Core colours of pairs: core a: black / core b: white / with number coding: 1/1, 2/2, etc.
- Outer sheath PVC reinforced, sheath wall thinness according to VDE 0816, series 1, black or blue
- PE-insulated
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 2 |
| Core insulation | PE |
| Core identification | – |
| Stranding | Cores twisted to pairs, pairs twisted in layers |
| Outer sheath | PVC |
| Sheath colour | Black (RAL 9005) or blue (RAL 5015) |
| Rated voltage [V] | 300 |
| Testing voltage [V] | ore/core 2000 V Core/screen 1000 |
| Conductor resistance | 0,5 mm²: Max. 39,2 Ω/km 1,3 mm²: Max. 14,3 Ω/km |
| Insulation resistance | 5 GΩ x km |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 7,5 x d |
| Min. bending radius moved [xd] | 15 x d |
| Working temp fixed min/max [C] | -40°C up to +80°C |
| Working temp moved min/mac [C] | -5°C up to +50°C Temp at conductor max. |
| Burning behaviour | IEC 60332-1 and VDE 0472 |
| Approvals | EN 50288-7 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 812010050BL | 1 x 2 x 0.50 | 8.20 | 1.50 | 7.40 |
| 812010130BL | 1 x 2 x 1.30 | 9.40 | 3.10 | 10.20 |
| 812010075BL | 1 x 2 x 0.75 | 7.60 | 1.70 | 8.00 |
| 8180130130BL | 1 x 3 x 1.30 | 9.10 | 4.40 | 11.60 |
| 812010050.00 | 1 x 2 x 0.50 | 8.20 | 1.50 | 7.40 |
| 812010130.00 | 1 x 2 x 1.30 | 9.40 | 3.10 | 10.20 |
| 812010075.00 | 1 x 2 x 0.75 | 7.60 | 1.70 | 8.00 |
| 8180130130.00 | 1 x 3 x 1.30 | 9.10 | 4.40 | 11.60 |
| 812020050BL | 2 x 2 x 0.50 | 10.20 | 3.00 | 11.70 |
| 812020130BL | 2 x 2 x 1.30 | 11.70 | 6.20 | 16.10 |
| 812020075BL | 2 x 2 x 0.75 | 10.30 | 3.40 | 12.70 |
| 812020050.00 | 2 x 2 x 0.50 | 10.20 | 3.00 | 11.70 |
| 812020075.00 | 2 x 2 x 0.75 | 10.30 | 3.40 | 12.70 |
| 812020130.00 | 2 x 2 x 1.30 | 11.70 | 6.20 | 16.10 |
| 812040050BL | 4 x 2 x 0.50 | 11.00 | 5.00 | 14.00 |
| 812040130BL | 4 x 2 x 1.30 | 13.50 | 11.40 | 23.00 |
| 812040075BL | 4 x 2 x 0.75 | 11.60 | 6.40 | 16.80 |
| 812040050.00 | 4 x 2 x 0.50 | 11.00 | 5.00 | 14.00 |
| 812040130.00 | 4 x 2 x 1.30 | 13.50 | 11.40 | 23.00 |
| 812040075.00 | 4 x 2 x 0.75 | 11.60 | 6.40 | 16.80 |
| 812080050BL | 8 x 2 x 0.50 | 13.80 | 9.00 | 21.50 |
| 812080130BL | 8 x 2 x 1.30 | 17.10 | 21.80 | 37.70 |
| 812080075BL | 8 x 2 x 0.75 | 14.20 | 12.40 | 26.40 |
| 812080050.00 | 8 x 2 x 0.50 | 13.80 | 9.00 | 21.50 |
| 812080130.00 | 8 x 2 x 1.30 | 17.10 | 21.80 | 37.70 |
| 812080075.00 | 8 x 2 x 0.75 | 14.20 | 12.40 | 26.40 |
| 812100050BL | 10 x 2 x 0.50 | 14.60 | 11.00 | 22.00 |
| 812100050.00 | 10 x 2 x 0.50 | 14.60 | 11.00 | 22.00 |
| 812120050BL | 12 x 2 x 0.50 | 15.70 | 13.00 | 28.00 |
| 812120130BL | 12 x 2 x 1.30 | 19.30 | 32.20 | 52.00 |
| 812120075BL | 12 x 2 x 0.75 | 16.50 | 18.40 | 35.60 |
| 812120075.00 | 12 x 2 x 0.75 | 16.50 | 18.40 | 35.60 |
| 812120050.00 | 12 x 2 x 0.50 | 15.70 | 13.00 | 28.00 |
| 812120130.00 | 12 x 2 x 1.30 | 19.30 | 32.20 | 52.00 |
| 812160050BL | 16 x 2 x 0.50 | 17.50 | 17.00 | 35.20 |
| 812160130BL | 16 x 2 x 1.30 | 22.00 | 42.60 | 65.60 |
| 812160075BL | 16 x 2 x 0.75 | 18.50 | 24.40 | 44.80 |
| 812160075.00 | 16 x 2 x 0.75 | 18.50 | 24.40 | 44.80 |
| 812160050.00 | 16 x 2 x 0.50 | 17.50 | 17.00 | 35.20 |
| 812160130.00 | 16 x 2 x 1.30 | 22.00 | 42.60 | 65.60 |
| 812200050BL | 20 x 2 x 0.50 | 18.50 | 21.00 | 38.50 |
| 812200050.00 | 20 x 2 x 0.50 | 18.50 | 21.00 | 38.50 |
| 812240050BL | 24 x 2 x 0.50 | 20.20 | 25.00 | 46.80 |
| 812240130BL | 24 x 2 x 1.30 | 26.50 | 68.40 | 95.20 |
| 812240075BL | 24 x 2 x 0.75 | 21.80 | 36.40 | 62.00 |
| 812240075.00 | 24 x 2 x 0.75 | 21.80 | 36.40 | 62.00 |
| 812240050.00 | 24 x 2 x 0.50 | 20.20 | 25.00 | 46.80 |
| 812240130.00 | 24 x 2 x 1.30 | 26.50 | 68.40 | 95.20 |
| 812360050BL | 36 x 2 x 0.50 | 24.00 | 37.00 | 65.60 |
| 812360050.00 | 36 x 2 x 0.50 | 24.00 | 37.00 | 65.60 |
| 812480050BL | 48 x 2 x 0.50 | 27.40 | 49.00 | 85.40 |
| 812480050.00 | 48 x 2 x 0.50 | 27.40 | 49.00 | 85.40 |
