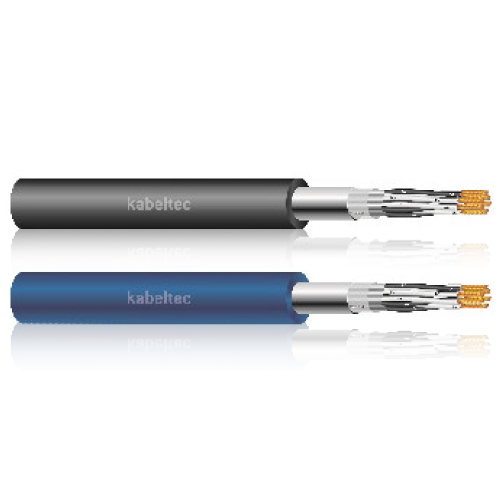

RE2Y(ST)Y-PIMF

Computer Cable with static screen

Size
UOM

QUANTITY

TOTAL PRICE

SGD 0.00

Computer cables are employed in process control and data processing systems to ensure optimum data transmission at a mean transmission rate of up to 200 kbits/s. Adjusted twist lengths of pairs ensure enhanced crosstalk attenuation. Low mutual capacitance and attenuation allow extended transmission distances and short pulse times to be realized. The static screen protects the pairs against external electrical interference. Computer cable with reinforced outer sheath can be used for fixed installation in dry and moist rooms, as well as for outdoor and underground installation

Construction:

Outer sheath PVC reinforced, sheath wall thinness according to VDE 0816, series 1, black
Colours of pairs: core a: black / core b: white / with number coding: 1/1, 2/2, etc.
(Multi-pair vision) static screen of plastic laminated metal foil with multi wire tinned copper tracer strand (7 x 0,30 mm) underneath the metal foil
Cores twisted to pairs, pairs twisted in layers with a 0,5 mm² communication core

Technical Data:

Conductor Material	Copper, bare
Conductor class	a black / core b: white / with number coding: 1/1, 2/2, etc.
Core insulation	PE
Core identification	–
Stranding	Cores twisted to pairs, pairs twisted in layers
Outer sheath	PVC
Sheath colour	Black (RAL 9005) or blue (RAL 5015)
Rated voltage [V]	300
Testing voltage [V]	Core/core 2000 V; core/screen 600
Conductor resistance	0,5 mm²: Max. 39,2 Ω/km 1,3 mm²: Max. 14,3 Ω/km
Insulation resistance	5 GΩ x km
Current carrying capacity	–
Min. bending radius fixed [xd]	7,5 x d
Min. bending radius moved [xd]	15 x d
Working temp fixed min/max [C]	-40°C up to +80°C Temp at conductor max.
Burning behaviour	EC 60332-1 and VDE 0472
Approvals	EN 50288-7

PART NUMBER	CORES	OUTER DIAMETER	COPPER WEIGHT KG/100M	WEIGHT KG/100M
813020050.00	2 x 2 x 0.50 SW	12.00	3.50	12.80
813020130.00	2 x 2 x 1.30 SW	12.70	6.80	18.40
813020130BL	2 x 2 x 1.30 BL	12.70	6.80	18.40
813020050BL	2 x 2 x 0.50 BL	12.00	3.50	12.80
813040050.00	4 x 2 x 0.50 SW	12.70	6.00	16.50
813040130.00	4 x 2 x 1.30 SW	15.20	12.40	26.50
813040050BL	4 x 2 x 0.50 BL	12.70	6.00	16.50
813040130BL	4 x 2 x 1.30 BL	15.20	12.40	26.50
813080050.00	8 x 2 x 0.50 SW	14.90	12.10	24.00
813080130.00	8 x 2 x 1.30 SW	18.80	23.90	43.80
813080050BL	8 x 2 x 0.50 BL	14.90	12.10	24.00
813080130BL	8 x 2 x 1.30 BL	18.80	23.90	43.80
813100050.00	10 x 2 x 0.50	16.50	13.60	25.50
813100050BL	10 x 2 x 0.50 BL	16.50	13.60	25.50
813120050.00	12 x 2 x 0.50 SW	17.60	16.10	34.50
813120130.00	12 x 2 x 1.30 SW	21.40	35.30	59.00
813120050BL	12 x 2 x 0.50 BL	17.60	16.10	34.50

813020050	2 x 2 x 0.50 SW	12	3.5	12.8
813020130	2 x 2 x 1.30 SW	12.7	6.8	18.4
813020130BL	2 x 2 x 1.30 BL	12.7	6.8	18.4
813020050BL	2 x 2 x 0.50 BL	12	3.5	12.8
813040050	4 x 2 x 0.50 SW	12.7	6	16.5
813040130	4 x 2 x 1.30 SW	15.2	12.4	26.5
813040050BL	4 x 2 x 0.50 BL	12.7	6	16.5
813040130BL	4 x 2 x 1.30 BL	15.2	12.4	26.5
813080050	8 x 2 x 0.50 SW	14.9	12.1	24
813080130	8 x 2 x 1.30 SW	18.8	23.9	43.8
813080050BL	8 x 2 x 0.50 BL	14.9	12.1	24
813080130BL	8 x 2 x 1.30 BL	18.8	23.9	43.8
813100050	10 x 2 x 0.50	16.5	13.6	25.5
813100050BL	10 x 2 x 0.50 BL	16.5	13.6	25.5
813120050	12 x 2 x 0.50 SW	17.6	16.1	34.5
813120130	12 x 2 x 1.30 SW	21.4	35.3	59
813120050BL	12 x 2 x 0.50 BL	17.6	16.1	34.5
813120130	12 x 2 x 1.30 BL	21.4	35.3	59
813160050	16 x 2 x 0.50 SW	19.8	21.2	42
813160130BL	16 x 2 x 1.30 BL	24.7	46.8	78.5
813160050BL	16 x 2 x 0.50 BL	19.8	21.2	42
813160130	16 x 2 x 1.30 SW	24.7	46.8	78.5
813200050BL	20 x 2 x 0.50 BL	21.2	26.2	48
813200050	20 x 2 x 0.50 SW	21.2	26.2	48
813240050BL	24 x 2 x 0.50 BL	23.6	31.3	59
813240130	24 x 2 x 1.30 SW	29.4	69.7	110
813240050BL	24 x 2 x 1.30 BL	29.4	69.7	110
813240050	24 x 2 x 0.50 SW	23.6	31.3	59
813360050	36 x 2 x 0.50 SW	26.9	46.5	83
813360050BL	36 x 2 x 0.50 BL	26.9	46.5	83
813480050BL	48 x 2 x 0.50 BL	32.2	61.6	110
813480050	48 x 2 x 0.50 SW	32.2	61.6	110
