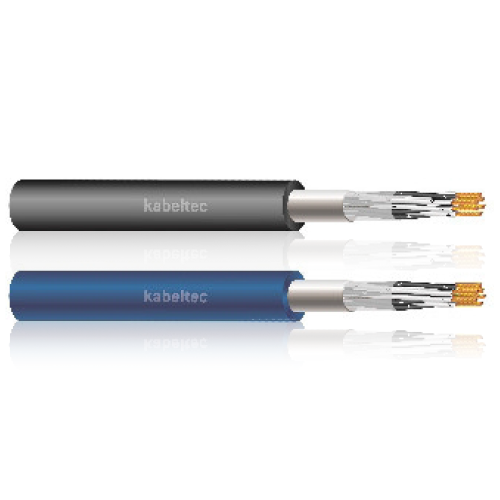

RE2X(ST)H

Application

• Fine strands of bare copper wire 0,5 mm2 = 7 x 0,30 mm / 1,3 mm2 = 7 x 0,49 mm
• XLPE-insulated cores
• (Multi-pair vision) static screen of plastic laminated metal foil with multi wire tinned copper tracer strand (7 x 0,30 mm) underneath the metal foil
• Cores twisted to pairs, pairs twisted in layers with a 0,5 mm² communication core
• Core colours of pairs: core a: black / core b: white / with number coding: 1/1, 2/2, etc.
• Outer sheath LSZH reinforced, sheath wall thinness according to VDE 0816, series 1, black or blue
• Outer sheath: self-extinguishing, flame-retardant

Technical Data:
Conductor Material: Copper, bare
Conductor class: Class 2
Core insulation: XLPE
Core identification: Core A: Black, core B: white;
Triple: core A: white, core white, core B: red, core C:
black, core A and C with numerals
Stranding: Cores twisted to pairs, pairs twisted in layers
Outer sheath: halogen free compound
Sheath colour: Black (RAL 9005) or blue (RAL 5015)
Rated voltage [V]: 300
Testing voltage [V]: Core/core 2000 V
Conductor resistance: 0,5 mm²: max. 36,7 Ω/km;
0,75mm²: max. 25,0 Ω/km;
1,0mm²: max. 18,5 Ω/km;
1,3 mm²: max. 14,3 Ω/km
Insulation resistance: 5 GΩ x km
Current carrying capacity: –
Min. bending radius fixed [xd]: 7,5 x d
Min. bending radius moved [xd]:-
Working temp fixed min/max [C] :-30°C up to +70°C
Working temp moved min/mac [C]: -5°C up to +50°C
