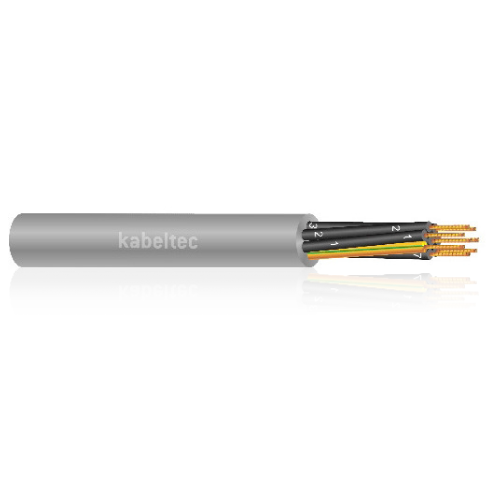

PVC MULTI CORE FLEXIBLE CABLE FLEX‑JZ/OZ

Flexible control cable, number coded

SGD 0.00
TOTAL PRICE

SGD 0.00

Used as connecting cable, as measuring, checking and control cable in machine tool manufacturing, plant engineering and on assembly lines and production lines to meet stringent safety requirements. Suitable for fixed installation or flexible applications with unrestricted mobility without forced movement control and without exposure to tensile load. Installation in dry and moist rooms; outdoor installation not permitted. Good chemical resistance, largely oil resistant. In energy supply chains for process paths up to 5m and 0.2 … 1 million bending cycles, for the following dimensions: 0.5 to 2.5mm² and 2 to 7 cores

CONSTRUCTION:

  • Fine strands of bare copper conductor
  • PVC core insulation black with continuous white figure imprint
  • Stranding acc. to VDE 0295 class 5
  • Earth conductor green/yellow in other layer
  • PVC outer sheath grey, RAL 7001

TECHNICAL DATA:

Conductor Material: Copper, bare
Conductor class: Class 5 accordingDIN VDE 0295, resp. IEC 60228
Core insulation: PVC
Core identification: According DIN VDE 0293 black cores with white numerals
Stranding: Cores twisted in layers
Outer sheath: PVC
Sheath colour: Grey, RAL 7001
Rated voltage [V]: 300/500
Testing voltage [V]: 4000
Conductor resistance: DIN VDE 0295, resp. IEC 60228
Insulation resistance: > 20 MΩ x km
Current carrying capacity: DIN VDE (see technical data)
Min. bending radius fixed [xd]: 4 x d
Min. bending radius moved [xd]: 15 x d
Working temp fixed min/max [C]: -40°C up to +80°C
Working temp moved min/mac [C]: -15°C up to +70°C
Temp at conductor max.: + 70°C in operation, +150°C in case of short-circuit
Burning behaviour: IEC 60332-1: flame-retardant and self-extinguishing
Approvals: EN 50525-2-11

FLEX-OZ

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
10800100 80 x 1 28.20 76.80 135.40
10800150 80 x 1.50 33.00 115.20 189.00
101000050 100 x 0.50 29.00 48.00 98.00
101000100 100 x 1 31.90 96.00 164.40
101000150 100 x 1.50 38.20 144.00 235.00

FLEX-JZ

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
101000075 100 x 0.75 31.40 72.00 132.00
101000250 100 x 2.50 46.00 240.00 445.00

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
10020050.00 2 x 0.50 OZ 4.80 0.96 3.50
10020075.00 2 x 0.75 OZ 5.40 1.44 4.50
10020100.00 2 x 1 OZ 5.70 1.92 5.30
10020150.00 2 x 1.50 OZ 6.30 2.88 6.80
10020250.00 2 x 2.50 OZ 7.50 4.80 10.10
10020400.00 2 x 4 OZ 9.90 7.68 18.50
10030050.00 3 x 0.50 5.10 1.44 4.20
10030075.00 3 x 0.75 5.70 2.16 5.50
99030075.00 3 x 0.75 OZ 5.70 2.16 5.50
10030100.00 3 x 1 6.00 2.88 6.50
99030100.00 3 x 1 OZ 6.00 2.88 6.50
99030050.00 3 x 0.50 OZ 5.10 1.44 4.20
99030150.00 3 x 1.50 OZ 6.70 4.32 8.40
10030150.00 3 x 1.50 6.70 4.32 8.40
10030250.00 3 x 2.50 8.10 7.20 13.20
99030250.00 3 x 2.50 OZ 8.30 7.20 14.80
10030400.00 3 x 4 9.90 11.52 20.10
10030600.00 3 x 6 11.70 17.28 28.90
10031000.00 3 x 10 14.70 28.80 68.20
10031600.00 3 x 16 20.00 46.08 82.70
10033500.00 3 x 35 25.90 100.80 158.50
10035000.00 3 x 50 31.50 144.00 255.00
10040050.00 4 x 0.50 5.70 1.92 5.40
10040075.00 4 x 0.75 6.20 2.88 6.60
99040075.00 4 x 0.75 OZ 6.20 2.88 6.60
10040100.00 4 x 1 6.50 3.84 7.90
99040100.00 4 x 1 OZ 6.50 3.84 7.90
99040050.00 4 x 0.50 OZ 5.70 1.92 5.40
10040150.00 4 x 1.50 7.20 5.76 10.40
99040150.00 4 x 1.50 OZ 7.20 5.76 10.40
99040250.00 4 x 2.50 OZ 8.90 9.60 16.30
10040250.00 4 x 2.50 8.90 9.60 16.30
10040400.00 4 x 4 10.80 15.36 24.90
10040600.00 4 x 6 13.00 23.04 36.50
10041000.00 4 x 10 16.30 38.40 73.70
10020050 2 x 0.50 OZ 4.80 0.96 3.50
10020075 2 x 0.75 OZ 5.40 1.44 4.50
10020100 2 x 1 OZ 5.70 1.92 5.30
10020150 2 x 1.50 OZ 6.30 2.88 6.80
10020250 2 x 2.50 OZ 7.50 4.80 10.10
10020400 2 x 4 OZ 9.90 7.68 18.50
10030050 3 x 0.50 5.10 1.44 4.20
10030075 3 x 0.75 5.70 2.16 5.50
99030075 3 x 0.75 OZ 5.70 2.16 5.50
10030100 3 x 1 6.00 2.88 6.50
99030100 3 x 1 OZ 6.00 2.88 6.50
99030050 3 x 0.50 OZ 5.10 1.44 4.20
99030150 3 x 1.50 OZ 6.70 4.32 8.40
10030150 3 x 1.50 6.70 4.32 8.40
10030250 3 x 2.50 8.10 7.20 13.20
99030250 3 x 2.50 OZ 8.30 7.20 14.80
10030400 3 x 4 9.90 11.52 20.10
10030600 3 x 6 11.70 17.28 28.90
10031000 3 x 10 14.70 28.80 68.20
10031600 3 x 16 20.00 46.08 82.70
10033500 3 x 35 25.90 100.80 158.50
10035000 3 x 50 31.50 144.00 255.00
10040050 4 x 0.50 5.70 1.92 5.40
10040075 4 x 0.75 6.20 2.88 6.60
99040075 4 x 0.75 OZ 6.20 2.88 6.60
10040100 4 x 1 6.50 3.84 7.90
99040100 4 x 1 OZ 6.50 3.84 7.90
99040050 4 x 0.50 OZ 5.70 1.92 5.40
10040150 4 x 1.50 7.20 5.76 10.40
99040150 4 x 1.50 OZ 7.20 5.76 10.40
99040250 4 x 2.50 OZ 8.90 9.60 16.30
10040250 4 x 2.50 8.90 9.60 16.30
10040400 4 x 4 10.80 15.36 24.90
10040600 4 x 6 13.00 23.04 36.50
10041000 4 x 10 16.30 38.40 73.70
10041000 4 x 16 20.60 61.44 108.70
10042500 4 x 25 25.70 96.00 158.20
10043500 4 x 35 27.20 134.40 210.60
10045000 4 x 50 36.70 192.00 296.30
10050050 5 x 0.50 6.20 2.40 6.30
99050050 5 x 0.50 OZ 6.20 2.40 6.30
10050075 5 x 0.75 6.70 3.60 7.90
99050075 5 x 0.75 OZ 6.70 3.60 7.90
99050100 5 x 1 OZ 7.10 4.80 9.40
10050100 5 x 1 7.10 4.80 9.40
99050150 5 x 1.50 OZ 8.10 7.20 12.80
10050150 5 x 1.50 8.10 7.20 12.80
10050250 5 x 2.50 10.00 12.00 20.00
99050250 5 x 2.50 OZ 10.00 12.00 20.00
10050400 5 x 4 12.10 19.20 29.40
10050600 5 x 6 14.50 28.80 44.70
10051000 5 x 10 18.20 48.00 91.40
10051600 5 x 16 22.40 76.80 137.00
10052500 5 x 25 28.70 120.00 199.80
10053500 5 x 35 34.70 168.00 248.50
10055000 5 x 50 37.00 240.00 393.60
10060050 6 x 0.50 6.90 2.90 7.50
10060075 6 x 0.75 7.50 4.32 10.80
99060075 6 x 0.75 OZ 7.50 4.32 10.80
10060100 6 x 1 8.00 5.80 11.30
10060150 6 x 1.50 8.40 8.60 15.70
10070050 7 x 0.50 7.00 3.40 8.10
99070050 7 x 0.50 OZ 7.00 3.40 8.10
10070075 7 x 0.75 7.80 5.00 10.10
99070075 7 x 0.75 OZ 7.80 5.00 10.10
99070100 7 x 1 OZ 8.50 6.70 12.60
10070100 7 x 1 8.50 6.70 12.60
99070150 7 x 1.50 OZ 9.60 10.10 16.60
10070150 7 x 1.50 9.60 10.10 16.60
10070250 7 x 2.50 11.70 16.80 26.70
99070250 7 x 2.50 OZ 11.70 16.80 26.70
10070400 7 x 4 13.80 26.90 40.70
10070600 7 x 6 16.60 40.30 60.00
10071000 7 x 10 20.10 67.20 119.10
10071600 7 x 16 25.60 107.50 177.90
10072500 7 x 25 34.00 168.00 247.70
10080050 8 x 0.50 7.90 3.80 11.50
99080050 8 x 0.50 OZ 7.90 3.80 11.50
99080075 8 x 0.75 OZ 9.00 5.80 14.30
10080075 8 x 0.75 9.00 5.80 14.30
10080100 8 x 1 9.50 7.70 14.90
10080150 8 x 1.50 10.60 11.50 21.00
10080250 8 x 2.50 13.20 19.20 33.90
10090075 9 x 0.75 9.40 6.50 13.70
10090100 9 x 1 10.00 8.60 16.40
10090150 9 x 1.50 11.40 13.00 22.10
10100050 10 x 0.50 8.60 4.80 11.60
10100075 10 x 0.75 9.60 7.20 15.00
10100100 10 x 1 10.20 9.60 18.00
99100100 10 x 1 OZ 10.20 9.60 18.00
10100150 10 x 1.50 11.60 14.40 24.30
10100250 10 x 2.50 14.60 24.00 37.50
10110150 11 x 1.50 11.60 15.84 25.80
99120050 12 x 0.50 OZ 8.90 5.80 13.10
10120050 12 x 0.50 8.90 5.80 13.10
10120075 12 x 0.75 9.90 8.60 17.10
99120075 12 x 0.75 OZ 9.90 8.60 17.10
10120100 12 x 1 10.50 11.50 20.50
99120100 12 x 1 OZ 10.50 11.50 20.50
10120150 12 x 1.50 12.00 17.30 27.90
99120150 12 x 1.50 OZ 12.00 17.30 27.90
10120250 12 x 2.50 14.80 28.80 44.50
10120400 12 x 4 18.10 46.10 66.00
10140050 14 x 0.50 9.50 6.70 15.30
10140075 14 x 0.75 11.00 10.08 19.50
10140100 14 x 1 11.20 13.40 23.80
10140150 14 x 1.50 12.70 20.20 32.30
10140250 14 x 2.50 15.80 33.60 51.50
10150075 15 x 0.75 10.90 10.80 20.90
10160050 16 x 0.50 10.50 7.60 17.50
10160100 16 x 1 11.80 15.40 26.60
10160075 16 x 0.75 11.10 11.52 22.00
10160150 16 x 1.50 13.40 23.00 36.10
10160250 16 x 2.50 18.40 38.40 66.50
10180050 18 x 0.50 10.50 8.60 18.80
10180075 18 x 0.75 11.70 13.00 24.40
10180100 18 x 1 12.70 17.30 32.00
99180100 18 x 1 OZ 12.70 17.30 32.00
10180150 18 x 1.50 14.65 25.90 45.60
10180250 18 x 2.50 17.80 43.20 64.80
10190100 19 x 1 13.90 18.30 34.60
10190075 19 x 0.75 12.20 13.70 26.40
10190150 19 x 1.5 14.70 27.90 44.50
10200075 20 x 0.75 14.26 14.40 32.00
10200100 20 x 1 13.40 19.20 33.00
99200100 20 x 1 OZ 13.40 19.20 33.00
10200150 20 x 1.50 16.40 28.80 50.70
10200250 20 x 2.50 20.80 48.00 83.20
10210050 21 x 0.50 11.70 10.10 22.10
10210075 21 x 0.75 13.00 15.10 28.60
10210100 21 x 1 14.40 20.20 44.40
10210150 21 x 1.50 15.70 30.20 46.90
10210250 21 x 2.50 21.90 50.40 92.80
10250050 25 x 0.50 12.40 12.00 26.10
10250075 25 x 0.75 13.80 18.00 33.70
10250100 25 x 1 14.70 24.00 40.80
10250150 25 x 1.50 16.90 36.00 56.00
10250250 25 x 2.50 20.80 60.00 89.00
10270100 27 x 1.0 15.60 25.90 53.40
10270075 27 x 0.75 14.60 19.50 38.20
10270150 27 x 1.5 17.50 38.90 67.00
10300050 30 x 0.50 13.30 14.40 30.40
10320075 32 x 0.75 15.50 23.00 54.10
10320150 32 x 1.50 18.70 46.10 70.40
10340050 34 x 0.50 15.75 16.30 39.80
10340075 34 x 0.75 15.90 24.50 44.80
10340100 34 x 1 17.10 32.60 55.10
10340150 34 x 1.50 19.40 49.00 74.60
10340250 34 x 2.50 24.40 81.60 120.80
10370100 37 x 1 16.80 35.52 70.10
10370075 37 x 0.75 16.70 26.60 53.70
10370150 37 x 1.50 20.20 53.28 79.20
10400050 40 x 0.50 15.40 19.20 40.00
10400250 40 x 2.50 29.20 96.00 149.90
10410075 41 x 0.75 17.40 29.60 53.80
10410100 41 x 1 18.80 39.40 66.10
10410150 41 x 1.50 21.30 59.10 89.50
10420050 42 x 0.50 17.50 20.20 47.00
10420100 42 x 1 19.10 40.30 66.40
10420150 42 x 1.50 21.50 60.50 88.80
10420250 42 x 2.50 29.20 100.80 152.50
10500050 50 x 0.50 18.80 24.00 53.50
10500075 50 x 0.75 19.20 36.00 64.80
10500100 50 x 1 20.60 48.00 79.70
10500150 50 x 1.50 23.50 72.00 108.90
10500250 50 x 2.50 32.10 120.00 182.30
10520050 52 x 0.50 17.30 24.96 51.70
10560100 56 x 1 21.40 53.80 88.80
10610050 61 x 0.50 19.70 29.30 60.10
10610075 61 x 0.75 21.10 43.90 87.60
10610100 61 x 1 22.50 58.60 93.40
10610150 61 x 1.50 25.50 87.80 125.90
10610250 61 x 2.50 34.70 146.40 275.00
10650050 65 x 0.50 20.90 31.20 66.80
10650075 65 x 0.75 22.10 46.80 83.70
10650100 65 x 1 23.50 62.40 100.60
10650150 65 x 1.50 26.00 93.60 127.20
10800050 80 x 0.50 23.30 38.40 82.90
10800075 80 x 0.75 26.50 57.60 113.00
