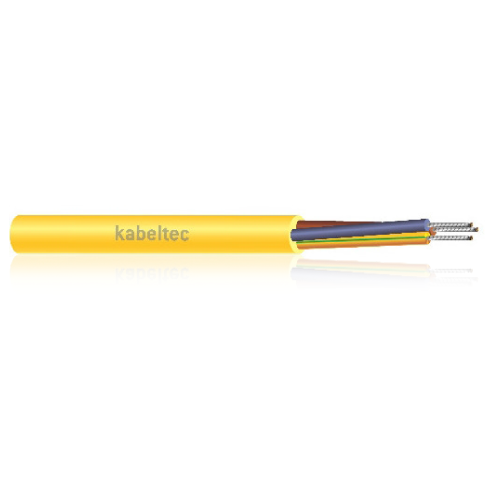

PU YELLOW

PUR control cable

TOTAL PRICE

SGD 0.00

Suitable for installation in dry, moist and wet rooms as well as for outdoor installation if exposed to harsh mechanical strain. Used for industrial plant requiring high chemical and abrasion resistance, impact strength and resistance to oil. Used as feed cable for hand-held electrical equipment, which is not in contact with hot parts or heat radiation, such as soldering and heating apparatus, drills, grinders, industrial and agricultural equipment, and on building sites. This cable is equally suitable for use as control cable in the steel, automotive and mining industry where cables are exposed to mineral oils or dragged over sharp edges, rough surfaces or metal chips.

Special characteristics:

  • Oil resistance
  • Weathering resistance
  • Hydrolysis resistance
  • Microbes resistance
  • High abrasion resistance

CONSTRUCTION:

  • Fine strands of bare copper wire
  • PVC core insulation
  • Stranding acc. to VDE 0295 class 5
  • Core marking: up to 5 cores colour coded according to VDE 0293; 7 cores and more black with printed consecutive number coding
  • Earth conductor green/yellow
  • Cores twisted in layers
  • PUR outer sheath, flame-retardant, yellow, RAL 1016

TECHNICAL DATA:

Conductor Material: Copper, bare
Conductor class: Class 5 acc. to DIN VDE 0295 or IEC 60228
Core insulation: PVC
Core identification:
Up to 5 cores colour coded according to VDE 0293 6 cores and more: black with printed consecutive number coding
Stranding: Cores twisted in layers
Outer sheath: PUR
Sheath colour: Yellow (RAL 1016)
Rated voltage [V]: 300/500
Testing voltage [V]: 3000
Conductor resistance:
Insulation resistance: > 20 MΩ x km
Current carrying capacity: DIN VDE (see technical guidelines)
Min. bending radius fixed [xd : 4 x d
Min. bending radius moved [xd]: 15 x d
Working temp fixed min/max [C]: -40°C up to +80°C
Working temp moved min/mac [C]: -5°C up to +70°C
Temp at conductor max.:
Burning behaviour: IEC 60332-1-2: flame-retardant and self-extinguishing
Approvals: VDE 0250/0285

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M
WEIGHT
KG/100M
29020075 2 x 0.75 5.4 1.44 4.4
29020050 2 x 0.50 5.1 0.96 4
29020100 2 x 1 8 1.92 8.2
29020150 2 x 1.50 6.5 2.88 6.8
29020250 2 x 2.50 8.2 4.8 11
29030075 3 x 0.75 5.8 2.16 5.3
29030050 3 x 0.50 5.4 1.44 5.5
29030100 3 x 1 8.4 2.9 8.9
29030150 3 x 1.50 9.3 4.3 12
29030250 3 x 2.50 10.8 7.2 18.6
29040050 4 x 0.50 6 1.9 6.5
29040075 4 x 0.75 6.4 2.88 6.4
29040100 4 x 1 6.9 3.84 7.5
29040250 4 x 1.50 10.1 5.8 16
29040250 4 x 2.50 9.4 9.6 18.3
29040400 4 x 4 12.5 15.4 29.1
29040600 4 x 6 13 23 46.8
29041000 4 x 10 16.2 38.4 72
29041600 4 x 16 18.8 61.4 106.3
29042500 4 x 25 29.4 96 159
29043500 4 x 35 32.8 134.4 220
29045000 4 x 50 38.9 192 240
29047000 4 x 70 44.7 268.8 440
29041600 4 x 95 59.6 364.8 600
29050075 5 x 0.75 7.1 3.6 7.6
29050100 5 x 1 7.7 4.8 8.9
29050050 5 x 0.50 6.5 2.4 7.5
29050150 5 x 1.50 10.9 7.2 17.9
29050250 5 x 2.50 13.6 12 28.3
29050400 5 x 4 14 19.2 35.5
29050600 5 x 6 14.5 28.8 57
29051000 5 x 10 18.1 48 89.4
29051600 5 x 16 23.6 76.8 140
29070075 7 x 0.75 7.8 5.04 9.6
29070100 7 x 1 8.8 6.72 11.5
29070050 7 x 0.50 7.2 3.36 9
29070150 7 x 1.50 9.4 10.1 17.3
29070250 7 x 2.50 11.5 16.8 29.3
29070400 7 x 4 15.4 26.9 50.3
29070600 7 x 6 16 40.3 80.8
29120050 12 x 0.50 9.3 5.76 13.5
29120075 12 x 0.75 10.4 8.64 17
29120100 12 x 1 11 11.5 20.1
29120150 12 x 1.50 12.8 17.3 27.3
29120250 12 x 2.50 15.7 28.8 51.2
29180050 18 x 0.50 10.8 8.64 20.5
29180075 18 x 0.75 12.4 13 26
29180100 18 x 1 13 17.3 28.9
29180150 18 x 1.50 15.2 25.9 45.4
29180250 18 x 2.50 18.7 43.2 74
29250050 25 x 0.50 13.2 12 27
29250075 25 x 0.75 15.1 18 32.4
29250100 25 x 1 16.9 24 38
29250150 25 x 1.50 18.5 36 64.1
29250250 25 x 2.50 24.1 60 94
29340075 34 x 0.75 17 24.5 47.5
29340100 34 x 1 18.3 32.6 64.5
29340150 34 x 1.50 20.8 49 94.5
29420150 42 x 1.50 23.5 60.5 110
29500150 50 x 1.50 24.2 72 125
