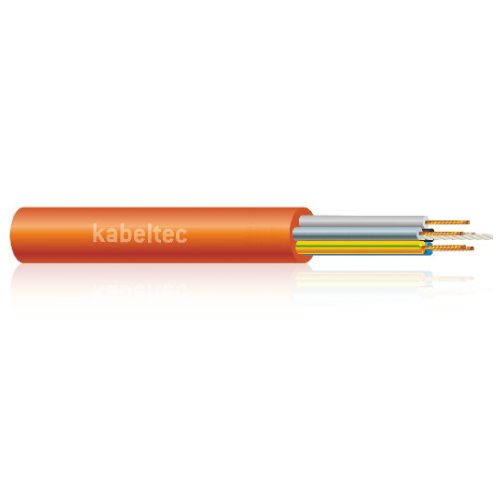

PU-Orange

PU Orange

PUR control cable
TOTAL PRICE

SGD 0.00

Suitable for installation in dry, moist and wet rooms as well as for outdoor installation if exposed to harsh mechanical strain. Used for industrial plant requiring high chemical and abrasion resistance, impact strength and resistance to oil. Used as feed cable for hand-held electrical equipment, which is not in contact with hot parts or heat radiation, such as soldering and heating apparatus, drills, grinders, industrial and agricultural equipment, and on building sites.

This cable is equally suitable for use as control cable in the steel, automotive and mining industry where cables are exposed to mineral oils or dragged over sharp edges, rough surfaces or metal chips.

Special characteristics:

  • Oil resistance
  • Weathering resistance
  • Hydrolysis resistance
  • Microbes resistance
  • High abrasion resistance

CONSTRUCTION:

  • Bare copper conductor
  • Stranding acc. to VDE 0295 class 5
  • PVC core insulation
  • Core marking: up to 5 cores colour coded according to VDE 0293; 7 cores and more black with printed consecutive number coding
  • Earth conductor green/yellow
  • Cores twisted in layers
  • PUR outer sheath, flame-retardant, orange, RAL 2003

TECHNICAL DATA:

Conductor Material: Copper, bare
Conductor class: Class 5 acc. to DIN VDE 0295 or IEC 60228
Core insulation: PVC
Core identification:
Up to 5 cores colour coded acc. to VDE 0293 7 cores and more: black with printed consecutive number
Stranding: Cores twisted in layers
Outer sheath: PUR
Outer sheath: PUR
Sheath colour: Orange
Rated voltage [V]: 300/500
Testing voltage [V]: 3000
Conductor resistance:
Insulation resistance: > 20 MΩ x km
Current carrying capacity: DIN VDE (see technical addendum)
Min. bending radius fixed [xd]: 4xd
Min. bending radius moved [xd]: 7.5xd
Working temp fixed min/max [C]: -50°C up to +80°C
Working temp moved min/mac [C]: -40°C up to +70°C
Temp at conductor max.:
Burning behaviour: IEC 60332-1: flame-retardant and self-extinguishing

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
27020075.00 2 x 0.75 OB 6.40 1.44 5.40
27020100.00 2 x 1 OB 7.20 1.92 6.40
27020150.00 2 x 1.50 OB 8.00 2.88 8.10
27020250.00 2 x 2.50 OB 9.80 4.80 11.50
27030075.00 3 x 0.75 7.00 2.16 6.40
27030100.00 3 x 1 7.60 2.88 7.70
27030150.00 3 x 1.50 8.70 4.32 10.53
27030250.00 3 x 2.50 10.90 7.20 17.32
27040075.00 4 x 0.75 7.60 2.88 7.90
27040100.00 4 x 1 8.50 3.84 9.10
27040150.00 4 x 1.50 9.60 5.76 13.50
27040250.00 4 x 2.50 11.60 9.60 20.70
27040400.00 4 x 4 13.60 15.36 28.00
27040600.00 4 x 6 15.50 23.04 38.60
27041000.00 4 x 10 20.50 38.40 62.00
27050075.00 5 x 0.75 8.50 3.60 10.00
27050100.00 5 x 1 9.20 4.80 12.00
27050150.00 5 x 1.50 10.80 7.20 17.00
27050250.00 5 x 2.50 13.20 12.00 26.00
27050400.00 5 x 4 14.80 19.20 34.80
27050600.00 5 x 6 17.00 28.80 48.50
27051000.00 5 x 10 22.80 48.00 74.50
27070100.00 7 x 1 10.80 6.72 14.00
27070150.00 7 x 1.50 12.90 10.04 25.00
27070250.00 7 x 2.50 15.40 16.80 37.00
