Suitable for automated production processes where data transmission cables of high flexibility are required, also for use in drag chains and where fast and abrupt movements exist.

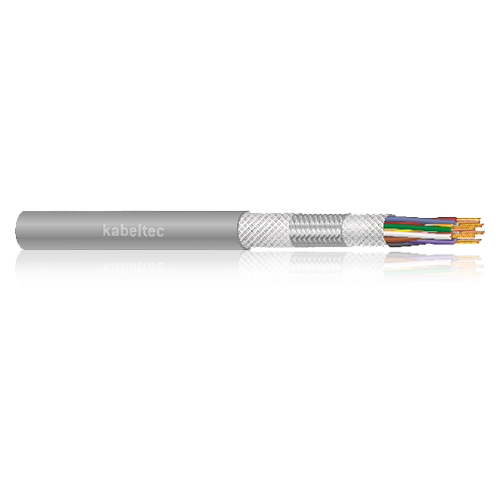

PU-EF-CP (TP) Data -cables
High flexible screened
- CONSTRUCTION:
- Superfine strands of plain copper conductor
- TPE core insulation, cores in several colours acc. to DIN colour code 47100
- Cores twisted to pairs
- Pairs twisted in layers
- Textile wrapped
- Tinned copper screen braiding
- PUR outer sheath grey, RAL 7001 as per VDE 0207
- Microbe-resistant
- Hydrolysis resistant
- Flame-retardant
Technical Data:
| Conductor Material: | Bare copper |
| Conductor class: | Class 6 |
| Core insulation: | TPE |
| Core identification: | DIN 47100 |
| Stranding: | Cores twisted to pairs, pairs twisted in layers |
| Outer sheath: | PUR |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 250 |
| Testing voltage [V]: | 1500 |
| Conductor resistance: | |
| Insulation resistance: | ≥ 20 MΩ x km |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 7.5 x d |
| Working temp fixed min/max [C]: | -40°C up to +80°C |
| Working temp moved min/mac [C]: | -40°C up to +80°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals: |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 278010025.00 | 1 x 2 x 0.25 | 4.90 | 1.40 | 2.80 |
| 278010034.00 | 1 x 2 x 0.34 | 5.30 | 2.00 | 3.60 |
| 278010050.00 | 1 x 2 x 0.50 | 6.50 | 2.20 | 4.90 |
| 278010075.00 | 1 x 2 x 0.75 | 7.10 | 3.40 | 6.40 |
| 278010100.00 | 1 x 2 x 1 | 7.50 | 4.20 | 7.40 |
| 278020025.00 | 2 x 2 x 0.25 | 7.00 | 3.20 | 6.30 |
| 278020034.00 | 2 x 2 x 0.34 | 7.00 | 3.50 | 8.10 |
| 278020014.00 | 2 x 2 x 0.14 | 5.80 | 2.00 | 4.20 |
| 278020050.00 | 2 x 2 x 0.50 | 9.50 | 5.00 | 10.20 |
| 278020075.00 | 2 x 2 x 0.75 | 9.80 | 6.00 | 11.80 |
| 278020100.00 | 2 x 2 x 1 | 10.60 | 7.30 | 12.80 |
| 278030025.00 | 3 x 2 x 0.25 | 7.60 | 3.84 | 7.40 |
| 278030034.00 | 3 x 2 x 0.34 | 7.20 | 4.50 | 10.10 |
| 278030014.00 | 3 x 2 x 0.14 | 6.20 | 2.60 | 5.30 |
| 278030050.00 | 3 x 2 x 0.50 | 10.40 | 7.18 | 13.40 |
| 278030075.00 | 3 x 2 x 0.75 | 11.10 | 8.57 | 15.30 |
| 278030100.00 | 3 x 2 x 1 | 13.70 | 9.36 | 16.70 |
| 278040025.00 | 4 x 2 x 0.25 | 8.30 | 4.32 | 8.70 |
| 278040034.00 | 4 x 2 x 0.34 | 8.00 | 5.30 | 11.90 |
| 278040014.00 | 4 x 2 x 0.14 | 6.70 | 3.00 | 5.90 |
| 278040050.00 | 4 x 2 x 0.50 | 11.50 | 7.44 | 15.20 |
| 278040075.00 | 4 x 2 x 0.75 | 11.60 | 9.36 | 17.80 |
| 278040100.00 | 4 x 2 x 1 | 12.30 | 11.78 | 20.90 |
| 278050025.00 | 5 x 2 x 0.25 | 9.30 | 5.15 | 10.60 |
| 278050034.00 | 5 x 2 x 0.34 | 8.50 | 6.40 | 14.90 |
| 278050014.00 | 5 x 2 x 0.14 | 7.20 | 3.70 | 7.50 |
| 278050050.00 | 5 x 2 x 0.50 | 11.80 | 8.45 | 16.50 |
| 278050075.00 | 5 x 2 x 0.75 | 12.80 | 11.30 | 20.30 |
| 278050100.00 | 5 x 2 x 1 | 13.70 | 13.90 | 24.10 |
| 278060025.00 | 6 x 2 x 0.25 | 10.10 | 7.18 | 13.40 |
| 278060034.00 | 6 x 2 x 0.34 | 9.40 | 7.40 | 16.50 |
| 278060014.00 | 6 x 2 x 0.14 | 7.80 | 4.90 | 9.10 |
| 278060050.00 | 6 x 2 x 0.50 | 12.90 | 9.96 | 19.70 |
| 278060075.00 | 6 x 2 x 0.75 | 13.70 | 13.04 | 23.50 |
| 278080025.00 | 8 x 2 x 0.25 | 11.40 | 7.44 | 15.10 |
| 278080034.00 | 8 x 2 x 0.34 | 10.20 | 9.00 | 22.10 |
| 278080014.00 | 8 x 2 x 0.14 | 8.30 | 5.50 | 10.90 |
| 278080050.00 | 8 x 2 x 0.50 | 15.90 | 14.43 | 28.90 |
| 278080075.00 | 8 x 2 x 0.75 | 16.70 | 19.22 | 34.70 |
| 278100025.00 | 10 x 2 x 0.25 | 12.50 | 9.00 | 18.80 |
| 278100034.00 | 10 x 2 x 0.34 | 11.40 | 11.00 | 27.40 |
| 278100014.00 | 10 x 2 x 0.14 | 9.30 | 6.00 | 12.00 |
| 278100050.00 | 10 x 2 x 0.50 | 17.70 | 17.60 | 34.90 |
| 278100075.00 | 10 x 2 x 0.75 | 19.30 | 25.80 | 46.80 |
| 278140025.00 | 14 x 2 x 0.25 | 13.70 | 11.12 | 21.70 |
| 278140034.00 | 14 x 2 x 0.34 | 12.50 | 14.40 | 38.40 |
| 278140014.00 | 14 x 2 x 0.14 | 10.00 | 7.30 | 16.80 |
| 278140050.00 | 14 x 2 x 0.50 | 18.30 | 21.54 | 40.40 |
| 278140075.00 | 14 x 2 x 0.75 | 20.30 | 31.66 | 54.70 |
