Suitable in switch cabinets with high heat development for wiring and connection, in furnaces, heating devices, etc.

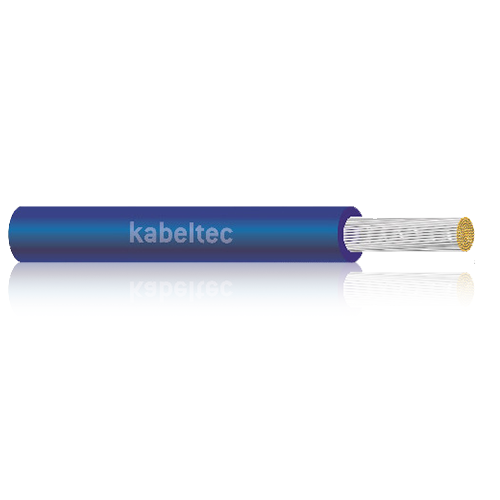

PTFE- single cores
CONSTRUCTION:
- Strands made of silver-plated copper wires
- PTFE core insulation
- Flame-retardant, oil-resistant and resistant to chemicals
- Multi-core: outer sheath black
TECHNICAL DATA:
| Conductor Material | Copper, silver-plated |
| Conductor class | Class 5 |
| Core insulation | PTFE |
| Core identification | VDE 0293 |
| Stranding | * |
| Outer sheath | * |
| Sheath colour | Black |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | 2500 |
| Conductor resistance | * |
| Insulation resistance | 2 GΩ x km |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 4 |
| Min. bending radius moved [xd] | 15 |
| Working temp fixed min/max [C] | -190°C up to +260 |
| Working temp moved min/mac [C] | -190°C up to +260 |
| Temp at conductor max | * |
| Burning behaviour | IEC 60332-1 |
| Approvals | * |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 53..0010 | AWG x 10 | 3.40 | 45.60 | 51.00 |
| 53..0012 | AWG x 12 | 2.80 | 29.60 | 35.00 |
| 53..0014 | AWG x 14 | 2.40 | 18.70 | 23.00 |
| 53..0016 | AWG x 16 | 2.00 | 11.80 | 16.00 |
| 53..0018/19 | AWG x 18 | 1.70 | 9.30 | 12.00 |
| 53..0018/7 | AWG x 18 | 1.70 | 8.60 | 12.00 |
| 53..0020/19 | AWG x 20 | 1.40 | 5.90 | 8.20 |
| 53..0020/7 | AWG x 20 | 1.40 | 5.40 | 7.70 |
| 53..0022/19 | AWG x 22 | 1.20 | 3.70 | 5.70 |
| 53..0022/7 | AWG x 22 | 1.20 | 3.40 | 5.40 |
| 53..0024/19 | AWG x 24 | 1.10 | 2.30 | 4.00 |
| 53..0024/7 | AWG x 24 | 1.10 | 2.20 | 3.80 |
| 53..0026/19 | AWG x 26 | 0.90 | 1.50 | 2.90 |
| 53..0026/7 | AWG x 26 | 0.90 | 1.40 | 2.70 |
| 53..0028 | AWG x 28 | 0.80 | 0.90 | 2.00 |
