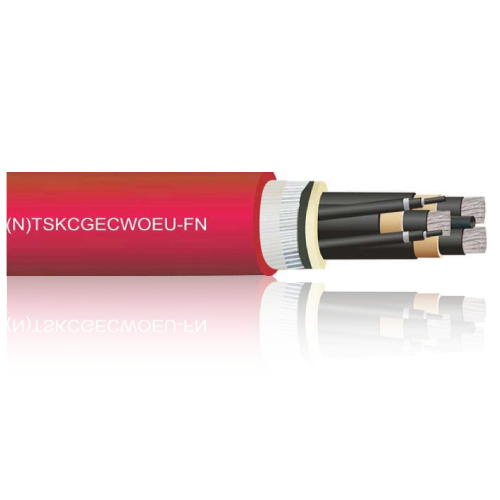

(N)TSKGECWOEU-FN

CONSTRUCTION:

– Control/protective conductor: Spirally applied concentric CuSn wires forming
control conductors around support element, EPR insulation and spirally applied
concentric CuSn wires to form protective conductor.
– Electrical field control: Inner and outer layers of semiconductive rubber
– Inner sheath: GM1b (acc. to DIN VDE 0207, Part 21)
– Core arrangement: Three power conductors laid-up with double concentric
control/protective conductor elements in the outer interstices, with optimised lay
length.
– Signal/monitoring conductor: Spirally applied FeZn and CuSn wires in a vulcanized
bond between inner and outer sheath.
– Standard: based on DIN VDE 0250 p. 813

TECHNICAL DATA:

Conductor Material: *
Conductor class: Finely stranded class 5 (EN 60228, DIN VDE 0295) tinned,
electrolytic copper.
Core insulation: EPR compound with improved electrical and mechanical
characteristics (DN VDE 0207, Part 20)
Core identification: Natural colouring with black semiconductive rubber with
printed white numbers 1-3.
Stranding: *
Outer sheath: 5GM5 compund with improved mechanical
characteristics.
Sheath colour: Red
Rated voltage [V]: 3.6 / 6 k
Testing voltage [V]: 11 k
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: According to DIN VDE 0298, Part 4
Min. bending radius fixed [xd]: *
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]: -40°C up to +90
Working temp moved min/mac [C]: -25°C up to +80
Temp at conductor max: +90°C
Burning behaviour: *
Approvals: – Resistance to oil: EN 60811-2-1, IEC 60811-2-1
– Behaviour in case of fire: VDE 0482 Part 332-1-2, EN
60332-1-2, IEC 60332-1-2
– Weather resistance: Unrestricted use indoors, outdoors,
resistance to ozone, UV and moisture.
