Flexible medium voltage reeling cable for high and extreme mechanical stress, e.g.:
– torsional stress
– deflection and
– high reeling speed.
Other applications must be agreed otherwise there will be no warranty and use at your own risk.
(N)TSCGEWU_MT_PLUS
Medium voltage reeling cable

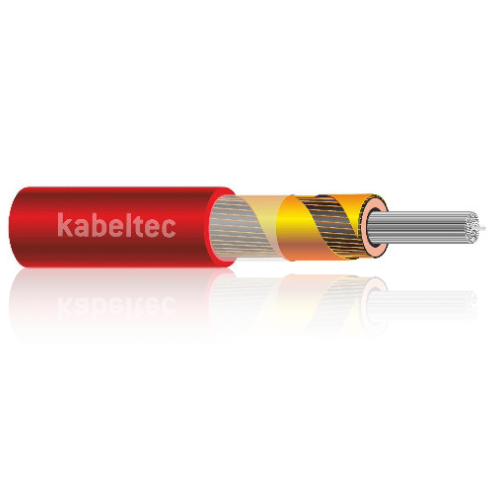

CONSTRUCTION:
– tinned copper conductors, class 5
– rubber core insulation
– inner and outer semiconduction rubber layer
– semiconductive compound on polyester support
– semiconductive tape.
– earth cores split in the outer interstices
– rubber inner sheath
– polyester braid
– rubber outer sheath, red
TECHNICAL DATA:
Conductor Material: tinned copper
Conductor class: Class 5
Core insulation: rubber 3GI3
Core identification:
Stranding:
Outer sheath: rubber 3GI3
Sheath colour: Red
Rated voltage [V]: 3.6/6 kV
6/10 kV
12/20 kV
Testing voltage [V]: 11k V to 29k
Conductor resistance:
Insulation resistance:
Current carrying capacity:
Min. bending radius fixed [xd]:
Min. bending radius moved [xd]: 15 x d
Working temp fixed min/max [C]: -40°C up to +80°C
Working temp moved min/mac [C]: -20°C up to +80°C
Temp at conductor max: +90°C
Burning behaviour: flame-retardant acc. to VDE0482-332-1-2/IEC 60332-1-2
Approvals: oil resistant acc. to EN 60811-404
ozone-resistant
VDE0250-813
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 3x50+ x 3x25/3 3,6/6kV | 47.7 | 168 | 352 | |
| 3x95+ x 3x50/3 3,6/6kV | 57.6 | 321.6 | 558 | |
| 3x185+ x 3x95/3 3,6/6kV | 70.2 | 624 | 940 | |
| 3x25+ x 3x25/3 6/10kV | 40.3 | 96 | 238 | |
| 3x35+ x 3x25/3 6/10kV | 44.6 | 124.8 | 292 | |
| 3x50+ x 3x25/3 6/10kV | 47.7 | 168 | 352 | |
| 3x70+ x 3x35/3 6/10kV | 51.6 | 235.2 | 443 | |
| 3x95+ x 3x50/3 6/10kV | 57.6 | 321.6 | 564 | |
| 3x120+ x 3x70/3 6/10kV | 61.4 | 412.8 | 683 | |
| 3x150+ x 3x70/3 6/10kV | 68.3 | 499.2 | 832 | |
| 3x185+ x 3x95/3 6/10kV | 70.2 | 624 | 950 | |
| 3x25+ x 3x25/3 12/20kV | 48.1 | 96 | 308 | |
| 630033500/3 | 3x35+ x 3x25/3 12/20kV | 50.6 | 124.8 | 346 |
| 630035000/3 | 3x50+ x 3x25/3 12/20kV | 55.5 | 168 | 431 |
| 3x70+ x 3x35/3 12/20kV | 59.3 | 235.2 | 531 | |
| 3x95+ x 3x50/3 12/20kV | 63.1 | 321.6 | 618 | |
| 6300312000/3 | 3x120+ x 3x70/3 12/20kV | 68.7 | 412.8 | 773 |
