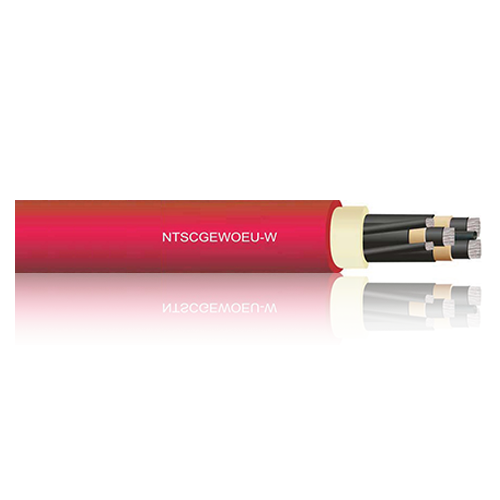

NTSCGEWOEU-W/3

CONSTRUCTION:

– Electrical field control: inner and outer layer of semiconductive rubber
– Core arrangement: three main conductors laid-up with protective-earth conductor
split into 3 in the outer interstices
– protective-earth conductor split into 3 in th eouter interstices
– Wrapping: semiconductive, reinforced, swellable, binding and separating tape
– Inner sheath: EPR compound type GM1b, waterproof (acc. to DIN VDE 0201, Part 21)

TECHNICAL DATA:

Conductor Material: Copper, tinned
Conductor class: finely stranded class 5 (EN 60228, DIN VDE 0295) tinned,
electrolytic copper.
Core insulation: EPR compound with improved electrical and mechanical
characteristics (DIN VDE 0207, Part 20).
Core identification: Natural colouring with black semiconductive rubber with
printed white digits 1-3.
Stranding: *
Outer sheath: 5GM5 compound with improved mechanical
characteristics (acc. to DIN VDE 0207, Part 21)
Sheath colour: Red
Rated voltage [V]: 3.6 / 6 k V to 18 /30 k
Testing voltage [V]: 11 k V up to 43 k
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: Acc. to DIN VDE 0298, Part 4
Min. bending radius fixed [xd]: Acc. to DIN VDE 0298, Part 3
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]: -40°C up to 90
Working temp moved min/mac [C]: -25°C up to 80
Temp at conductor max: +90°C
Burning behaviour: VDE 0482 Part 332-1-2, EN 60332-1-2, IEC 60332-1-2
Approvals: *
