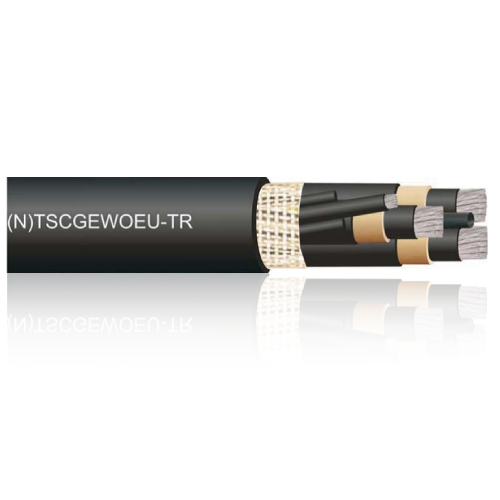

(N)TSCGEWOEU-TR

CONSTRUCTION:

– Protective-earth conductor: Very finely stranded class 6 (EN 60228, DIN VDE 0295)
tinned, electrolytic copper.
– Electrical field control: Inner and outer layers of semiconductive rubber.
– Core arrangement: Three main conductors laid-up with protective-earth conductor
split into 3 in the outer interstices.
– Reinforcement: Extremly tear-resistant reinforcing tape preventing sheath
movements and prtoecting from transverse and longitudinal stress.

TECHNICAL DATA:

Conductor Material: *
Conductor class: Finely stranded class 5 (EN 60228, DIN VDE 0295) tinned,
electrolytic copper.
Core insulation: EPR compound with improved electrical and mechanical
characteristics (DIN VDE 0207, Part 20)
Core identification: Natural colouring with black semiconductive rubber with
printed white numbers 1-3.
Stranding: *
Outer sheath: special EPR bades 5GM5 compound (acc. to DIN VDE 0207,
Part 20) with special tear- and abrasion resistance
characteristics, inner and outer sheath are inseparably
bonded.
Sheath colour: black
Rated voltage [V]: 3.6/6 kV 6/10 kV 8.7/15 kV 12/20 kV 14/25 kV 18/30 k
Testing voltage [V]: 11k V to 43k
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: *
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]: -40°C up to +90
Working temp moved min/mac [C]: -25°C up to +80
Temp at conductor max: +90°C
Burning behaviour: *
Approvals: *
