Flexible power supply cable for use in open-pit and underground mining facilities, a shipyards and docks for extremely high mechanical stresses during high travel speeds, multiple changes of direction into different planes, dynamic tensile loads etc. Cable designed mainly for large mobile equipment, excavators, container cranes etc.

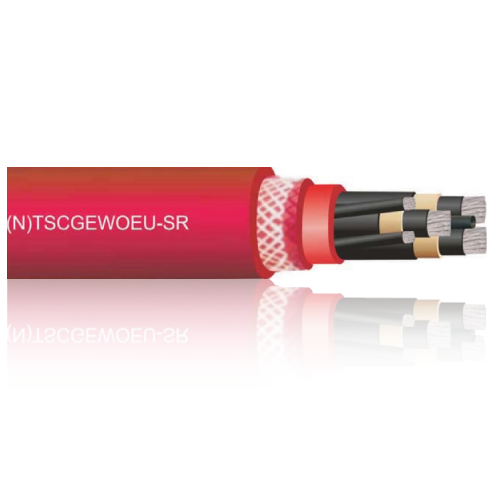

(N)TSCGEWOEU-SR
Medium voltage, flexible power supply cable for high speed reeling applications.
CONSTRUCTION:
– Electrical field control: Inner and outer layers of semiconductive rubber
– Core arrangement: Three main conductors laid-up with optimised lay length,
protective-earth conductor spilt into 3 in the outer interstices.
– Inner sheath: Special rubber compound, better than 5GM5 acting as a water
barrier.
– Anti-torsion reinforcement: Braid of polyamide threads in a vulcanized bond
between inner and double outer sheath being integral part of an outer sheath.
Protection from transverse and longitudinal stress.
TECHNICAL DATA:
Conductor Material: *
Conductor class: very finely stranded class 6 (EN 60228, DIN VDE 0295)
tinned, electrolytic copper.
Core insulation: EPR compound with improved electrical and mechanical
characteristics (DN VDE 0207, Part 20).
Core identification: Natural colouring with black semiconductive rubber with
printed white digits 1-3
Stranding: *
Outer sheath: Special double layer sheath made of 5GM5 compound,
water-, abrasion-, and tear-proof.
Sheath colour: Red
Rated voltage [V]: 3.6 / 6 k V to 18 / 30 k
Testing voltage [V]: 11k V to 43k
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: acc. to DIN VDE 0298, Part 3
Min. bending radius moved [xd]: 20 x d
Working temp fixed min/max [C]: -50°C up to +90
Working temp moved min/mac [C]: -35°C up to +80
Temp at conductor max: +90°C
Burning behaviour: *
Approvals: Resistance to oil: EN 60811-2-1, IEC 60811-2-1
Behaviour in case of fire: VDE 0482 Part 332-1-2, EN
60332-1-2, IEC 60332-1-2
Water compatability: HD 22.16 (VDE 0282 Part 16)
Weather resistance: Unrestricted use indoors, outdoors,
resistance to ozone, UV and moisture.
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 3 x 25 + 3x25/3 3.6/6 kV | 39.4 | 273 | ||
| 3 x 25 + 3x25/3 6/10 kV | 41.4 | 291.5 | ||
| 3 x 25 + 3x25/3 8.7/15 kV | 45 | 329 | ||
| 3 x 25 + 3x25/3 12/20 kV | 48.8 | 371.5 | ||
| 3 x 25 + 3x25/3 14/25 kV | 54.1 | 437 | ||
| 3 x 25 + 3x25/3 18/30 kV | 57.6 | 483 | ||
| 3 x 35 + 3x25/3 3.6/6 kV | 42.7 | 323 | ||
| 3 x 35 + 3x25/3 6/10 kV | 44.8 | 345 | ||
| 3 x 35 + 3x25/3 8.7/15 kV | 48.2 | 384 | ||
| 3 x 35 +3x25/3 12/20kV | 52.2 | 372 | ||
| 3 x 35 + 3x25/3 14/25 kV | 57.7 | 504 | ||
| 3 x 35 + 3x25/3 18/30 kV | 61.2 | 553 | ||
| 3 x 50 + 3x25/3 3.6/6 kV | 46 | 395.5 | ||
| 3 x 50 + 3x25/3 6/10 kV | 47.3 | 410 | ||
| 3 x 50 + 3x25/3 8.7/15 kV | 51.4 | 458.5 | ||
| 3 x 50 + 3x25/3 12/20 kV | 55.6 | 512 | ||
| 3 x 50 + 3x25/3 14/25 kV | 59.9 | 572 | ||
| 3 x 50 + 3x25/3 18/30 kV | 63.3 | 623 | ||
| 3 x 70 + 3x35/3 3.6/6 kV | 51.3 | 513 | ||
| 3 x 70 + 3x35/3 6/10 kV | 53.5 | 540 | ||
| 3 x 70 + 3x35/3 8.7/15 kV | 56.9 | 585.5 | ||
| 3 x 70 + 3x35/3 12/20 kV | 60.3 | 634 | ||
| 3 x 70 + 3x35/3 14/25 kV | 65.4 | 710 | ||
| 3 x 70 + 3x35/3 18/30 kV | 69.7 | 779 | ||
| 3 x 95 + 3x50/3 3.6/6 kV | 56.4 | 660 | ||
| 3 x 95 + 3x50/3 6/10 kV | 57.7 | 679 | ||
| 3 x 95 + 3x50/3 8.7/15 kV | 61.2 | 728 | ||
| 3 x 95 + 3x50/3 12/20 kV | 65.6 | 795 | ||
| 3 x 95 + 3x50/3 14/25 kV | 70.3 | 871.5 | ||
| 3 x 95 + 3x50/3 18/30 kV | 73.7 | 930 | ||
| 3 x 120 + 3x70/3 3.6/6 kV | 59.8 | 771.5 | ||
| 3 x 120 + 3x70/3 6/10 kV | 61.3 | 793 | ||
| 3 x 120 + 3x70/3 8.7/15 kV | 66 | 866.5 | ||
| 3 x 120 + 3x70/3 12/20 kV | 68.7 | 910 | ||
| 3 x 120 + 3x70/3 14/25 kV | 73.2 | 987 | ||
| 3 x 120 + 3x70/3 18/30 kV | 77.7 | 1066 | ||
| 3 x 150 + 3x70/3 3.6/6 kV | 65.3 | 909 | ||
| 3 x 150 + 3x70/3 6/10 kV | 66.6 | 930 | ||
| 3 x 150 + 3x70/3 8.7/15 kV | 70 | 986 | ||
| 3 x 150 + 3x70/3 12/20 kV | 73 | 1038 | ||
| 3 x 150 + 3x70/3 14/25 kV | 78.5 | 1138 | ||
| 3 x 150 + 3x70/3 18/30 kV | 82 | 1204 | ||
| 3 x 150 + 3x70/3 8.7/15 kV | 70 | 986 | ||
| 3 x 185 + 3x95/3 3.6/6 kV | 69.3 | 1015.5 | ||
| 3 x 185 + 3x95/3 6/10 kV | 70.6 | 1038 | ||
| 3 x 185 + 3x95/3 8.7/15 kV | 74.1 | 1098 | ||
| 3 x 185 + 3x95/3 12/20 kV | 78.7 | 1182 | ||
| 3 x 185 + 3x95/3 14/25 kV | 82.6 | 1257.5 | ||
| 3 x 185 + 3x95/3 18/30 kV | 86 | 1327 | ||
| 3 x 240 + 3x120/3 3.6/6 kV | 76.3 | 1279 | ||
| 3 x 240 + 3x120/3 6/10 kV | 78 | 1312 | ||
| 3 x 240 + 3x120/3 8.7/15 kV | 81.4 | 1377 | ||
| 3 x 240 + 3x120/3 12/20 kV | 84.8 | 1446 | ||
| 3 x 240 + 3x120/3 14/25 kV | 90.1 | 1556.5 | ||
| 3 x 240 + 3x120/3 18/30 kV | 93.6 | 1632 | ||
| 3 x 300 + 3x150/3 3.6/6 kV | 81.4 | 1531 | ||
| 3 x 300 + 3x150/3 6/10 kV | 83.9 | 1581 | ||
| 3 x 300 + 3x150/3 8.7/15 kV | 89.2 | 1689 | ||
| 3 x 300 + 3x150/3 12/20 kV | 91.2 | 1733 | ||
| 3 x 300 + 3x150/3 14/25 kV | 95.5 | 1830 | ||
| 3 x 300 + 3x150/3 18/30 kV | 99.9 | 1932 |
