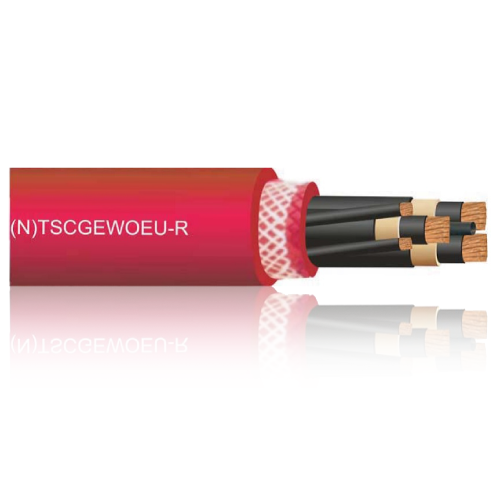

(N)TSCGEWOEU-R

CONSTRUCTION:

Electrical field control: Inner and outer layers of semiconductive rubber.
Core arrangement: Three main conductors laid-up with protective-earth conductor split into 3 in the outer interstices.
Inner sheath: Special EPR compound (acc. to DIN VDE 0207, Part 21)
Anti-torsion reinforcement: Braid of polyamide threads in a vulcanized bond between inner and outer sheath being integral part of an outer sheath. Protection from transverse and longitudinal stress.

TECHNICAL DATA:

Conductor Material: *
Conductor class: Very finely stranded class 6 (EN 60228, DIN VDE 0295) not
tinned, electrolytic copper.
Core insulation: EPR compound with improved electrical and mechanical
characteristics (DIN VDE 0207, Part 20).
Core identification: Natural colouring with black semiconductive rubber with
printed white numbers 1-3.
Stranding: *
Outer sheath: 5GM5 compund with improved mechanical characteristics
(acc. to DIN VDE 0207, Part 21), waterproof.
Sheath colour: Red
Rated voltage [V]: 3.6/6 kV
6/10 kV
8.7/15 kV
12/20 kV
14/25 kV
18/30 k
Testing voltage [V]: 11k V to 43k
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: *
Min. bending radius moved [xd]: 20 x d
Working temp fixed min/max [C]: -40°C up to +90
Working temp moved min/mac [C]: -25°C up to +80
Temp at conductor max: +90°C
Burning behaviour: *
Approvals: *
