For installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks. PE sheath is halogen-free, but not flame retardant. The water blocking tape avoids water propagation inside the cable.

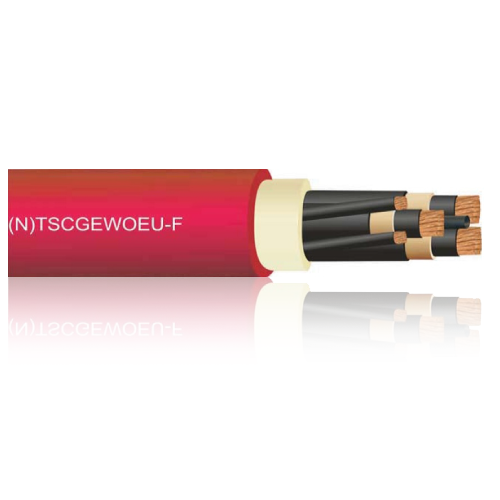

(N)TSCGEWOEU-F
Medium voltage cable
TECHNICAL DATA:
Conductor Material: copper, bare
Conductor class: Class 2
Core insulation: VPE
Core identification:
Stranding:
Outer sheath: PE
Sheath colour: Black
Rated voltage [V]: 6/10 (12) kV
12/20 (24) kV
18/30 (36) kV
Testing voltage [V]: 6/10 kV: 21 kV
12/20 kV: 42 kV
18/30 kV: 63 kV
Conductor resistance:
Insulation resistance:
Current carrying capacity: according to DIN VDE 0298, Part 4
Min. bending radius fixed [xd]: 15 x d
Min. bending radius moved [xd]:
Working temp fixed min/max [C]: +70°C
Working temp moved min/mac [C]: -20°C up to +70
Temp at conductor max: +90°C in operation +250°C in case of short circuit
Burning behaviour:
Approvals: VDE 0276-620
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 83013500/16 | 1 x 35 / 16 6/10 kV | 28 | 51.8 | 82 |
| 83013500/16 | 1 x 35 / 16 12/20 kV | 28 | 51.8 | 130 |
| 83015000/16 | 1 x 50 / 16 6/10 kV | 25 | 66.2 | 115 |
| 83015000/16 | 1 x 50 / 16 12/20 kV | 29 | 66.2 | 135 |
| 83015000/16 | 1 x 50 / 16 18/30 kV | 34 | 66.2 | 165 |
| 83017000/16 | 1 x 70 / 16 6/10 kV | 27 | 85.4 | 140 |
| 83017000/16 | 1 x 70 / 16 12/20 kV | 31 | 85.4 | 160 |
| 83017000/16 | 1 x 70 / 16 18/30 kV | 36 | 85.4 | 190 |
| 83019500/16 | 1 x 95 / 16 6/10 kV | 28 | 109.4 | 165 |
| 83019500/16 | 1 x 95 / 16 12/20 kV | 32 | 109.4 | 190 |
| 83019500/16 | 1 x 95 / 16 18/30 kV | 37 | 109.4 | 215 |
| 83019500/35 | 1 x 95 /35 6/10 kv | 29 | 130.6 | 161.7 |
| 830112000/16 | 1 x 120 / 16 6/10 kV | 30 | 133.4 | 190 |
| 830112000/16 | 1 x 120 / 16 12/20 kV | 34 | 133.4 | 215 |
| 830112000/16 | 1 x 120 / 16 18/30 kV | 39 | 133.4 | 245 |
| 830115000/25 | 1 x 150 / 25 6/10 kV | 31 | 172.3 | 230 |
| 830115000/25 | 1 x 150 / 25 12/20 kV | 35 | 172.3 | 250 |
| 830115000/25 | 1 x 150 / 25 18/30 kV | 40 | 172.3 | 275 |
| 830118500/25 | 1 x 185 / 25 6/10 kV | 33 | 205.9 | 265 |
| 830118500/25 | 1 x 185 / 25 12/20 kV | 37 | 205.9 | 290 |
| 830118500/25 | 1 x 185 / 25 18/30 kV | 42 | 205.9 | 315 |
| 830118500/35 | 1 x 185 / 35 18/30 kV | 42 | 217.5 | 295.5 |
| 830124000/25 | 1 x 240 / 25 6/10 kV | 35 | 258.7 | 325 |
| 830124000/25 | 1 x 240 / 25 12/20 kV | 40 | 258.7 | 350 |
| 830124000/25 | 1 x 240 / 25 18/30 kV | 44 | 258.7 | 380 |
| 830124000/70 | 1 x 240 / 70 18/30 kV | 44 | 308.4 | 378.6 |
| 830130000/25 | 1 x 300 / 25 6/10 kV | 37 | 316.3 | 385 |
| 830130000/25 | 1 x 300 / 25 12/20 kV | 42 | 316.3 | 415 |
| 830130000/25 | 1 x 300 / 25 18/30 kV | 47 | 316.3 | 440 |
| 830130000/50 | 1 x 300 /50 6/10 kv | 37 | 344 | 376.1 |
| 830140000/35 | 1 x 400 / 35 6/10 kV | 41 | 423.4 | 480 |
| 830140000/35 | 1 x 400 / 35 12/20 kV | 45 | 423.4 | 510 |
| 830140000/35 | 1 x 400 / 35 18/30 kV | 50 | 423.4 | 545 |
| 830150000/35 | 1 x 500 / 35 6/10 kV | 44 | 519.4 | 590 |
| 830150000/35 | 1 x 500 / 35 12/20 kV | 48 | 519.4 | 620 |
| 830150000/35 | 1 x 500 / 35 18/30 kV | 53 | 519.4 | 655 |
| 830163000/35 | 1 x 630 /35 6/10 kv | 49 | 644.2 | 701.4 |
| 830163000/35 | 1 x 630 /35 12/20 kv | 52 | 644.2 | 736.5 |
| 830163000/35 | 1 x 630 /35 18/30 kv | 58 | 644.2 | 780.3 |
