Flexible single core power supply cable for short connections of mobile transformer substations to overhead lines, also for use in railway vehicles, switching stations and control panels. Installation in cable ducts, tubes and outside. Unrestricted outdoor and indoor use. Ozone-, UV- and moisture resistant

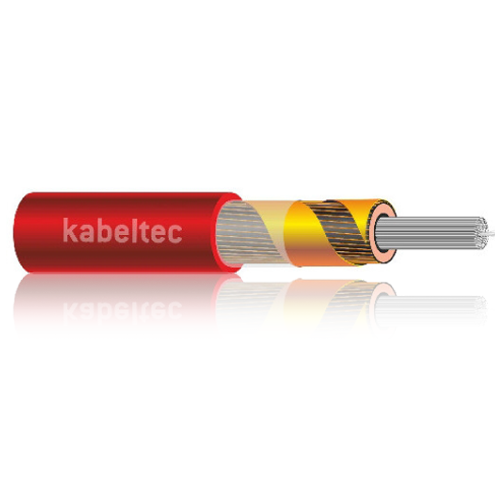

(N)TMCGCWU
Power supply cable
CONSTRUCTION:
Finely stranded conductor, class 5
EPR insulation
Inner and outer layers of semi-conductive rubber
Spinning of tinned copper wires around each core
Rubber outer sheath, red
Torsion: +/- 25°/m
TECHNICAL DATA:
Conductor Material: Copper, tinned
Conductor class: Class 5, EN 60228, DIN VDE 0295
Core insulation: rubber
Core identification: *
Stranding: *
Outer sheath: rubber
Sheath colour: red
Rated voltage [V]: 6/10kV or 12/20kV
Testing voltage [V]: 17kV or 29kV
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: according to DIN VDE 0298, Part 4
Min. bending radius fixed [xd]: 6xd
Min. bending radius moved [xd]: 15xd
Working temp fixed min/max [C]: -40°C up to+80°C
Working temp moved min/mac [C]: -25°C up to +60°C
Temp at conductor max: +90°C
Burning behaviour: VDE 0482-332-1-2/IEC 60332-1-2
Approvals: oil resistant: IEC60811-2-1 UV and ozone resitant
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 640013500 | 1 x 35/16 12/20kV | 25 | 57.6 | 97 |
| 640015000 | 1 x 50/16 12/20kV | 27.3 | 71.2 | 120 |
| 640017000 | 1 x 70/16 12/20kV | 29.1 | 91.2 | 144 |
| 640019500 | 1 x 95/16 12/20kV | 30.8 | 114.5 | 169 |
| 1 x 95/16 6/10kV | 28.9 | 106.6 | 159 | |
| 1 x 120/16 6/10kV | 30.9 | 145.2 | 188 | |
| 640012000 | 1 x 120/16 12/20kV | 37.8 | 174 | 236 |
| 640011500 | 1 x 150/25 12/20kV | 36 | 174 | 251 |
| 1 x 150/25 6/10kV | 33.3 | 174 | 232 | |
| 6400118500 | 1 x 185/25 12/20kV | 37 | 208.3 | 281 |
| 1 x 185/25 6/10kV | 35.2 | 207.8 | 267 | |
| 640012400 | 1 x 240/25 12/20kV | 41 | 264 | 354 |
| 1 x 240/25 6/10kV | 38.3 | 264 | 331 | |
| 640013000 | 1 x 300/25 12/20kV | 47 | 330.9 | 441.7 |
| 1 x 300/25 6/10kV | 41.3 | 312 | 369 |
