For use in hoists, transport and conveyor systems. Cables are reeled, unreeled, and guided by roller trains. In dry or damp interiors, outdoors, or not more than 2 weeks without interruption in industrial water.

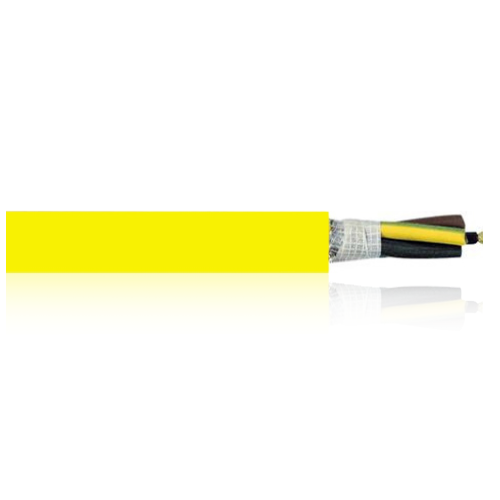

(N)SHTOU VS Yellow
Reelable cables for medium to high mechanical stress
CONSTRUCTION:
Strands of tinned-copper wires
Core insulation: rubber compound type 3GI3
Central supporting element
Support braid integrated in the outer sheath
Outer sheath: rubber compound, type 5GM5
TECHNICAL DATA:
Conductor Material: copper, bare
Conductor class: Class 5 or 6
Core insulation: Core insulation made of rubber
Core identification: Up to 5 cores: colour-coded according to VDE 0293-308,
refer to Appendix T9 From 6 cores: black with white
numbers
Stranding: Cores twisted concentrically
Outer sheath: Neoprene
Sheath colour: yellow
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 3000
Conductor resistance: *
Insulation resistance: > 10 MΩ/km
Current carrying capacity: *
Min. bending radius fixed [xd]: *
Min. bending radius moved [xd]: Flexible use: 7,5 x outer diameter
Working temp fixed min/max [C]: *
Working temp moved min/mac [C]: -25°C up to +80 °C
Temp at conductor max: *
Burning behaviour: *
Approvals: – NSHTÖU- Bauartzertifizierung acc. to VDE 0250-814
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 3 x 1.50 | 12.2 | 4.32 | 19 | |
| 3 x 2.50 | 13.5 | 7.2 | 25 | |
| 4 x 1.50 | 14.8 | 5.76 | 22 | |
| 4 x 2.50 | 16.9 | 9.6 | 33 | |
| 4 x 4 | 18.4 | 15.36 | 44 | |
| 4 x 6 | 19.8 | 23.04 | 53 | |
| 4 x 10 | 23.4 | 38.4 | 83 | |
| 4 x 16 | 25.5 | 61.44 | 117 | |
| 4 x 25 | 32.6 | 96 | 183 | |
| 4 x 35 | 34.8 | 134.4 | 228 | |
| 4 x 50 | 40.6 | 192 | 322 | |
| 4 x 70 | 44.8 | 268.8 | 420 | |
| 4 x 95 | 51.2 | 364.8 | 553 | |
| 5 x 1.50 | 15.7 | 7.2 | 26 | |
| 5 x 2.50 | 18 | 12 | 39 | |
| 5 x 4 | 19.6 | 19.2 | 52 | |
| 5 x 6 | 21.7 | 28.8 | 69 | |
| 5 x 10 | 25.2 | 48 | 100 | |
| 5 x 16 | 27.5 | 76.8 | 140 | |
| 7 x 1.50 | 18.2 | 10.08 | 38 | |
| 7 x 2.50 | 20.6 | 16.8 | 51 | |
| 12 x 1.50 | 23.9 | 17.28 | 72 | |
| 12 x 2.50 | 27.4 | 28.8 | 97 | |
| 18 x 1.50 | 23.9 | 25.92 | 77 | |
| 18 x 2.50 | 27.4 | 43.2 | 110 | |
| 24 x 1.50 | 27.1 | 34.56 | 100 | |
| 24 x 2.50 | 31.6 | 57.6 | 145 | |
| 30 x 1.50 | 30.2 | 43.2 | 132 | |
| 30 x 2.50 | 36.3 | 72 | 195 |
