Suitable where damages of high property values and people have to be prevented, e.g. in schools, hotels, hospitals, tunnels etc. Due to the function retention and the reduced formation of toxic gases this cable ensures that in case of fire lighting, ventilation, emergency power supply etc. will operate. Suitable for fixed installation in dry rooms and outdoor but not in the earth ground or water.

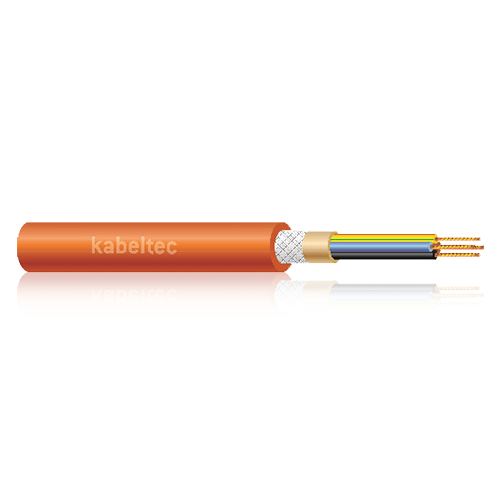

(N)HXH-FE 180/E90
Halogen power cables with 90 minutes circuit integrity
CONSTRUCTION:
- Flame-retardant acc. IEC 60332-1-2
- Core insulation made of halogen-free polymer according to VDE 207
- Core marking coloured in accordance to VDE 0293
- Earth conductor green/yellow
- Cores twisted together
- Outer sheath halogen-free Polymer, orange
- Bending radius 15 x Ø
TESTS:
-
- Fire test according to VDE 0472 part 804 test C, IEC 60332-3 and HD 405.3
- Corrosiveness of combustion gases (freedom from halogen) according to VDE 0472 part 813 IEC 60754-2 HD602
- Halogen-free as per VDE 0472 part 815 and IEC 60754-1
- Burning behaviour according to VDE 0472 part 816 test C, IEC 61034-1/61034-2, HD 606 and BS 7622
- Insulation integrity according to VDE 0472 part 814 » IEC 60331
- Functionality of the complete cable system according to DIN 4102 part 12 (90 min.)
RE: round conductor, solid
RM: round conductor, stranded
SM: sectorial conductor, stranded
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | Class 1, 25qm m² class 2 |
| Core insulation | Halogen-free polymer |
| Core identification | Coloured in accordance to VDE 0293 |
| Stranding | Cores twisted together |
| Outer sheath | Halogen-free polymer |
| Sheath colour | Orange |
| Rated voltage [V] | 600 / 1000 |
| Testing voltage [V] | 4000 |
| Conductor resistance | * |
| Insulation resistance | * |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 12 x d |
| Min. bending radius moved [xd] | * |
| Working temp fixed min/max [C] | -5 °C up to +70 |
| Working temp moved min/mac [C] | * |
| Temp at conductor max. | |
| Burning behaviour | VDE 0482-266-2-4/IEC 60332-3-24 |
| Approvals | VDE 0266 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 713011600 | 1 x 16 | 10.5 | 15.4 | 23 |
| 713012500 | 1 x 25 | 12.5 | 24 | 34 |
| 713013500 | 1 x 35 | 13.5 | 33.6 | 44 |
| 713015000 | 1 x 50 | 13.9 | 48 | 60 |
| 713017000 | 1 x 70 | 16.5 | 67.2 | 80 |
| 713019500 | 1 x 95 | 18.9 | 91.2 | 110 |
| 7130112000 | 1 x 120 | 20.5 | 115.2 | 135 |
| 7130115000 | 1 x 150 | 22.5 | 144 | 165 |
| 7130118500 | 1 x 185 | 24.9 | 177.6 | 200 |
| 7130124000 | 1 x 240 | 27.9 | 230.4 | 260 |
| 7130130000 | 1 x 300 | 30.9 | 288 | 320 |
| 7130140000 | 1 x 400 | 34.9 | 384 | 420 |
| 713020150 | 2 x 1.50 | 13.9 | 2.9 | 21 |
| 713030150 | 3 x 1.50 RE | 14.9 | 4.3 | 21 |
| 713030250 | 3 x 2.50 RE | 15.9 | 7.2 | 24.3 |
| 713030400 | 3 x 4 RE | 16.7 | 11.5 | 30.2 |
| 713030600 | 3 x 6 RE | 17.8 | 17.3 | 39.9 |
| 713031000 | 3 x 10 RE | 19.4 | 28.8 | 54.6 |
| 713031600 | 3 x 16 RM | 22.3 | 46.1 | 76.5 |
| 713032500 | 3 x 25 RM | 24.9 | 72 | 11 |
| 713033500 | 3 x 35 RM | 26.8 | 100.8 | 143 |
| 713033500/16 | 3 x 35 RM | 28.9 | 116.2 | 162 |
| 713035000/25 | 3 x 50 RM | 32.9 | 168 | 225 |
| 713037000/35 | 3 x 70 RM | 37.1 | 235.2 | 304 |
| 713039500/50 | 3 x 95 RM | 41.8 | 321.6 | 407.2 |
| 7130312000/70 | 3 x 120 RM | 46 | 412.8 | 522.1 |
| 7130315000/70 | 3 x 150 RM | 49.7 | 499.2 | 617.2 |
| 7130318500/95 | 3 x 185 RM | 56 | 624 | 778 |
| 7130324000/120 | 3 x 240 RM | 62.8 | 806.4 | 999.5 |
| 713040150 | 4 x 1.50 RE | 16.1 | 5.8 | 24.5 |
| 713040250 | 4 x 2.50 RE | 16.9 | 9.6 | 29.9 |
| 713040400 | 4 x 4 RE | 17.9 | 15.4 | 37.6 |
| 713040600 | 4 x 6 RE | 19.2 | 23 | 47.4 |
| 713041000 | 4 x 10 RE | 21.1 | 38.4 | 65.7 |
| 713041600 | 4 x 16 RM | 24.3 | 61.4 | 97.3 |
| 713042500 | 4 x 25 RM | 28.1 | 96 | 142.2 |
| 713043500 | 4 x 35 RM | 30.9 | 134.4 | 185.8 |
| 713045000 | 4 x 50 RM | 35.1 | 168 | 290 |
| 713047000 | 4 x 70 RM | 38.9 | 268.8 | 244 |
| 713049500 | 4 x 95 RM | 45.2 | 364.8 | 520 |
| 7130412000 | 4 x 120 RM | 48.9 | 428.5 | 630 |
| 713050150 | 5 x 1.50 RE | 17.4 | 7.2 | 29 |
| 713050250 | 5 x 2.50 RE | 18.4 | 12 | 35.9 |
| 713050400 | 5 x 4 RE | 19.5 | 19.2 | 45.7 |
| 713050600 | 5 x 6 RE | 20 | 28.8 | 57.7 |
| 713051000 | 5 x 10 RE | 22.9 | 48 | 80.7 |
| 713051600 | 5 x 16 RM | 26.6 | 76.8 | 114.5 |
| 713052500 | 5 x 25 RM | 30.9 | 120 | 176.5 |
| 713053500 | 5 x 35 RM | 32.9 | 168 | 231 |
| 713055000 | 5 x 50 RM | 38.1 | 250 | 309 |
| 713070150 | 7 x 1.50 RE | 19 | 10.1 | 35 |
| 713070250 | 7 x 2.50 RE | 20.4 | 16.8 | 44.3 |
| 713100150 | 10 x 1.50 RE | 24 | 14.4 | 48 |
| 713100250 | 10 x 2.50 RE | 24.4 | 24 | 58 |
| 713120150 | 12 x 1.50 RE | 23.7 | 17.3 | 54.5 |
| 713120250 | 12 x 2.50 RE | 26.1 | 28.8 | 66 |
