Suitable where damages of high property values and humans have to be prevented, e.g. in schools, hotels, hospitals, tunnels, etc. Due to the function retention and the reduced formation of toxic gases this cable ensures that in case of fire lighting, ventilation, emergency power supply etc. will operate. Suitable for installation in dry rooms and outside, but not directly in earth or in water.

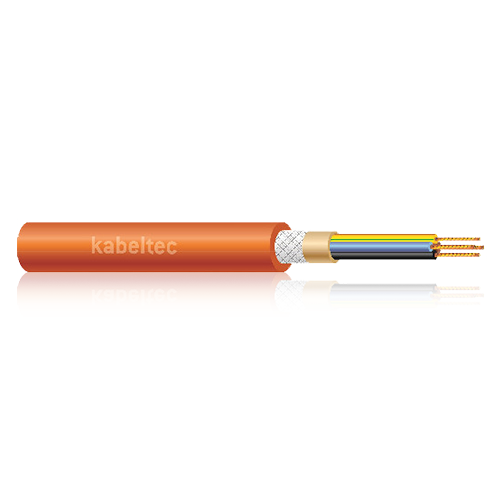

(N)HXH-FE 180/E30
halogen power cables with 30 minutes circuit integrity
CONSTRUCTION:
- Flame-retardant
- Core insulation made of halogen-free polymer according to VDE 207
- Core marking coloured in accordance to VDE 0293
- Earth conductor green/yellow
- Cores twisted together
- Outer sheath halogen-free Polymer, orange Tests
- Bending radius 15 x Ø
TEST:
- Fire test according to VDE 0472 part 804 test C, IEC 332-3 and HD 405.3
- Corrosiveness of combustion gases (freedom from halogen) according to VDE 0472 part 813
- Halogen-free as per VDE 0472 part 815 and IEC 754-1
- Burning behavior according to VDE 0472 part 816 test C, IEC 1034-1/1034-2, HD 606 and BS 7622 part 1 and part 2
- Insulation integrity according to VDE 0472 part 814 >> IEC 331
- Functionality of the complete cable system according to DIN 4102 part 12 (30min.)
RE: round conductor, solid
RM: round conductor, stranded
SM: sectorial conductor, stranded
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | Class 1, 25qmm class 2 |
| Core insulation | Halogen-free polymer |
| Core identification | Coloured in accordance to VDE 0293 |
| Stranding | Cores twisted together |
| Outer sheath | Halogen-free polymer |
| Sheath colour | Orange |
| Rated voltage [V] | 600 / 1000 |
| Testing voltage [V] | 4000 |
| Conductor resistance | * |
| Insulation resistance | * |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 12 x d |
| Min. bending radius moved [xd] | * |
| Working temp fixed min/max [C] | -30°C up to +70 |
| Working temp moved min/mac [C] | -5°C up to +70 |
| Temp at conductor max. | +90°C |
| Burning behaviour | VDE 0482-266-2-4/IEC 60332-3-24/IEC 60332-1 |
| Approvals | VDE 0266 halogen free acc. to DIN EN 50267/IEC 60754 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 710010400 | 1 x 4 RE | 8 | 3.8 | 10.2 |
| 710010600 | 1 x 6 RE | 9 | 5.8 | 12.6 |
| 710011000 | 1 x 10 RE | 10 | 9.6 | 17.2 |
| 710011600 | 1 x 16 RM | 11 | 15.4 | 24.1 |
| 710012500 | 1 x 25 RM | 13 | 24 | 35 |
| 710013500 | 1 x 35 RM | 14 | 33.6 | 45.1 |
| 710015000 | 1 x 50 RM | 16 | 48 | 48.9 |
| 710017000 | 1 x 70 RM | 17.5 | 67.2 | 82.4 |
| 710019500 | 1 x 95 RM | 20 | 91.2 | 109.5 |
| 7100112000 | 1 x 120 RM | 22 | 115.2 | 135.3 |
| 7100115000 | 1 x 150 RM | 24 | 144 | 165.4 |
| 7100118500 | 1 x 185 RM | 26.5 | 177.6 | 205.8 |
| 7100124000 | 1 x 240 RM | 30 | 230.4 | 267.1 |
| 7100130000 | 1 x 300 RM | 33 | 288 | 330 |
| 710020150 | 2 x 1.50 RE | 16 | 2.9 | 18 |
| 710020250 | 2 x 2.50 RE | 16 | 4.8 | 21.7 |
| 710020400 | 2 x 4 RE | 16.5 | 7.7 | 26.9 |
| 710020600 | 2 x 6 RE | 18 | 11.5 | 33.2 |
| 710021000 | 2 x 10 RE | 20 | 19.2 | 44.8 |
| 710021600 | 2 x 16 RM | 21 | 30.7 | 63.6 |
| 710022500 | 2 x 25 RM | 23 | 48 | 92.1 |
| 710023500 | 2 x 35 RM | 24 | 67.2 | 117.6 |
| 710030150 | 3 x 1.50 RE | 15.5 | 4.3 | 20.7 |
| 710030250 | 3 x 2.50 RE | 16.5 | 7.2 | 25.5 |
| 710030400 | 3 x 4 RE | 17.5 | 11.5 | 32.1 |
| 710030600 | 3 x 6 RE | 18.5 | 17.3 | 40.1 |
| 710031000 | 3 x 10 RE | 21 | 28.8 | 55.2 |
| 710031600 | 3 x 16 RM | 23 | 46.1 | 79.5 |
| 710032500 | 3 x 25 RM | 26 | 72 | 116.7 |
| 710033500 | 3 x 35 RM | 27.5 | 108 | 150.8 |
| 710033500/16 | 3 x 35 /16 RM | 26.9 | 116.2 | 180 |
| 710035000 | 3 x 50 RM | 30 | 144 | 199.6 |
| 710035000/25 | 3 x 50 /25 RM | 29.9 | 168 | 260 |
| 710037000 | 3 x 70 RM | 34 | 201.6 | 285.2 |
| 710037000 | 3 x 70 /35 RM | 34.9 | 235.2 | 340 |
| 170039500 | 3 x 95 /50 RM | 38.9 | 321.6 | 460 |
| 710031200 | 3 x 120 /70 RM | 42.9 | 412.8 | 570 |
| 710031500 | 3 x 150 /70 RM | 46.9 | 499.2 | 680 |
| 7100318500 | 3 x 185 /95 RM | 52.9 | 624 | 850 |
| 7100324000 | 3 x 240 /120 RM | 58.8 | 806.4 | 1100 |
| 710040150 | 4 x 1.50 RE | 16.5 | 5.8 | 24.6 |
| 710040250 | 4 x 2.50 RE | 18 | 9.6 | 30.7 |
| 710040400 | 4 x 4 RE | 19 | 15.4 | 39.2 |
| 710040600 | 4 x 6 RE | 20 | 23 | 49.6 |
| 710041000 | 4 x 10 RE | 22.5 | 38.4 | 69.3 |
| 710041600 | 4 x 16 RE | 25.5 | 61.4 | 99.5 |
| 710042500 | 4 x 25 RM | 26.5 | 96 | 147.4 |
| 710043500 | 4 x 35 RM | 29 | 134.4 | 192.4 |
| 710045000 | 4 x 50 RM | 33.5 | 192 | 255.9 |
| 710047000 | 4 x 70 RM | 38 | 268.8 | 365.5 |
| 710049500 | 4 x 95 RM | 44 | 364.8 | 484 |
| 7100412000 | 4 x 120 RM | 47.5 | 460.8 | 600.7 |
| 7100415000 | 4 x 150 RM | 52.5 | 576 | 736.2 |
| 710050150 | 5 x 1.50 RE | 18 | 7.2 | 29 |
| 710050250 | 5 x 2.50 RE | 19 | 12 | 36 |
| 710050400 | 5 x 4 RE | 20.5 | 19.2 | 46.6 |
| 710050600 | 5 x 6 RE | 22 | 28.8 | 59.2 |
| 710051000 | 5 x 10 RE | 24.5 | 48 | 83.8 |
| 710051600 | 5 x 16 RM | 27.5 | 76.8 | 121.5 |
| 710052500 | 5 x 25 RM | 31 | 120 | 181.2 |
| 710053500 | 5 x 35 RM | 33 | 168 | 270 |
| 710070150 | 7 x 1.50 RE | 17.5 | 10.1 | 31.9 |
| 710070250 | 7 x 2.50 RE | 19 | 16.8 | 60 |
| 710120150 | 12 x 1.50 RE | 20.5 | 17.3 | 49.9 |
| 710120250 | 12 x 2.50 RE | 24 | 28.8 | 90 |
| 710190150 | 19 x 1.50 RE | 28 | 27.4 | 72.3 |
| 710190250 | 19 x 2.50 RE | 30 | 45.6 | 130 |
| 710240150 | 24 x 1.50 RE | 32 | 34.6 | 89.7 |
| 710240250 | 24 x 2.50 RE | 34.5 | 57.6 | 160 |
| 710300150 | 30 x 1.50 RE | 34 | 43.2 | 109.5 |
| 710300250 | 30 x 2.50 RE | 37 | 72 | 180 |
