Suitable where damages of high property values and people have to be prevented, e.g. in schools, hotels, hospitals, tunnels, etc. Due to function retention and the reduced formation of toxic gases this cable ensures that in case of fire lighting, ventilation, emergency power supply, etc. will operate. Suitable for installation in dry rooms and outside, but not directly in earth or in water. The concentric conductor can be used as neutral or earthing conductor

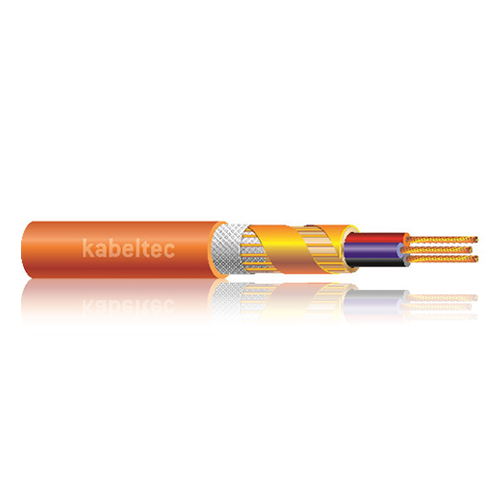

(N)HXCH-FE 180/E90
Halogen-free power cables shielded with 90 minutes circuit integrity
CONSTRUCTION:
- Plain copper conductors, single- or multi wire
- Core insulation made of halogen-free polymer
- Core marking colored in accordance to VDE 0293
- Cores taped and twisted together
- Earth conductor green/yellow
- Concentric conductor of several single, solid copper wires
- Common inner jacket
- Outer sheath halogen-free Polymer, orange
- Additional inner jacket with flame retardant textile tape
- Bending radius 15 x Ø
Tests:
- Fire test according to VDE 0472 part 804 test C, IEC 332-3 and HD 405.3
- Corrosiveness of combustion gases (freedom from halogen) according to VDE 0472 part 813
- Halogen-free as per VDE 0472 part 815 and IEC 754-1
- Burning behaviour according to VDE 0472 part 816 test C, IEC 1034-1/1034-2, HD 606 and BS 7622 part 1 und 2
- Insulation integrity according to VDE 0472 part 814 » IEC 331
- Functionality of the cable system according to DIN 4102 part 12 (90 min.)
RE: round conductor, solid
RM: round conductor, stranded
SM: secotrial conductor, stranded
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 1, 25qmm and higher class 2 |
| Core insulation | Halogen-free polymer |
| Core identification | Coloured in accordance to VDE 0293 |
| Stranding | Cores twisted together |
| Outer sheath | Halogen-free polymer HM1 |
| Sheath colour | Orange |
| Rated voltage [V] | 600 / 1000 |
| Testing voltage [V] | 4000 |
| Conductor resistance | * |
| Insulation resistance | * |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 12 x d |
| Min. bending radius moved [xd] | * |
| Working temp fixed min/max [C] | -30°C up to +70 |
| Working temp moved min/mac [C] | -5°C up to +70 |
| Temp at conductor max. | +90°C |
| Burning behaviour | VDE 0482-266-2-4/IEC 60332-3-24 |
| Approvals | VDE 0266 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 715030150.00 | 3 x 1.50 /1,5RE | 16.90 | 6.60 | 34.80 |
| 715030250.00 | 3 x 2.50 /2,5RE | 18.00 | 10.40 | 41.00 |
| 715030400.00 | 3 x 4 /4RE | 19.00 | 16.10 | 50.00 |
| 715030600.00 | 3 x 6 /6RE | 20.10 | 24.00 | 61.40 |
| 715031000.00 | 3 x 10 /10RE | 24.10 | 40.80 | 83.00 |
| 715031600.00 | 3 x 16 /16RM | 27.30 | 64.30 | 107.30 |
| 715032500/16 | 3 x 25 /16RM | 30.70 | 87.40 | 145.00 |
| 715033500/16 | 3 x 35 /16RM | 32.90 | 116.20 | 179.80 |
| 715035000/25 | 3 x 50 /25RM | 36.20 | 168.00 | 239.40 |
| 715037000/35 | 3 x 70 /35RM | 42.50 | 235.20 | 279.60 |
| 715039500/50 | 3 x 95 /50RM | 47.00 | 321.60 | 443.40 |
| 7150312000/70 | 3 x 120 /70RM | 50.80 | 412.80 | 553.40 |
| 7150315000/95 | 3 x 150 /95RM | 55.00 | 499.20 | 654.60 |
| 7150318500/95 | 3 x 185 /95RM | 61.70 | 61.70 | 830.00 |
| 7150324000/120 | 3 x 240 /120RM | 67.90 | 806.40 | 1060.50 |
| 715040150.00 | 4 x 1.50 /1,5RE | 18.00 | 8.10 | 39.80 |
| 715040250.00 | 4 x 2.50 /2,5RE | 18.90 | 12.80 | 47.00 |
| 715040400.00 | 4 x 4 /4RE | 20.10 | 20.00 | 57.80 |
| 715040600.00 | 4 x 6 /6RE | 22.50 | 29.70 | 72.60 |
| 715041000.00 | 4 x 10 /10RE | 26.40 | 50.40 | 98.30 |
| 715041600.00 | 4 x 16 /16RE | 29.30 | 79.60 | 137.00 |
| 715042500/16 | 4 x 25 /16RM | 33.10 | 114.20 | 190.40 |
| 715043500/16 | 4 x 35 /16RM | 35.90 | 152.60 | 242.70 |
| 715045000/25 | 4 x 50 /25RM | 41.10 | 220.30 | 317.70 |
| 715047000/35 | 4 x 70 /35RM | 46.20 | 308.20 | 437.80 |
| 715049500/50 | 4 x 95 /50RM | 51.90 | 420.80 | 580.30 |
| 7150412000/70 | 4 x 120 /70RM | 54.20 | 538.80 | 723.00 |
| 7150415000/70 | 4 x 150 /70RM | 60.30 | 654.00 | 870.70 |
| 7150418500/95 | 4 x 185 /95RM | 66.70 | 815.90 | 1089.40 |
| 7150424000/120 | 4 x 240 /120RM | 74.40 | 1054.60 | 1393.30 |
| 715050250.00 | 5 x 2.50 /2.5 RE | 0.00 | 15.20 | 48.00 |
| 715050400.00 | 5 x 4 /4 RE | 20.50 | 23.80 | 60.00 |
| 715070150/2,5 | 7 x 1.50 /2,5RM | 20.80 | 13.30 | 49.80 |
| 715070250.00 | 7 x 2.50 /2,5RM | 22.10 | 13.30 | 68.00 |
| 715100150.00 | 10 x 1.50 RE | 23.10 | 17.60 | 52.00 |
| 715120150/2,5 | 12 x 1.50 /2,5RM | 29.00 | 20.50 | 71.80 |
| 715120250/4 | 12 x 2.50 /4RM | 29.00 | 71.80 | 105.00 |
| 715120400.00 | 12 x 4 /6 RE | 0.00 | 52.80 | 110.00 |
| 715240150/6 | 24 x 1.50 /6RM | 37.60 | 41.30 | 130.50 |
| 715240250/10 | 24 x 2.50 /10RM | 40.90 | 41.30 | 140.00 |
| 715300150/6 | 30 x 1.50 /6RM | 39.80 | 49.90 | 151.90 |
| 715300250/10 | 30 x 2.50 /10RE | 42.90 | 84.00 | 155.00 |
