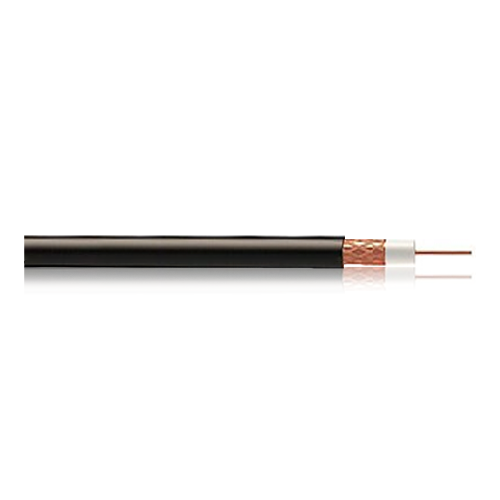

CO-AXIAL CABLE
RG6 / RG11

RG11/U Coaxial Cable

Electrical Specifications

Temperature Operating Range: – 20°C + 70°C
Impedance: 75 + 3 Ohms
Return Loss @ 20°C: 5-1000 MHz > 20 dB
Return Loss @ 20°C: 1001-2250 MHz > 15 dB
Capacitance: pF/ft [pF/m] 20.5 [67.26]

Design

Conductor : Copper Cladded Steel Solid Conductor

Insulation: Foam PE

Aluminum Foil Bonded, 100% coverage

Braiding: Material: Aluminum Wire

Outer Sheath:
Outer sheath material: Polyvinyl Chloride (PVC)
Jacket Diameter: 10.15 ± 0.10 mm
Jacket Nominal Thickness: 0.75 mm
Color: Black
Marking (Ink jet):
Nexans RG-11/U – 90% 75 Ohm Coaxial Cable ROHS MM/YYYY *****M
Nexans RG-11/U – 60% 75 Ohm Coaxial Cable ROHS MM/YYYY *****M

RG6/U Coaxial Cable

Electrical Specifications
Temperature Operating Range: – 20°C +70°C
Impedance: 75 + 3 Ohms
Return Loss @ 20 C : 5 – 1000 MHz > 20dB:
Return Loss @ 20 C : 1001 – 2250 MHz > 15dB
Capacitance : 51 + 1 pF/m

Design
1) Conductors: Copper Cladded Steel Solid Conductor
2) Insulation: Foam PE Aluminum Foil Bonded, 100% coverage

Braiding:
Material: Aluminum Wire

Outer Sheath:
Outer sheath material: Polyvinyl Chloride (PVC)
Jacket Diameter: 6.8 ± 0.10 mm
Jacket Nominal Thickness: 0.75 + 0.05 mm
Color: Black
Marking (Ink jet):
Nexans RG-6/U – 90% 75 Ohm Coaxial Cable ROHS MM/YYYY *****M
Nexans RG-6/U – 60% 75 Ohm Coaxial Cable ROHS MM//YYYY *****M
