Developed as control cable for elevators, machine tool and other machinery with high strain indoors and outdoors. This cable is not suitable as drum reeling cable.

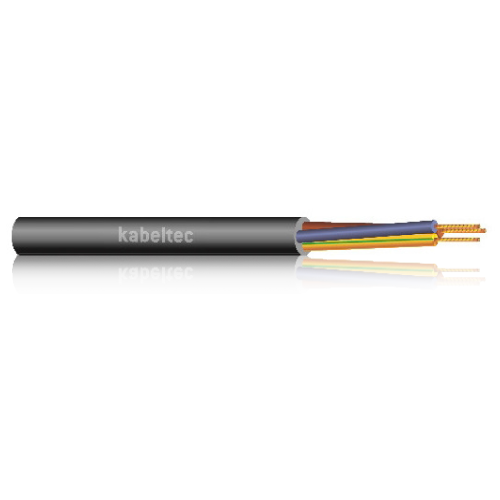

NEOPRENE CABLE
H05RN-F / H07RN-F
Neoprene cable with strainer
SGD 0.00 – SGD 127.70
CONSTRUCTION:
- Bare copper conductor
- Core marking: 1 to 5 cores: according to VDE 0293 (colour coded) > 7 cores: number coded (JZ)
- EPR insulated cores
- Supporting core to relieve stress
- Outer sheath made of neoprene black
- Flame-retardant
- Bending radius: 12,5 x Ø
- Resistant to oil: EN 60811-2-1 [INDEX:20201201JC]
TECHNICAL DATA:
| Conductor Material | Bare copper |
| Conductor class | Class 5 |
| Core insulation | P insulated cores |
| Core identification | 1 to 5 cores: according to VDE 0293 (colour coded), > 7 |
| cores | number coded (JZ) |
| Stranding | * |
| Outer sheath | Neoprene |
| Sheath colour | Black (RAL 9005) |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | 3000 |
| Conductor resistance | * |
| Insulation resistance | * |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 12,5 x d |
| Min. bending radius moved [xd] | 12,5 x d, 20 x d |
| Working temp fixed min/max [C] | -40°C up to +80 |
| Working temp moved min/mac [C] | -25°C up to +60 |
| Temp at conductor max | +90°C |
| Burning behaviour | IEC 60332-2-1: self-extinguishing and flame retardant |
| Approvals | DIN VDE 0250 |
H05RN-F
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 5 x 0.75 | 1,3 | 110 | ||
| 4 x 0.75 | 1,1 | 89 | ||
| 3 x 1 | 1,3 | 87 | ||
| 3 x 0.75 | 1,1 | 79 | ||
| 2 x 1 | 1,3 | 73 | ||
| 2 x 0.75 | 1,1 | 60 |
H07RN-F
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 1 x 1.5 | 1 x 1,5 | 7,1 | 51 | |
| 1 x 2.5 | 1 x 2,5 | 7,9 | 67 | |
| 1 x 4 | 1 x 4 | 9,0 | 92 | |
| 1 x 6 | 1 x 6 | 9,8 | 121 | |
| 1 x 10 | 1 x 10 | 11,9 | 186 | |
| 1 x 16 | 1 x 16 | 13,4 | 256 | |
| 1 x 25 | 1 x 25 | 15,8 | 368 | |
| 1 x 35 | 1 x 35 | 17,9 | 485 | |
| 1 x 50 | 1 x 50 | 20,6 | 668 | |
| 1 x 70 | 1 x 70 | 23,3 | 905 | |
| 1 x 95 | 1 x 95 | 26,0 | 1180 | |
| 1 x 120 | 1 x 120 | 28,6 | 1460 | |
| 1 x 150 | 1 x 150 | 31,4 | 1810 | |
| 1 x 185 | 1 x 185 | 34,4 | 2165 | |
| 1 x 240 | 1 x 240 | 38,3 | 2750 | |
| 1 x 300 | 1 x 300 | 41,9 | 3271 | |
| 1 x 400 | 1 x 400 | 46,8 | 4286 | |
| 1 x 500 | 1 x 500 | 52,0 | 5301 | |
| 1 x 630 | 1 x 630 | 57,0 | 6959 | |
| 2 x 1 | 2 x 1 | 10,0 | 88 | |
| 2 x 1.5 | 2 x 1,5 | 11,0 | 113 | |
| 2 x 2.5 | 2 x 2,5 | 13,1 | 160 | |
| 2 x 4 | 2 x 4 | 15,1 | 221 | |
| 2 x 6 | 2 x 6 | 16,8 | 294 | |
| 2 x 10 | 2 x 10 | 22,6 | 512 | |
| 2 x 16 | 2 x 16 | 25,7 | 651 | |
| 2 x 25 | 2 x 25 | 30,7 | 1013 | |
| 3G1 | 3G1 | 10,7 | 107 | |
| 3G1,5 | 3G1.5 | 11,9 | 135 | |
| 3G2.5 | 3G2,5 | 14,0 | 190 | |
| 3G4 | 3G4 | 16,2 | 267 | |
| 3G6 | 3G6 | 18,0 | 359 | |
| 3G10 | 3G10 | 24,2 | 635 | |
| 3G16 | 3G16 | 27,6 | 877 | |
| 3G25 | 3G25 | 33,0 | 1270 | |
| 3G35 | 3G35 | 37,1 | 1660 | |
| 3G50 | 3G50 | 42,9 | 2304 | |
| 3G70 | 3G70 | 48,3 | 3062 | |
| 3G95 | 3G95 | 54,0 | 3949 | |
| 3G120 | 3G120 | 60,0 | 4961 | |
| 3G150 | 3G150 | 66,0 | 6111 | |
| 3G185 | 3G185 | 72,0 | 7386 | |
| 4G1 | 4G1 | 11,9 | 130 | |
| 4G1.5 | 4G1,5 | 13,1 | 164 | |
| 4G2.5 | 4G2,5 | 15,5 | 238 | |
| 4G4 | 4G4 | 17,9 | 332 | |
| 4G6 | 4G6 | 20,0 | 446 | |
| 4G10 | 4G10 | 26,5 | 779 | |
| 4G16 | 4G16 | 30,1 | 1085 | |
| 4G25 | 4G25 | 36,6 | 1619 | |
| 4G35 | 4G35 | 41,1 | 2109 | |
| 4G50 | 4G50 | 47,5 | 2929 | |
| 4G70 | 4G70 | 54,0 | 3915 | |
| 4G95 | 4G95 | 61,0 | 5085 | |
| 4G120 | 4G120 | 66,0 | 6342 | |
| 4G150 | 4G150 | 73,0 | 7840 | |
| 4G185 | 4G185 | 80,0 | 9465 | |
| 5G1 | 5G1 | 13,1 | 159 | |
| 5G1,5 | 5G1,5 | 14,4 | 196 | |
| 5G2,5 | 5G2,5 | 17,0 | 303 | |
| 5G4 | 5G4 | 19,9 | 401 | |
| 5G6 | 5G6 | 22,2 | 565 | |
| 5G10 | 5G10 | 29,1 | 967 | |
| 5G16 | 5G16 | 33,3 | 1355 | |
| 5G25 | 5G25 | 40,4 | 2008 | |
| 5G35 | 5G35 | 45,1 | 2560 | |
| 5G50 | 5G50 | 53 | 3590 | |
| 5G70 | 5G70 | 60 | 4833 | |
| 5G95 | 5G95 | 67 | 6257 | |
| 7G1.5 | 7G1,5 | 17,2 | 333 | |
| 12G1.5 | 12G1,5 | 22,4 | 477 | |
| 19G1.5 | 19G1,5 | 26,3 | 683 | |
| 24G1.5 | 24G1,5 | 30,7 | 867 | |
| 36G1.5 | 36G1,5 | 35,2 | 1245 | |
| 7G2.5 | 7G2,5 | 20,0 | 470 | |
| 12G2,5 | 12G2,5 | 26,2 | 675 | |
| 19G2,5 | 19G2,5 | 30,9 | 986 | |
| 24G2.5 | 24G2,5 | 36,4 | 1261 | |
| 36G2.5 | 36G2,5 | 41,8 | 1810 |
