Neoprene-sheathed flat cables are weatherproof and thus suitable for use under adverse ambient conditions, e.g. for outdoor installation in shipyards, on cranes and on hoisting gear and conveyor systems, for example. Used up to mean mechanical strain and severe bending load along a single level during operation. Suitable in dry and moist rooms and for outdoor use.

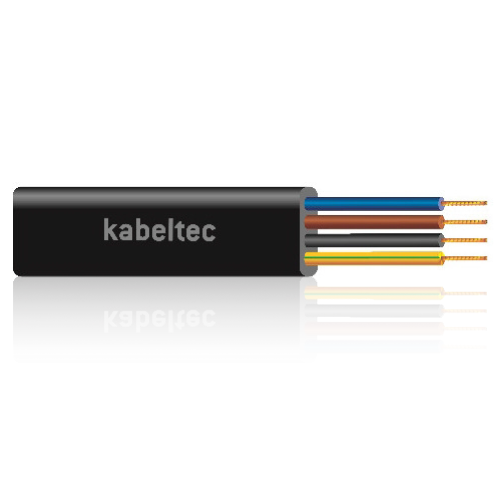

NEO-FLATFORM (NGFLGOU)
Flat cable made of neoprene
CONSTRUCTION:
- Bare copper conductor
- Earth conductor green/yellow
- Structure according to VDE 0295, class 5 or 6
- Rubber-insulated cores
- Core marking: up to 5 cores colour coded according to VDE 0293 7 cores and more black with printed consecutive number coding
- Neoprene outer sheath, black
- Flame-retardant
- UV resistant
- Largely oil resistant
TECHNICAL DATA:
| Conductor Material | Copper ,bare |
| Conductor class | Class 5 or 6 |
| Core insulation | Rubber compound |
| Core identification |
Up to 5 cores colour coded in accordance to VDE 0293, 6 cores and more black with printed consecutive number coding
|
| Stranding | Cores side by side |
| Outer sheath | Neoprene |
| Sheath colour | Black |
| Rated voltage [V] | 300 / 500 (600/1000) |
| Testing voltage [V] | 2000 |
| Conductor resistance | |
| Insulation resistance | 10 MΩ x km |
| Current carrying capacity | DIN VDE (s. technical guidelines) |
| Min. bending radius fixed [xd] | DIN VDE 0298 part 3 |
| Min. bending radius moved [xd] | DIN VDE 0298 part 3 |
| Working temp fixed min/max [C] | -40°C up to +85 |
| Working temp moved min/mac [C] | -35°C up to 85 |
| Temp at conductor max | +90 °C |
| Burning behaviour | IEC 60332-1: self-extinguishing and flame-retardant |
| Approvals | acc. to DIN VDE 0250 part 809 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 68040150.00 | 4 x 1.50 | 5.6-6.4x15.8-17.5 | 5.80 | 22.00 |
| 68040250.00 | 4 x 2.50 | 7.0-8.2x19.2-21.2 | 9.60 | 35.00 |
| 68040400.00 | 4 x 4 | 8.2-9.6x22.7 -25.0 | 15.40 | 49.00 |
| 68040600.00 | 4 x 6 | 8.7-10.3x24.5-27.1 | 23.00 | 60.00 |
| 68041000.00 | 4 x 10 | 10.1-11.2x30.6-33.4 | 38.40 | 84.00 |
| 68041600.00 | 4 x 16 | 11.8-13.1x35.5-38.8 | 61.40 | 121.00 |
| 68042500.00 | 4 x 25 | 13.7-15.0x44.8-48.1 | 96.00 | 165.00 |
| 68043500.00 | 4 x 35 | 15.7-17.0x50.3-53.3 | 134.40 | 220.00 |
| 68045000.00 | 4 x 50 | 18.0-19.6x57.5-61.5 | 192.00 | 300.00 |
| 68047000.00 | 4 x 70 | 21.0-22.6x65.8-70.5 | 268.80 | 425.00 |
| 68049500.00 | 4 x 95 | 23.6-25.2x74.0-78.7 | 364.80 | 530.00 |
| 680412000.00 | 4 x 120 | 26.0-27.6x82.1-86.7 | 460.80 | 650.00 |
| 68050150.00 | 5 x 1.50 | 5.6-6.4x19.8-21.5 | 7.20 | 28.00 |
| 68050250.00 | 5 x 2.50 | 7.0-8.2x23.7-25.7 | 12.00 | 43.00 |
| 68050400.00 | 5 x 4 | 8.2-9.6x28.2-31.4 | 19.20 | 63.00 |
| 68050600.00 | 5 x 6 | 8.7-10.3x31.5-34.8 | 28.80 | 78.00 |
| 68051000.00 | 5 x 10 | 10.1-11.2x38.0-41.5 | 48.00 | 106.00 |
| 68051600.00 | 5 x 16 | 11.8-13.1x44.0-47.6 | 76.80 | 154.00 |
| 68052500.00 | 5 x 25 | 14.2-15.5x54.0-58.6 | 120.00 | 216.00 |
| 68240150.00 | 6x4 x 1.50 | 11.5-13.0x51.0-55.0 | 35.10 | 133.00 |
| 68240250.00 | 6x4 x 2.50 | 15.0-17.0x67.0-72.5 | 58.50 | 230.00 |
| 68070150.00 | 7 x 1.50 | 5.6-6.4x26.1-29.1 | 10.10 | 38.00 |
| 68070250.00 | 7 x 2.50 | 7.0-8.2x31.0-34.0 | 16.80 | 56.00 |
| 68070400.00 | 7 x 4 | 8.2-9.6x37.8-40.8 | 26.90 | 8300.00 |
| 68070600.00 | 7 x 6 | 8.7-10.3x41.5-44.5 | 40.30 | 101.00 |
| 68071000.00 | 7 x 10 | 10.5-11.5x54.6-55.7 | 67.20 | 126.00 |
| 68071600.00 | 7 x 16 | 12.4-13.7x60.0-64.4 | 107.50 | 214.00 |
| 68072500.00 | 7 x 25 | 15.5-16.4x74.8-75.8 | 168.00 | 305.70 |
| 68073500.00 | 7 x 35 | 16.4-17.3x84.0-85.0 | 235.20 | 402.00 |
| 68080150.00 | 8 x 1.50 | 5.6-6.4x29.3-32.0 | 11.50 | 42.00 |
| 68080250.00 | 8 x 2.50 | 7.0-8.2x35.5-38.5 | 19.20 | 63.00 |
| 68100150.00 | 10 x 1.50 | 6.0-7.0x38.5-41.5 | 14.40 | 58.00 |
| 68100250.00 | 10 x 2.50 | 7.6-8.4x47.4-48.5 | 24.00 | 63.30 |
| 68120150.00 | 12 x 1.50 | 6.0-7.0x44.5-48.5 | 17.30 | 69.00 |
| 68120250 | 12 x 2.50 | 7.6-8.8x52.8-56.8 | 28.80 | 102.00 |
