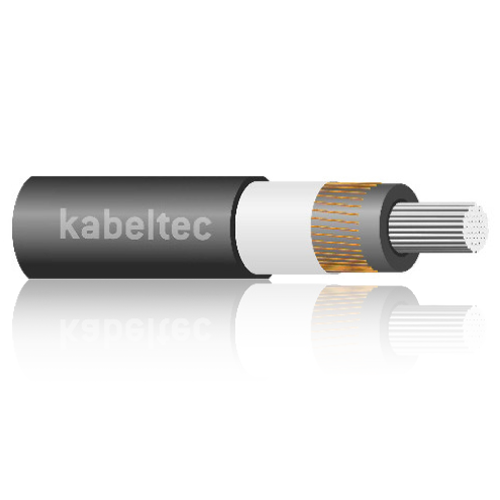

NA2XS2Y

NA2XS2Y

Medium voltage cable IEC 60502
TOTAL PRICE

SGD 0.00

For installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks. The high mechanical durability of the PE-sheath permits strong mechanical stress during installation or operation. PE sheath is halogen-free, but not flame retardant.

CONSTRUCTION:

– Class 2

TECHNICAL DATA:

Conductor Material: Aluminium
Conductor class: Class 2
Core insulation: VPE
Core identification: *
Stranding: *
Outer sheath: PE
Sheath colour: Black
Rated voltage [V]: 6/10 (12) kV
12/20 (24) kV
18/30 (36) k
Testing voltage [V]: 6/10 kV: 21 kV
12/20 kV: 42 kV
18/30 kV: 63 k
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: 15 x d
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]: +70°C
Working temp moved min/mac [C]: -20°C up to +70
Temp at conductor max: +90°C
Burning behaviour: *
Approvals: VDE 0276-620 / IEC 60502

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
824013500/16 1 x 35 / 16 12/20 kV 28 18.2 72.5
824015000/16 1 x 50 / 16 06/10 kV 25 18.2 67
824015000/16 1 x 50 / 16 12/20 kV 29 18.2 83
824015000/16 1 x 50 / 16 18/30 kV 34 18.2 110
824017000/16 1 x 70 / 16 06/10 kV 27 18.2 75
824017000/16 1 x 70 / 16 12/20 kV 31 18.2 92
824017000/25 1 x 70 / 25 12/20 kV 32 43.5 133.2
824017000/16 1 x 70 / 16 18/30 kV 36 18.2 120
824019500/16 1 x 95 / 16 06/10 kV 28 18.2 86
824019500/16 1 x 95 / 16 12/20 kV 32 18.2 105
824019500/16 1 x 95 / 16 18/30 kV 37 18.2 130
8240112000/16 1 x 120 / 16 06/10 kV 30 18.2 95
8240112000/50 1 x 120 / 50 06/10 kV 29.6 56 124.8
8240112000/16 1 x 120 / 16 12/20 kV 34 18.2 115
8240112000/50 1 x 120 / 50 12/20 kV 33.8 56 142.7
8240112000/16 1 x 120 / 16 18/30 kV 39 18.2 145
8240115000/16 1 x 150 / 16 06/10 kV 31 18.2 110
8240115000/25 1 x 150 / 25 06/10 kV 31 28.3 115
8240115000/16 1 x 150 / 16 12/20 kV 35 18.2 130
8240115000/25 1 x 150 / 25 12/20 kV 35 28.3 135
8240115000/25 1 x 150 / 25 18/30 kV 40 28.3 165
8240118500/16 1 x 185 / 16 06/10 kV 33 18.2 125
8240118500/25 1 x 185 / 25 06/10 kV 33 28.3 130
8240118500/16 1 x 185 / 16 12/20 kV 37 18.2 145
8240118500/25 1 x 185 / 25 12/20 kV 37 28.3 155
8240118500/25 1 x 185 / 25 18/30 kV 42 28.3 180
8240124000/16 1 x 240 / 16 06/10 kV 35 18.2 140
8240124000/25 1 x 240 / 25 06/10 kV 35 28.3 150
8240124000/16 1 x 240 / 16 12/20 kV 40 18.2 165
8240124000/25 1 x 240 / 25 12/20 kV 40 28.3 175
8240124000/50 1 x 240 / 50 12/20 kV 39.2 56 189.8
8240124000/25 1 x 240 / 25 18/30 kV 44 28.3 205
8240130000/25 1 x 300 / 25 06/10 kV 37 28.3 175
8240130000/25 1 x 300 / 25 12/20 kV 42 28.3 200
8240130000/25 1 x 300 / 25 18/30 kV 47 28.3 230
8240140000/35 1 x 400 / 35 06/10 kV 41 39.4 215
8240140000/35 1 x 400 / 35 12/20 kV 45 39.4 240
8240140000/35 1 x 400 / 35 18/30 kV 50 39.4 275
8240150000/35 1 x 500 / 35 06/10 kV 44 39.4 250
8240150000/35 1 x 500 / 35 12/20 kV 48 39.4 280
8240150000/50 1 x 500 / 50 12/20 kV 47.7 56 284.3
8240150000/35 1 x 500 / 35 18/30 kV 53 39.4 315
8240163000/35 1 x 630 /35 6/10 kv 48 39.4 250
8240163000/35 1 x 630 /35 12/35 kv 52 39.4 329.7
8240163000/35 1 x 630 /35 18/30 kv 62 39.4 377
8240180000/35 1 x 800 /35 12/20 kv 58 39.4 390
8240180000/35 1 x 800 /35 18/30 kv 39.4 431
