For fixed installation in buildings, in free air, in ground and in water.

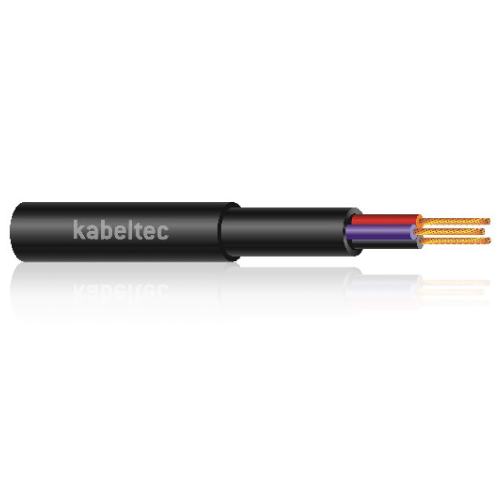

(N)2XY_FR
High voltage cable
TECHNICAL DATA:
Conductor Material: Copper, bare
Conductor class: Up to 16MM² class1, from 25MM² upwards class 2
Core insulation: XLPE
Core identification: Up to 5 cores acc. to DIN VDE 0293 coloured cores from 6
cores black cores with white numerals
Stranding: *
Outer sheath: PVC ST2
Sheath colour: Black, UV-resistant
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 4000
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: 15 x d
Min. bending radius moved [xd]:*
Working temp fixed min/max [C]: -30°C up to +70
Working temp moved min/mac [C]: -5°C up to +70
Temp at conductor max: +90°C
Burning behaviour: VDE 0482-266-2-4/IEC 60332-3-24
Approvals: IEC 60402
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 7008010150 | 1 x 1.50 | 6.4 | 1.44 | 6.3 |
| 7008010250 | 1 x 2.50 | 6.8 | 2.4 | 6.6 |
| 7008010400 | 1 x 4 | 7.3 | 3.8 | 11 |
| 7008010600 | 1 x 6 | 7.8 | 5.8 | 13 |
| 7008011000 | 1 x 10 | 9.1 | 9.6 | 18 |
| 7008011600 | 1 x 16 | 10.1 | 15.4 | 24 |
| 7008012500 | 1 x 25 | 11.8 | 24 | 35 |
| 7008013500 | 1 x 35 | 13 | 33.6 | 46 |
| 7008015000 | 1 x 50 | 14.5 | 48 | 60 |
| 7008017000 | 1 x 70 | 16.5 | 67.2 | 77.9 |
| 7008019500 | 1 x 95 | 18.4 | 91.2 | 104 |
| 70080112000 | 1 x 120 | 20.2 | 115.2 | 135 |
| 70080115000 | 1 x 150 | 22.2 | 144 | 157.9 |
| 70080118500 | 1 x 185 | 24.8 | 177.6 | 198.1 |
| 70080124000 | 1 x 240 RMv | 27.7 | 230.4 | 256 |
| 70080130000 | 1 x 300 RMv | 29.9 | 288 | 314.2 |
| 70080140000 | 1 x 400 | 33.5 | 384 | 410 |
| 70080150000 | 1 x 500 | 38 | 480 | 520 |
| 7008020150 | 2 x 1.50 | 10.7 | 2.9 | 15.9 |
| 7008020250 | 2 x 2.50 | 11.5 | 4.8 | 19.5 |
| 7008020400 | 2 x 4 | 12.5 | 7.7 | 24.9 |
| 7008020600 | 2 x 6 | 13.5 | 11.5 | 31.1 |
| 7008021000 | 2 x 10 | 16.1 | 19.2 | 46.5 |
| 7008021600 | 2 x 16 | 18.2 | 30.7 | 64.2 |
| 7008022500 | 2 x 25 | 22.4 | 48 | 100 |
| 7008025000 | 2 x 50 | 25.1 | 96 | 182.4 |
| 7008030150 | 3 x 1.50 RE | 11.3 | 4.3 | 17.7 |
| 7008030250 | 3 x 2.50 RE | 12 | 7.2 | 22.3 |
| 7008030400 | 3 x 4 RE | 13.1 | 11.5 | 29.1 |
| 7008030600 | 3 x 6 RE | 14.1 | 17.3 | 37 |
| 7008031000 | 3 x 10 RE | 16.9 | 28.8 | 56.2 |
| 7008031600 | 3 x 16 RE | 19.2 | 46.1 | 79 |
| 7008032500 | 3 x 25 /16 RM | 23.7 | 72 | 123.4 |
| 7008033500 | 3 x 35 /16 SM | 26.6 | 100.8 | 162 |
| 7008035000 | 3 x 50 /25 SMv | 27.1 | 144 | 180 |
| 7008037000 | 3 x 70 /35 SMv | 31.2 | 201.6 | 252 |
| 7008039500 | 3 x 95 /50 SMv | 39.1 | 273.6 | 380 |
| 70080312000 | 3 x 120 /70 SMv | 42.3 | 345.6 | 470 |
| 70080315000 | 3 x 150 /70 SMv | 46.8 | 432 | 560 |
| 70080318500 | 3 x 185 /95 SMv | 51.9 | 532.8 | 740 |
| 70080324000 | 3 x 240 /120 SMv | 59.6 | 691.2 | 960 |
| 70080330000 | 3 x 300 /150 SMv | 66.7 | 1008 | 1120 |
| 7008040150 | 4 x 1.50 RE | 11.8 | 5.8 | 20.2 |
| 7008040250 | 4 x 2.50 RE | 12.8 | 9.6 | 25.8 |
| 7008040400 | 4 x 4 | 14.1 | 15.4 | 34.3 |
| 7008040600 | 4 x 6 | 15.2 | 23 | 44.2 |
| 7008041000 | 4 x 10 | 18.4 | 38.4 | 67.8 |
| 7008041600 | 4 x 16 | 21.7 | 61.4 | 101.3 |
| 7008042500 | 4 x 25 | 26.2 | 96 | 153 |
| 7008043500 | 4 x 35 | 27.4 | 134.4 | 199 |
| 7008045000 | 4 x 50 | 29 | 192 | 207.1 |
| 7008047000 | 4 x 70 | 31.1 | 268.8 | 290.8 |
| 7008049500 | 4 x 95 | 35.1 | 364.8 | 395.8 |
| 70080412000 | 4 x 120 | 38.8 | 460.8 | 495.9 |
| 70080415000 | 4 x 150 | 42.5 | 576 | 606.1 |
| 70080418500 | 4 x 185 | 47.5 | 710.4 | 763.2 |
| 70080424000 | 4 x 240 | 52.6 | 921.6 | 990.8 |
| 7008050150 | 5 x 1.50 RE | 13.1 | 7.2 | 27 |
| 7008050250 | 5 x 2.50 RE | 14.2 | 12 | 35 |
| 7008050400 | 5 x 4 RE | 15.1 | 19.2 | 48 |
| 7008050600 | 5 x 6 RE | 17.6 | 28.8 | 61 |
| 7008051000 | 5 x 10 RE | 19.7 | 48 | 88 |
| 7008051600 | 5 x 16 RE | 22.1 | 76.8 | 125 |
| 7008052500 | 5 x 25 RM | 27.2 | 120 | 195 |
| 7008053500 | 5 x 35 | 29.9 | 168 | 240 |
| 7008057000 | 5 x 70 | 40.9 | 336 | 445 |
| 7008059500 | 5 x 95 | 45.7 | 456 | 613.4 |
| 70080512000 | 5 x 120 | 50.9 | 576 | 748.3 |
| 70080515000 | 5 x 150 | 49 | 720 | 849 |
| 7008070150 | 7 x 1.50 RE | 14.1 | 10.1 | 30 |
| 7008070250 | 7 x 2.50 RE | 15.2 | 16.8 | 42 |
| 7008100150 | 10 x 1.50 RE | 17.1 | 14.4 | 36 |
| 7008100250 | 10 x 2.50 RE | 18.5 | 24 | 50 |
| 7008190150 | 19 x 1.50 RE | 19.5 | 27.4 | 56 |
| 7008190150 | 19 x 2.50 RE | 21.6 | 45.6 | 83 |
