For installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks. PE sheath is halogen-free, but not flame retardant. The water blocking tape avoids water propagation inside the cable.

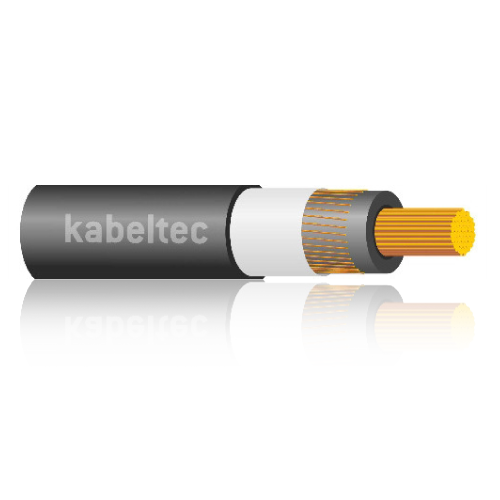

N2XS(F)2Y
Medium voltage cable
TECHNICAL DATA:
Conductor Material: Copper, bare
Conductor class: Class 2
Core insulation: VPE
Core identification:
Stranding:
Outer sheath: PE
Sheath colour: Black
Rated voltage [V]: 6/10 (12) kV
12/20 (24) kV
18/30 (36) kV
Testing voltage [V]: 6/10 kV: 21 kV
12/20 kV: 42 kV
18/30 kV: 63 kV
Conductor resistance:
Insulation resistance:
Current carrying capacity:
Min. bending radius fixed [xd]: 15 x d
Min. bending radius moved [xd]:
Working temp fixed min/max [C]: +70°C
Working temp moved min/mac [C]: -20°C up to +70
Temp at conductor max: +90°C in operation +250°C in case of short circuit
Burning behaviour:
Approvals: VDE 0276-620
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 833015000/16 | 1 x 50 / 16 06/10 kV | 25 | 18.2 | 85 |
| 833015000/16 | 1 x 50 / 16 12/20 kV | 29 | 18.2 | 105 |
| 833015000/16 | 1 x 50 / 16 18/30 kV | 34 | 18.2 | 135 |
| 833017000/16 | 1 x 70 / 16 06/10 kV | 27 | 18.2 | 95 |
| 833017000/16 | 1 x 70 / 16 12/20 kV | 31 | 18.2 | 95 |
| 833017000/16 | 1 x 70 / 16 18/30 kV | 36 | 18.2 | 145 |
| 833019500/16 | 1 x 95 / 16 06/10 kV | 28 | 18.2 | 110 |
| 833019500/16 | 1 x 95 / 16 12/20 kV | 32 | 18.2 | 130 |
| 833019500/16 | 1 x 95 / 16 18/30 kV | 37 | 18.2 | 160 |
| 833019500/35 | 1 x 95 / 35 18/30 kV | 37.5 | 39.6 | 142 |
| 8330112000/16 | 1 x 120 / 16 06/10 kV | 30 | 18.2 | 120 |
| 8330112000/16 | 1 x 120 / 16 12/20 kV | 34 | 18.2 | 145 |
| 8330112000/16 | 1 x 120 / 16 18/30 kV | 39 | 18.2 | 175 |
| 8330112000/35 | 1 x 120 / 35 18/30 kV | 39 | 39.6 | 156 |
| 8330115000/25 | 1 x 150 / 25 06/10 kV | 31 | 28.3 | 140 |
| 8330115000/16 | 1 x 150 / 16 12/20 kV | 36 | 18.2 | 125.4 |
| 8330115000/25 | 1 x 150 / 25 12/20 kV | 36 | 28.3 | 165 |
| 8330115000/50 | 1 x 150 / 50 12/20 kV | 36.4 | 56 | 156 |
| 8330115000/25 | 1 x 150 / 25 18/30 kV | 40 | 28.3 | 195 |
| 8330115000/35 | 1 x 150 / 35 18/30 kV | 40.5 | 39.6 | 167 |
| 8330118500/25 | 1 x 185 / 25 06/10 kV | 33 | 28.3 | 155 |
| 8330118500/25 | 1 x 185 / 25 12/20 kV | 37 | 28.3 | 180 |
| 8330118500/25 | 1 x 185 / 25 18/30 kV | 42 | 28.3 | 215 |
| 8330118500/35 | 1 x 185 / 35 18/30 kV | 42 | 39.6 | 182.5 |
| 8330124000/25 | 1 x 240 / 25 06/10 kV | 35 | 28.3 | 175 |
| 8330124000/25 | 1 x 240 / 25 12/20 kV | 40 | 28.3 | 205 |
| 8330124000/25 | 1 x 240 / 25 18/30 kV | 44 | 28.3 | 240 |
| 8330130000/25 | 1 x 300 / 25 06/10 kV | 37 | 28.3 | 205 |
| 8330130000/25 | 1 x 300 / 25 12/20 kV | 42 | 28.3 | 230 |
| 8330130000/50 | 1 x 300 / 50 12/20 kV | 42 | 56 | 212 |
| 8330130000/25 | 1 x 300 / 25 18/30 kV | 47 | 28.3 | 270 |
| 8330130000/35 | 1 x 300 / 35 18/30 kV | 46 | 39.6 | 228.5 |
| 8330140000/35 | 1 x 400 / 35 06/10 kV | 40 | 39.4 | 245 |
| 8330140000/50 | 1 x 400 / 50 06/10 kV | 40 | 56 | 220 |
| 8330140000/35 | 1 x 400 / 35 12/20 kV | 45 | 39.4 | 280 |
| 8330140000/35 | 1 x 400 / 35 18/30 kV | 50 | 39.4 | 320 |
| 8330140000/70 | 1 x 400 /70 18/30 kv | 79.1 | 365 | |
| 8330150000/35 | 1 x 500 / 35 06/10 kV | 44 | 39.4 | 285 |
| 8330150000/35 | 1 x 500 / 35 12/20 kV | 48 | 39.4 | 320 |
| 8330150000/50 | 1 x 500 / 50 12/20 kV | 48.3 | 56 | 284 |
| 8330150000/35 | 1 x 500 / 35 18/30 kV | 53 | 39.4 | 365 |
| 8330150000/50 | 1 x 500 / 50 18/30 kV | 54.5 | 56.5 | 331 |
| 8330163000/35 | 1 x 630 /35 6/10 kv | 49 | 39.4 | 296.9 |
| 8330163000/35 | 1 x 630 /35 12/20 kv | 52 | 39.4 | 326.8 |
| 8330163000/35 | 1 x 630 /35 18/30 kv | 60 | 39.4 | 373.8 |
| 8330180000/35 | 1 x 800 /35 12/20 kv | 60 | 39.4 | 397.3 |
| 8330180000/35 | 1 x 800 /35 18/30 kv | 65 | 39.4 | 436.7 |
| 8330110000/35 | 1 x 1000 /35 6/10 kv | 56 | 39.4 | 445 |
| 8330110000/35 | 1 x 1000 /35 12/20 kv | 63 | 39.4 | 461 |
| 8350110000/35 | 1 x 1000 /35 18/30KV | 66 | 39.4 | 480 |
