For installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry and distribution networks. The good installation properties of this cable make installation easy, even on difficult routes. Acc. to VDE 0276 cables must be protected against direct sun irradiation.

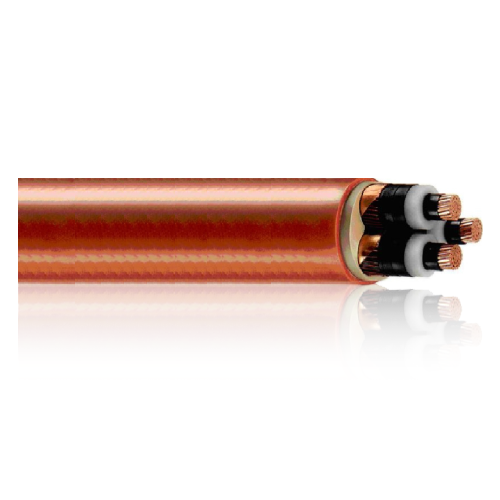

N2XSEY
Acc. to VDE 0276-620; 6/10 kV
CONSTRUCTION:
- Copper wire, circular, multi-wired
- Core insulation made of VPE
- Collective core cover (EPDM or plastic foil)
- Screening (bare copper wires and contact helix) above each core
- Outer sheath: PVC, red
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 2 |
| Core insulation: | VPE |
| Core identification: | |
| Stranding: | |
| Outer sheath: | PVC |
| Sheath colour: | Red |
| Rated voltage [V]: | 6000 / 10000 |
| Testing voltage [V]: | 21000 |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 15 x d |
| Min. bending radius moved [xd]: | |
| Working temp fixed min/max [C]: | -20°C up to +70°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C |
| Temp at conductor max: 90°C | |
| Burning behaviour: | VDE 0482-332-1-2/IEC 60332-1: flame-retardant |
| Approvals: | DIN VDE 0276-620 HD 620 S1: 1996 IEC 60502 DIN EN 60228 class 2 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 713033500/16 | 3 x 35 / 16 | 49.00 | 120.90 | 330.00 |
| 713035000/16 | 3 x 50 / 16 | 52.00 | 167.10 | 390.00 |
| 713037000/16 | 3 x 70 / 16 | 55.00 | 224.70 | 470.00 |
| 713039500/16 | 3 x 95 / 16 | 60.00 | 299.40 | 585.00 |
| 7130312000/16 | 3 x 120 / 16 | 64.00 | 371.40 | 680.00 |
| 7130315000/25 | 3 x 150 / 25 | 67.00 | 463.80 | 795.00 |
| 7130318500/25 | 3 x 185 / 25 | 71.00 | 564.60 | 930.00 |
| 7130324000/25 | 3 x 240 / 25 | 77.00 | 727.20 | 1155.00 |
