For installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks. The high mechanical durability of the PE-sheath permits strong mechanical stress during installation or operation. PE sheath is halogen-free, but not flame retardant. The outer sheath is UV resistant.

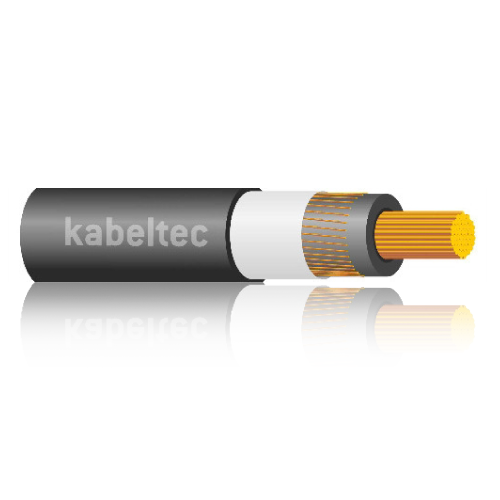

N2XS2Y
Medium voltage cable
TECHNICAL DATA:
Conductor Material: Copper, bare
Conductor class: Class 2
Core insulation: VPE
Core identification: *
Stranding: *
Outer sheath: PE
Sheath colour: *
Rated voltage [V]: 6/10 (12) kV 12/20 (24) kV 18/30 (36) k
Testing voltage [V]: 6/10 kV: 21 kV 12/20 kV: 42 kV 18/30 kV: 63 k
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: 15 x d
Min. bending radius moved [xd]: *
Working temp fixed min/max [C]: -30°C (for fixed installation and no mechanical stress) +70°C
Working temp moved min/mac [C]: -20°C up to +70
Temp at conductor max: *
Burning behaviour: +90°C in operation +250°C in case of short circuit
Approvals: VDE 0276-620
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 8310013500/16 | 1 x 35 / 16 6/10 kV | 24 | 51.8 | 90 |
| 8310013500/16 | 1 x 35 / 16 12/20 kV | 28 | 51.8 | 97 |
| 8310015000/16 | 1 x 50 / 16 6/10 kV | 25 | 66.2 | 95 |
| 8310015000/16 | 1 x 50 / 16 12/20 kV | 29 | 66.2 | 115 |
| 8310015000/16 | 1 x 50 / 16 18/30 kV | 34 | 66.2 | 135 |
| 8310017000/16 | 1 x 70 / 16 6/10 kV | 27 | 85.4 | 120 |
| 8310017000/50 | 1 x 70 / 50 6/10 kV | 27.5 | 123.2 | 147.4 |
| 8310017000/16 | 1 x 70 / 16 12/20 kV | 31 | 85.4 | 135 |
| 8310017000/16 | 1 x 70 / 16 18/30 kV | 36 | 85.4 | 160 |
| 833010950/16 | 1 x 95 / 16 6/10 kV | 28 | 109.4 | 145 |
| 8310019500/16 | 1 x 95 / 16 12/20 kV | 32 | 109.4 | 165 |
| 8310019500/16 | 1 x 95 / 16 18/30 kV | 37 | 109.4 | 190 |
| 83100112000/16 | 1 x 120 / 16 6/10 kV | 30 | 133.4 | 170 |
| 83100112000/16 | 1 x 120 / 16 12/20 kV | 34 | 133.4 | 190 |
| 83100112000/16 | 1 x 120 / 16 18/30 kV | 39 | 133.4 | 215 |
| 83100115000/16 | 1 x 150 / 16 6/10 kV | 31 | 162.2 | 195 |
| 83100115000/25 | 1 x 150 / 25 6/10 kV | 31 | 172.3 | 205 |
| 83100115000/50 | 1 x 150 / 50 6/10 kV | 31.8 | 200 | 227.1 |
| 83100115000/16 | 1 x 150 / 16 12/20 kV | 35 | 162.2 | 215 |
| 83100115000/25 | 1 x 150 / 25 12/20 kV | 35 | 172.3 | 225 |
| 83100115000/25 | 1 x 150 / 25 18/30 kV | 40 | 172.3 | 255 |
| 83100115000/50 | 1 x 150 / 50 18/30 kV | 42 | 196.9 | 275 |
| 833011850/16 | 1 x 185 / 16 6/10 kV | 33 | 195.8 | 235 |
| 83100118500/25 | 1 x 185 / 25 6/10 kV | 33 | 205.9 | 240 |
| 83100118500/16 | 1 x 185 / 16 12/20 kV | 37 | 195.8 | 255 |
| 83100118500/25 | 1 x 185 / 25 12/20 kV | 37 | 205.9 | 260 |
| 83100118500/25 | 1 x 185 / 25 18/30 kV | 42 | 205.9 | 290 |
| 833012400/16 | 1 x 240 / 16 6/10 kV | 35 | 248.6 | 290 |
| 83100124000/25 | 1 x 240 / 25 6/10 kV | 35 | 258.7 | 295 |
| 83100124000/50 | 1 x 240 / 50 6/10 kV | 35.6 | 286.4 | 316.4 |
| 83100124000/16 | 1 x 240 / 16 12/20 kV | 40 | 248.6 | 310 |
| 83100124000/25 | 1 x 240 / 25 12/20 kV | 40 | 258.7 | 320 |
| 83100124000/25 | 1 x 240 / 25 18/30 kV | 44 | 258.7 | 350 |
| 83100124000/70 | 1 x 240 / 70 18/30 kV | 45 | 308.4 | 420 |
| 83100130000/25 | 1 x 300 / 25 6/10 kV | 37 | 316.3 | 355 |
| 83100130000/25 | 1 x 300 / 25 12/20 kV | 42 | 316.3 | 380 |
| 83100130000/50 | 1 x 300 / 50 18/30 kV | 46.8 | 344 | 427.6 |
| 83100130000/25 | 1 x 300 / 25 18/30 kV | 47 | 316.3 | 415 |
| 83100140000/35 | 1 x 400 / 35 6/10 kV | 41 | 423.4 | 450 |
| 83100140000/35 | 1 x 400 / 35 12/20 kV | 45 | 423.4 | 475 |
| 83100140000/35 | 1 x 400 / 35 18/30 kV | 50 | 423.4 | 510 |
| 83100150000/35 | 1 x 500 / 35 6/10 kV | 44 | 519.4 | 550 |
| 83100150000/35 | 1 x 500 / 35 12/20 kV | 48 | 519.4 | 580 |
| 83100150000/35 | 1 x 500 / 35 18/30 kV | 53 | 519.4 | 620 |
| 83100163000/35 | 1 x 630 / 35 18/30 kV | 58 | 644.2 | 740.3 |
| 83100163000/35 | 1 x 630 /35 6/10 kv | 49 | 638.4 | 684 |
| 83100163000/35 | 1 x 630 /35 12/20 kv | 644.2 | 709 |
