For fixed installation in buildings, in free air, in ground and in water.

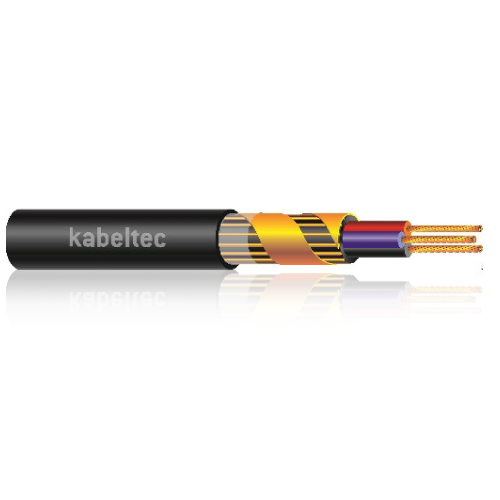

(N)2XCY_FR
High voltage cable
CONSTRUCTION:
- Bare copper wires
- Flame-retardant
TECHNICAL DATA:
| Conductor Material: Copper, bare | Copper, bare |
| Conductor class: | annealed copper solid class 1(RE), circular or circular compacted stranded conductor cl. 2 (RM) or stranded sector-shaped conductor cl. 2 (SM) acc. to EN 60228 |
| Core insulation: | VPE |
| Core identification: | 2- core: blue, brown
3- core: brown, black, grey |
| Stranding: | * |
| Outer sheath: | PVC |
| Sheath colour: | * |
| Rated voltage [V]: | 600 / 1000 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | * |
| Insulation resistance: | * |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | 12 x d |
| Min. bending radius moved [xd]: | * |
| Working temp fixed min/max [C]: | -35°C up to +70 |
| Working temp moved min/mac [C]: | -35°C up to +70 |
| Temp at conductor max: | +90°C |
| Burning behaviour: | EN 60332-1-2 |
| Approvals: | * |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 709020400.00 | 2 x 4 | 16.00 | 12.30 | 35.00 |
| 709020600.00 | 2 x 6 | 15.00 | 18.20 | 39.20 |
| 709030250.00 | 3 x 2.50 | 14.20 | 10.40 | 28.00 |
| 709030600.00 | 3 x 6 | 17.30 | 24.00 | 50.00 |
| 709031600.00 | 3 x 16 | 23.10 | 64.30 | 101.00 |
| 709040250.00 | 4 x 2.50 | 14.00 | 12.80 | 34.00 |
| 709040400.00 | 4 x 4 | 21.00 | 20.00 | 46.00 |
| 709040600.00 | 4 x 6 | 22.00 | 29.70 | 58.00 |
| 709041000.00 | 4 x 10 | 23.00 | 50.40 | 76.50 |
| 709050250.00 | 5 x 2.50 | 17.00 | 15.20 | 40.00 |
| 709050600.00 | 5 x 6 | 21.00 | 35.50 | 70.00 |
| 709070250.00 | 7 x 2.50 | 21.00 | 20.00 | 45.00 |
| 709070600.00 | 7 x 6 | 23.00 | 47.00 | 79.00 |
| 709071000.00 | 7 x 10 | 25.00 | 73.90 | 125.50 |
| 709120250.00 | 12 x 2.50 | 25.00 | 33.40 | 62.80 |
| 709140250.00 | 14 x 2.50 | 26.00 | 40.30 | 75.00 |
| 709190250.00 | 19 x 2.50 | 29.00 | 52.30 | 94.00 |
| 709240250.00 | 24 x 2.50 | 33.00 | 69.60 | 110.60 |
