Suitable for fix installation on ships and offshore-units above and below deck as well as in safety areas where fire resistance is necessary.

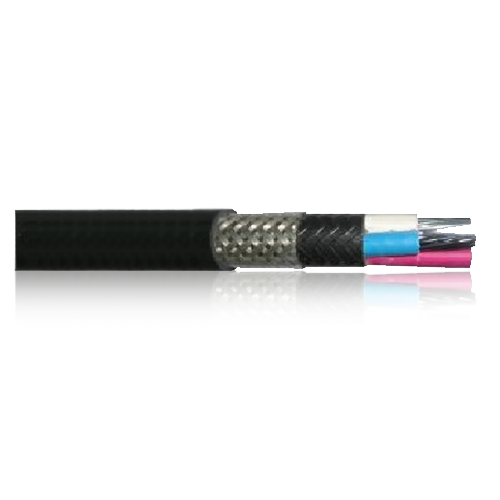

MPRXCX
Screened she power cable
CONSTRUCTION:
– stranded, blank copper conductors in accordance to VDE 0295, class 2 or IEC 228 cl. 2
– cores twisted in layers
– filling mixture
– polyolefin based outer sheath, black
– flame-retardant, oil-resistant
Type Approval Certificates:
– American Bureau
– Bureau Veritas
– Det Norske Veritas
– Germanischer Lloyd
– Lloyds Register of Shipping
– Registro Italiano Navale
– Russian Maritime Register of Shipping
TECHNICAL DATA:
Conductor Material: Copper, bare
Conductor class: Class 2 or IEC 228 cl. 2
Core insulation: XPLE
Core identification: 1 core: black
2 cores: black, blue
3 cores: black, blue, brown
4 cores: black, blue, brown, white
5-24 cores: black with figure imprints starting in the
centre with 1
Stranding: Cores twisted in layers
Outer sheath: Polyolefin
Sheath colour: Black
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 3500
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: *
Min. bending radius moved [xd]:*
Working temp fixed min/max [C]: -35°C up to +80
Working temp moved min/mac [C]: -30°C up to +80
Temp at conductor max: +90°C in operation +250°C in case of short circuit
Burning behaviour: *
Approvals: Standard IEC 60092-353
Flame retardant IEC 60332-3
Low smoke IEC 61034
Halogen free IEC 60754-1
No toxicity IEC 60754-1
No corrosivity IEC 60754-2
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 702010150.00 | 1 x 1.50 Cl. 2 | 7.70 | 4.80 | 8.50 |
| 702010250.00 | 1 x 2.50 Cl. 2 | 8.20 | 6.00 | 10.00 |
| 702010400.00 | 1 x 4 Cl. 2 | 8.90 | 8.10 | 12.50 |
| 702010600.00 | 1 x 6 Cl. 2 | 9.70 | 10.40 | 16.00 |
| 702011000.00 | 1 x 10 Cl. 2 | 10.90 | 14.90 | 22.00 |
| 702011600.00 | 1 x 16 Cl. 2 | 12.60 | 21.40 | 30.00 |
| 702012500.00 | 1 x 25 Cl. 2 | 14.60 | 31.10 | 45.00 |
| 702013500.00 | 1 x 35 Cl. 5 | 15.90 | 41.60 | 55.00 |
| 702015000.00 | 1 x 50 Cl. 5 | 17.60 | 57.20 | 70.00 |
| 702017000.00 | 1 x 70 Cl. 5 | 19.80 | 77.90 | 95.00 |
| 702019500.00 | 1 x 95 Cl. 5 | 22.40 | 103.40 | 125.00 |
| 7020112000.00 | 1 x 120 Cl. 5 | 24.50 | 131.60 | 160.00 |
| 7020115000.00 | 1 x 150 Cl. 5 | 26.50 | 161.50 | 190.00 |
| 7020118500.00 | 1 x 185 Cl. 5 | 29.10 | 196.80 | 230.00 |
| 7020124000.00 | 1 x 240 Cl. 5 | 32.40 | 250.60 | 300.00 |
| 7020130000.00 | 1 x 300 Cl. 5 | 35.80 | 318.60 | 370.00 |
| 702020150.00 | 2 x 1.50 Cl. 2 | 13.10 | 10.50 | 24.00 |
| 702020250.00 | 2 x 2.50 Cl. 2 | 14.10 | 13.20 | 30.00 |
| 702020400.00 | 2 x 4 Cl. 2 | 15.80 | 17.00 | 38.00 |
| 702020600.00 | 2 x 6 Cl. 2 | 17.20 | 21.70 | 46.00 |
| 702021000.00 | 2 x 10 Cl. 2 | 19.80 | 30.70 | 64.00 |
| 702021600.00 | 2 x 16 Cl. 2 | 22.80 | 47.10 | 91.00 |
| 702022500.00 | 2 x 25 Cl. 2 | 27.80 | 67.00 | 138.00 |
| 702030150.00 | 3 x 1.50 Cl. 2 | 13.70 | 12.50 | 27.00 |
| 702030250.00 | 3 x 2.50 Cl. 2 | 14.80 | 16.10 | 33.00 |
| 702030400.00 | 3 x 4 Cl. 2 | 16.90 | 25.00 | 44.00 |
| 702030600.00 | 3 x 6 Cl. 2 | 18.30 | 28.20 | 54.00 |
| 702031000.00 | 3 x 10 Cl. 2 | 21.20 | 41.70 | 79.00 |
| 702031600.00 | 3 x 16 Cl. 2 | 24.20 | 63.60 | 109.00 |
| 702032500.00 | 3 x 25 Cl. 2 | 29.60 | 92.40 | 167.00 |
| 702033500.00 | 3 x 35 Cl. 5 | 32.30 | 123.30 | 206.00 |
| 702035000.00 | 3 x 50 Cl. 5 | 35.80 | 170.30 | 270.00 |
| 702037000.00 | 3 x 70 Cl. 5 | 41.10 | 41.30 | 370.00 |
| 702039500.00 | 3 x 95 Cl. 5 | 46.40 | 319.20 | 480.00 |
| 7020312000.00 | 3 x 120 Cl. 5 | 50.70 | 397.50 | 600.00 |
| 702040150.00 | 4 x 1.50 Cl. 2 | 14.50 | 14.70 | 31.00 |
| 702040250.00 | 4 x 2.50 Cl. 2 | 16.00 | 19.00 | 39.00 |
| 702040400.00 | 4 x 4 Cl. 2 | 18.00 | 28.40 | 51.00 |
| 702040600.00 | 4 x 6 Cl. 2 | 19.60 | 37.10 | 65.00 |
| 702041000.00 | 4 x 10 Cl. 2 | 23.10 | 54.50 | 96.00 |
| 702041600.00 | 4 x 16 Cl. 2 | 26.60 | 79.60 | 135.00 |
| 702042500.00 | 4 x 25 Cl. 2 | 32.40 | 117.00 | 210.00 |
| 702043500.00 | 4 x 35 Cl. 5 | 35.20 | 157.80 | 255.00 |
| 702045000.00 | 4 x 50 Cl. 5 | 39.40 | 227.80 | 340.00 |
| 702047000.00 | 4 x 70 Cl. 5 | 45.00 | 309.00 | 460.00 |
| 702049500.00 | 4 x 95 Cl. 5 | 51.10 | 411.00 | 600.00 |
| 702050150.00 | 5 x 1.50 Cl. 2 | 15.80 | 17.10 | 36.00 |
| 702070150.00 | 7 x 1.50 Cl. 2 | 17.10 | 20.90 | 42.00 |
| 702100150.00 | 10 x 1.50 Cl. 2 | 21.20 | 31.80 | 65.00 |
| 702120150.00 | 12 x 1.50 Cl. 2 | 22.00 | 35.30 | 68.00 |
| 702140150.00 | 14 x 1.50 Cl. 2 | 22.80 | 39.20 | 75.00 |
| 702160150.00 | 16 x 1.50 Cl. 2 | 24.00 | 43.20 | 85.00 |
| 702190150.00 | 19 x 1.50 Cl. 2 | 25.10 | 48.60 | 95.00 |
| 702240150.00 | 24 x 1.50 Cl. 2 | 29.60 | 60.10 | 120.00 |
