Suitable for fix installation on ships and offshore-units above and below deck as well as in safety areas where fire resistance is necessary.

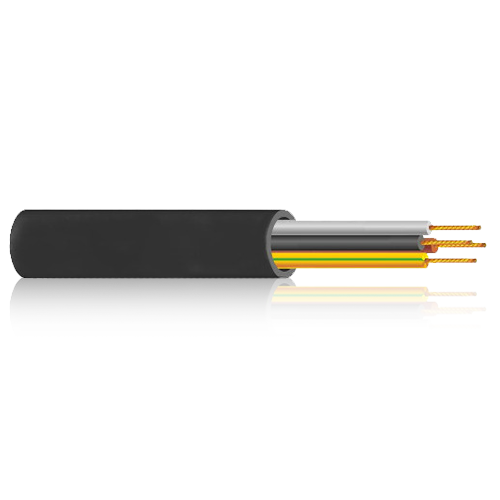

MPRX
Ship power cable
CONSTRUCTION:
- Stranded, blank copper conductors in acc. to VDE 0295, class 2 or IEC 228 cl. 2
Core insulation made of XLPE, heat-resistant
Cores twisted in layers
Filling mixture
Polyolefin based outer sheath, black
Flame-retardant, oil-resistant
Core identification:
1 core: black
2 cores: black, blue
3 cores: black, blue, brown
4 cores: black, blue, brown, white
5-24 cores: black with figure imprints starting in the centre with 1 - Type Approval Certificates:
American Bureau
Bureau Veritas
Det Norske Veritas
Germanicher Lloyd
Lloyds Register of Shipping
Registro Italiano Navale
Russian Maritime Register of shipping
TECHNICAL DATA:
Conductor Material: Copper, bare
Conductor class: Class 2 or class 5
Core insulation: XLPE
Core identification: 1 core: black
2 cores: black, blue
3 cores: black, blue, brown
4 cores: black, blue, brown, white
5-24 cores: black with figure imprints starting in the
centre with 1
Stranding: Cores twisted in layers
Outer sheath: Polyolefin
Sheath colour: black
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 3500
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: *
Min. bending radius moved [xd]:*
Working temp fixed min/max [C]: -35°C up to +80
Working temp moved min/mac [C]: -30°C up to +80
Temp at conductor max: +90°C
Burning behaviour: *
Approvals: Standard IEC 60092-353
Flame-retardant IEC 60332-3
Low-smoke IEC 61034
Halogen-free IEC 60754-1
No toxicity IEC 60754-1
No corrosivity IEC 60754-2
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 721010150.00 | 1 x 1.50 Cl. 2 | 5.60 | 0.00 | 4.00 |
| 721010250.00 | 1 x 2.50 Cl. 2 | 6.20 | 0.00 | 5.00 |
| 721010400.00 | 1 x 4 Cl. 2 | 7.50 | 3.80 | 8.00 |
| 721010600.00 | 1 x 6 Cl. 2 | 8.50 | 5.80 | 11.00 |
| 721011000.00 | 1 x 10 Cl. 2 | 9.50 | 9.60 | 15.00 |
| 721011600.00 | 1 x 16 Cl. 2 | 10.50 | 15.40 | 22.00 |
| 721012500.00 | 1 x 25 Cl. 2 | 12.00 | 24.00 | 32.00 |
| 721013500.00 | 1 x 35 Cl. 5 | 13.00 | 33.60 | 42.00 |
| 721015000.00 | 1 x 50 Cl. 5 | 14.50 | 48.00 | 56.00 |
| 721017000.00 | 1 x 70 Cl. 5 | 16.50 | 67.20 | 78.00 |
| 721019500.00 | 1 x 95 Cl. 5 | 19.00 | 91.20 | 103.00 |
| 7210112000.00 | 1 x 120 Cl. 5 | 20.50 | 115.20 | 129.00 |
| 7210115000.00 | 1 x 150 Cl. 5 | 22.50 | 144.00 | 159.00 |
| 7210118500.00 | 1 x 185 Cl. 5 | 25.00 | 177.60 | 196.00 |
| 7210124000.00 | 1 x 240 Cl. 5 | 28.00 | 230.40 | 256.00 |
| 7210130000.00 | 1 x 300 Cl. 5 | 31.00 | 288.00 | 320.00 |
| 721020150.00 | 2 x 1.50 Cl. 2 | 11.50 | 2.90 | 13.00 |
| 721020250.00 | 2 x 2.50 Cl. 2 | 12.00 | 4.80 | 17.00 |
| 721020400.00 | 2 x 4 Cl. 2 | 13.50 | 7.70 | 22.00 |
| 721020600.00 | 2 x 6 Cl. 2 | 14.50 | 11.50 | 28.00 |
| 721021000.00 | 2 x 10 Cl. 2 | 17.00 | 19.20 | 41.00 |
| 721021600.00 | 2 x 16 Cl. 2 | 19.50 | 30.70 | 59.00 |
| 721022500.00 | 2 x 25 Cl. 2 | 22.50 | 48.00 | 88.00 |
| 721030150.00 | 3 x 1.50 Cl. 2 | 12.00 | 4.30 | 16.00 |
| 721030250.00 | 3 x 2.50 Cl. 2 | 13.00 | 7.20 | 21.00 |
| 721030400.00 | 3 x 4 Cl. 2 | 14.00 | 11.50 | 27.00 |
| 721030600.00 | 3 x 6 Cl. 2 | 15.50 | 17.30 | 35.00 |
| 721031000.00 | 3 x 10 Cl. 2 | 17.50 | 28.80 | 51.00 |
| 721031600.00 | 3 x 16 Cl. 2 | 20.00 | 46.10 | 75.00 |
| 721032500.00 | 3 x 25 Cl. 2 | 24.00 | 72.00 | 113.00 |
| 721033500.00 | 3 x 35 Cl. 5 | 26.50 | 100.80 | 150.00 |
| 721035000.00 | 3 x 50 Cl. 5 | 30.00 | 144.00 | 197.00 |
| 721037000.00 | 3 x 70 Cl. 5 | 35.00 | 201.60 | 277.00 |
| 721039500.00 | 3 x 95 Cl. 5 | 39.50 | 273.60 | 368.00 |
| 7210312000.00 | 3 x 120 Cl. 5 | 43.50 | 345.60 | 458.00 |
| 721040150.00 | 4 x 1.50 Cl. 2 | 12.50 | 5.80 | 20.00 |
| 721040250.00 | 4 x 2.50 Cl. 2 | 13.50 | 9.60 | 25.00 |
| 721040400.00 | 4 x 4 Cl. 2 | 15.00 | 15.40 | 33.00 |
| 721040600.00 | 4 x 6 Cl. 2 | 16.50 | 23.00 | 44.00 |
| 721041000.00 | 4 x 10 Cl. 2 | 19.50 | 38.40 | 66.00 |
| 721041600.00 | 4 x 16 Cl. 2 | 22.50 | 61.40 | 95.00 |
| 721042500.00 | 4 x 25 Cl. 2 | 26.50 | 96.00 | 146.00 |
| 721043500.00 | 4 x 35 Cl. 5 | 29.00 | 134.40 | 192.00 |
| 721045000.00 | 4 x 50 Cl. 5 | 33.00 | 192.00 | 252.00 |
| 721047000.00 | 4 x 70 Cl. 5 | 39.00 | 268.80 | 353.00 |
| 721049500.00 | 4 x 95 Cl. 5 | 44.00 | 364.80 | 473.00 |
| 721050150.00 | 5 x 1.50 Cl. 2 | 13.50 | 7.20 | 23.00 |
| 721050250.00 | 5 x 2.50 Cl. 2 | 12.20 | 0.00 | 20.00 |
| 721050400.00 | 5 x 4 Cl. 2 | 15.50 | 0.00 | 32.00 |
| 721050600.00 | 5 x 6 Cl. 2 | 16.50 | 0.00 | 42.00 |
| 721051000.00 | 5 x 10 Cl. 2 | 19.00 | 0.00 | 63.00 |
| 721070150.00 | 7 x 1.50 Cl. 2 | 14.50 | 10.10 | 29.00 |
| 721070250.00 | 7 x 2.50 Cl. 2 | 14.00 | 0.00 | 28.00 |
| 721100150.00 | 10 x 1.50 Cl. 2 | 17.00 | 14.40 | 36.00 |
| 721120150.00 | 12 x 1.50 Cl. 2 | 17.50 | 17.30 | 41.00 |
| 721120250.00 | 12 x 2.50 Cl. 2 | 19.50 | 0.00 | 46.00 |
| 721140150.00 | 14 x 1.50 Cl. 2 | 18.50 | 20.20 | 47.00 |
| 721160150.00 | 16 x 1.50 Cl. 2 | 19.50 | 23.00 | 53.00 |
| 721190150.00 | 19 x 1.50 Cl. 2 | 20.50 | 27.40 | 61.00 |
| 721190250.00 | 19 x 2.50 Cl. 2 | 22.50 | 0.00 | 69.00 |
| 721240150.00 | 24 x 1.50 Cl. 2 | 23.50 | 34.60 | 76.00 |
| 721240250.00 | 24 x 1.50 Cl. 2 | 21.00 | 0.00 | 63.00 |
| 721010150 | 1 x 1.50 Cl. 2 | 5.6 | 4 | |
| 721010250 | 1 x 2.50 Cl. 2 | 6.2 | 5 | |
| 721010400 | 1 x 4 Cl. 2 | 7.5 | 3.8 | 8 |
| 721010600 | 1 x 6 Cl. 2 | 8.5 | 5.8 | 11 |
| 721011000 | 1 x 10 Cl. 2 | 9.5 | 9.6 | 15 |
| 721011600 | 1 x 16 Cl. 2 | 10.5 | 15.4 | 22 |
| 721012500 | 1 x 25 Cl. 2 | 12 | 24 | 32 |
| 721013500 | 1 x 35 Cl. 5 | 13 | 33.6 | 42 |
| 721015000 | 1 x 50 Cl. 5 | 14.5 | 48 | 56 |
| 721017000 | 1 x 70 Cl. 5 | 16.5 | 67.2 | 78 |
| 721019500 | 1 x 95 Cl. 5 | 19 | 91.2 | 103 |
| 7210112000 | 1 x 120 Cl. 5 | 20.5 | 115.2 | 129 |
| 7210115000 | 1 x 150 Cl. 5 | 22.5 | 144 | 159 |
| 7210118500 | 1 x 185 Cl. 5 | 25 | 177.6 | 196 |
| 7210124000 | 1 x 240 Cl. 5 | 28 | 230.4 | 256 |
| 7210130000 | 1 x 300 Cl. 5 | 31 | 288 | 320 |
| 721020150 | 2 x 1.50 Cl. 2 | 11.5 | 2.9 | 13 |
| 721020250 | 2 x 2.50 Cl. 2 | 12 | 4.8 | 17 |
| 721020400 | 2 x 4 Cl. 2 | 13.5 | 7.7 | 22 |
| 721020600 | 2 x 6 Cl. 2 | 14.5 | 11.5 | 28 |
| 721021000 | 2 x 10 Cl. 2 | 17 | 19.2 | 41 |
| 721021600 | 2 x 16 Cl. 2 | 19.5 | 30.7 | 59 |
| 721022500 | 2 x 25 Cl. 2 | 22.5 | 48 | 88 |
| 721030150 | 3 x 1.50 Cl. 2 | 12 | 4.3 | 16 |
| 721030250 | 3 x 2.50 Cl. 2 | 13 | 7.2 | 21 |
| 721030400 | 3 x 4 Cl. 2 | 14 | 11.5 | 27 |
| 721030600 | 3 x 6 Cl. 2 | 15.5 | 17.3 | 35 |
| 721031000 | 3 x 10 Cl. 2 | 17.5 | 28.8 | 51 |
| 721031600 | 3 x 16 Cl. 2 | 20 | 46.1 | 75 |
| 721032500 | 3 x 25 Cl. 2 | 24 | 72 | 113 |
| 721033500 | 3 x 35 Cl. 5 | 26.5 | 100.8 | 150 |
| 721035000 | 3 x 50 Cl. 5 | 30 | 144 | 197 |
| 721037000 | 3 x 70 Cl. 5 | 35 | 201.6 | 277 |
| 721039500 | 3 x 95 Cl. 5 | 39.5 | 273.6 | 368 |
| 7210312000 | 3 x 120 Cl. 5 | 43.5 | 345.6 | 458 |
| 721040150 | 4 x 1.50 Cl. 2 | 12.5 | 5.8 | 20 |
| 721040250 | 4 x 2.50 Cl. 2 | 13.5 | 9.6 | 25 |
| 721040400 | 4 x 4 Cl. 2 | 15 | 15.4 | 33 |
| 721040600 | 4 x 6 Cl. 2 | 16.5 | 23 | 44 |
| 721041000 | 4 x 10 Cl. 2 | 19.5 | 38.4 | 66 |
| 721041600 | 4 x 16 Cl. 2 | 22.5 | 61.4 | 95 |
| 721042500 | 4 x 25 Cl. 2 | 26.5 | 96 | 146 |
| 721043500 | 4 x 35 Cl. 5 | 29 | 134.4 | 192 |
| 721045000 | 4 x 50 Cl. 5 | 33 | 192 | 252 |
| 721047000 | 4 x 70 Cl. 5 | 39 | 268.8 | 353 |
| 721049500 | 4 x 95 Cl. 5 | 44 | 364.8 | 473 |
| 721050150 | 5 x 1.50 Cl. 2 | 13.5 | 7.2 | 23 |
| 721050250 | 5 x 2.50 Cl. 2 | 12.2 | 20 | |
| 721050400 | 5 x 4 Cl. 2 | 15.5 | 32 | |
| 721050600 | 5 x 6 Cl. 2 | 16.5 | 42 | |
| 721051000 | 5 x 10 Cl. 2 | 19 | 63 | |
| 721070150 | 7 x 1.50 Cl. 2 | 14.5 | 10.1 | 29 |
| 721070250 | 7 x 2.50 Cl. 2 | 14 | 28 | |
| 721100150 | 10 x 1.50 Cl. 2 | 17 | 14.4 | 36 |
| 721120150 | 12 x 1.50 Cl. 2 | 17.5 | 17.3 | 41 |
| 721120250 | 12 x 2.50 Cl. 2 | 19.5 | 46 | |
| 721140150 | 14 x 1.50 Cl. 2 | 18.5 | 20.2 | 47 |
| 721160150 | 16 x 1.50 Cl. 2 | 19.5 | 23 | 53 |
| 721190150 | 19 x 1.50 Cl. 2 | 20.5 | 27.4 | 61 |
| 721190250 | 19 x 2.50 Cl. 2 | 22.5 | 69 | |
| 721240150 | 24 x 1.50 Cl. 2 | 23.5 | 34.6 | 76 |
| 721240250 | 24 x 1.50 Cl. 2 | 21 | 63 | |
| 721240250 | 24 x 2.50 Cl. 2 | 26.5 | 88 | |
| 721270150 | 27 x 1.50 Cl. 2 | 23 | 70 | |
| 721270250 | 27 x 2.50 Cl. 2 | 27.5 | 97 | |
| 721370150 | 37 x 1.50 Cl. 2 | 27 | 93 | |
| 721370250 | 37 x 2.50 Cl. 2 | 30.5 | 130 |
