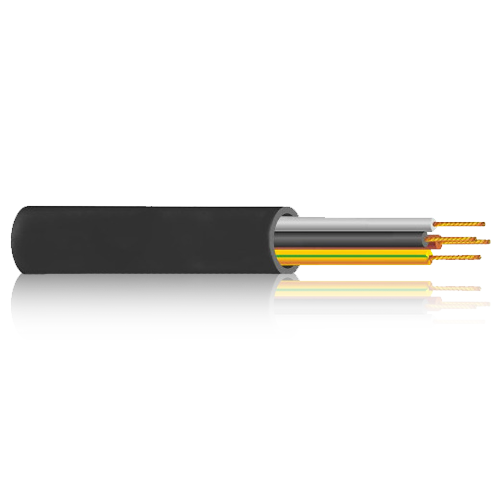

M2XH

CONSTRUCTION:

– stranded, tinned copper conductors in accordance to VDE 0295 class 2 or IEC 228 cl. 2
– core insulation made of EPR, heat-resistant
– cores twisted into layers
– overall sleeve halogen-free
– foil made of polyester
– elastomere based outer sheath, black
– flame-retardant, halogen-free
– screened
– Core marking:
2 cores: black, blue
3 cores: black, blue, brown
4 cores: black, blue, brown, black
5-37 cores: numbered beginning with NR1 from inside to outside

TECHNICAL DATA:

Conductor Material: Copper, bare
Conductor class: Class 2 or IEC 228 cl. 2
Core insulation: EPR
Core identification: 2 cores:black, blue
3 cores: black, blue, brown
4 cores: black, blue, brown, black
5-37 cores: numbered beginning with NR1 from inside to
Outside
Stranding: Cores twisted into layers
Outer sheath: Elastomere compound
Sheath colour: Black
Rated voltage [V]: 500 / 500
Testing voltage [V]: *
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: *
Min. bending radius fixed [xd]: *
Min. bending radius moved [xd]: 5 x d
Working temp fixed min/max [C]: -10°C up to +85
Working temp moved min/mac [C]: -10°C up to +85
Temp at conductor max: +85°C in operation
Burning behaviour: *
Approvals: Standard: IEC 60092-353
IEC 60332-3
IEC 60754-1
Flammwidrig IEC 60332-3
Rauchdichte IEC 61034
Halogen frei IEC 60754-1
Kein Gasetoxität IEC 60754-1
Keine Korrosivität IEC 60754-2
Approvals are available:
– VDE Certificate of conformity with manufacturing
surveillance
– Approval Certificate from Germanischer Lloyd
– Certified manufacturer according to ISO 9001
