LSOH-FLAT

LSOH FLAT

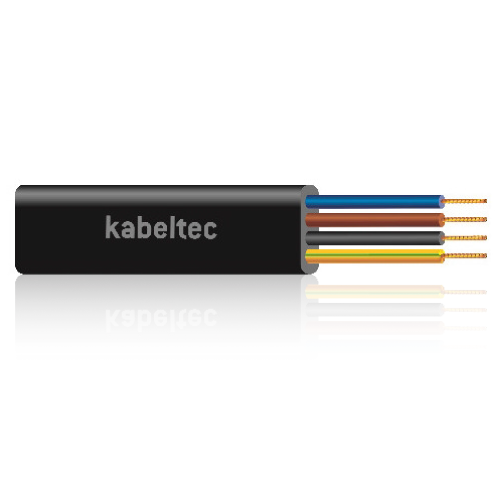

Halogen free flat form cable
TOTAL PRICE

SGD 0.00

Suitable in dry, wet and moist rooms as control and power cable. For use in trolley systems, transfer lines, machine-tools, on histing devices, lift, crane and container bridges. Also in application where cables are bended strongly in permanent moving operation in one level.

Speed: max. 1,6 m/s suspension height: max. 35m

CONSTRUCTION:

  • Copper wires, bare
  • Stranding acc. to VDE 0295, class 5
  • Outer sheath Polyolefin, black
  • Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals resp. white with black numerals, with or without GNYE

TECHNICAL DATA:

Conductor Material Copper ,bare
Conductor class Class 5
Core insulation special compound, halogen free
Core identification
acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals resp. white with black numerals, with or without GNYE
Stranding Cores parallely side by side
Outer sheath Polyolefin
Sheath colour Black
Rated voltage [V] for 1mm² 300/500V, from 1,5mm² 0,6/1kV
Testing voltage [V] 2500
Conductor resistance Acc. to DIN VDE 0295 or IEC 60228
Insulation resistance
Current carrying capacity DIN VDE (s. technical guidelines)
Min. bending radius fixed [xd] 10 x d
Min. bending radius moved [xd] 10 x d
Working temp fixed min/max [C] -40°C up to +70
Working temp moved min/mac [C] -25°C up to +70
Temp at conductor max +90 °C
Burning behaviour IEC 60332-1: flame-retardant and self-extinguishing
Approvals halogen free: acc. to IEC 60754-1 and IEC 60754-2
Smoke density acc. to IEC 61034-2 Standard similar to DIN VDE 0250

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
677040150H 4 x 1.50 max. 5.80x16.90 5.80 11.00
677040250H 4 x 2.50 max. 6.0x19.20 9.60 17.00
677040400H 4 x 4.00 max. 7.50x23.40 15.40 25.00
677040600H 4 x 6.00 max. 8.10x26.60 23.00 33.00
677041000H 4 x 10 max. 10.0x30.60 38.40 55.00
677041600H 4 x 16 max. 11.60x36.90 61.50 80.00
677042500H 4 x 25 max. 12.90.x43.30 96.00 135.00
677043500H 4 x 35 max. 14.50x49.00 134.40 180.00
677045000H 4 x 50 max. 18.80x58.80 192.00 240.00
677080150H 8 x 1.50 max. 5.80x30.50 11.50 22.00
677080250H 8 x 2.50 max. 6.0x35.60 19.20 33.00
677120150H 12 x 1.50 max. 5.80x43.60 17.50 32.00
677120250H 12 x 2.50 max. 6.0x52.30 29.00 49.00
677240100H 24 x 1.00 max. 5.10x71.70 23.04 63.00
