Used as junction or connecting cables in control, measuring and signalling technology as well as in data processing and office technology for lossless transmission of datas and signals. The tight copper screening provides optimum protection against external electrical interference. Suitable for use in dry and humid rooms. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Good chemical resistance, largely oil resistant.

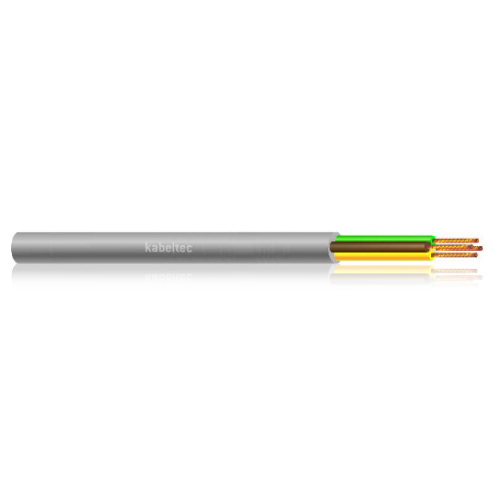

LIYCY
According to DIN 47100/OZ
CONSTRUCTION:
- fine strands of bare copper conductor
- Stranding acc. to VDE 0295 class 5
- PVC core insulation
- Colored cores acc. to DIN 47100 for cross sections from 0,14 to 0,75 mm²
- Black cores with continuous figure imprint in white from cross sections 1,0 to 10,0 mm²
- Overall screen of tinned cooper wires
- Cores twisted into layers
- Foil wrapping
- PVC outer sheath grey, RAL 7001 or RAL 7032
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation: | PVC |
| Core identification: | Cross sections from 0,14 to 0,75 mm² coloured cores acc. to DIN 47100 1,0 to 10 mm² : black cores with continuous figure imprint in white |
| Stranding: | Cores twisted into layers |
| Outer sheath: | PVC |
| Sheath colour: | Grey (RAL 7001 or RAL 7032) |
| Rated voltage [V]: | 300/500 |
| Testing voltage [V]: | 1200 / 1500 |
| Conductor resistance: | Nach DIN VDE 0295, bzw. IEC 60228 |
| Insulation resistance: | 20 MΩ x km |
| Current carrying capacity: | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd]: | bis 12mm : 5 x d bis 20mm : 7.5 x d > 20mm : 10 |
| Min. bending radius moved [xd]: | bis 12mm : 10 x d bis 20mm : 15 x d > 20mm : 20 |
| Working temp fixed min/max [C]: | -30°C up to +80°C |
| Working temp moved min/mac [C]: | -15°C up to +70°C Temp at conductor max. |
| Burning behaviour: | IEC 60332-1: self-extinguishing and flame-retardant |
| Approvals: | VDE 0812 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 20010014.00 | 1 x 0.14 | 3.60 | 0.80 | 1.70 |
| 19060075.00 | 6 x 0.75 | 8.00 | 8.50 | 14.50 |
| 20010025.00 | 1 x 0.25 | 3.10 | 0.80 | 1.40 |
| 19060250.00 | 6 x 2.50 | 13.70 | 21.00 | 30.50 |
| 20010034.00 | 1 x 0.34 | 3.20 | 1.00 | 1.60 |
| 19060400.00 | 6 x 4 | 16.10 | 31.50 | 42.40 |
| 19010050.00 | 1 x 0.50 | 3.60 | 1.40 | 2.10 |
| 19060600.00 | 6 x 6 | 18.20 | 44.00 | 59.70 |
| 19010075.00 | 1 x 0.75 | 3.80 | 1.80 | 2.70 |
| 19061000.00 | 6 x 10 | 22.80 | 72.00 | 90.50 |
| 19010100.00 | 1 x 1 | 4.90 | 2.30 | 4.40 |
| 20070014.00 | 7 x 0.14 | 5.10 | 2.00 | 5.40 |
| 19010150.00 | 1 x 1.50 | 5.10 | 2.90 | 4.90 |
| 20070025.00 | 7 x 0.25 | 6.00 | 3.50 | 6.10 |
| 20070034.00 | 7 x 0.34 | 6.60 | 4.60 | 7.00 |
| 20020014.00 | 2 x 0.14 | 3.90 | 1.10 | 2.10 |
| 19070050.00 | 7 x 0.50 | 7.40 | 7.00 | 8.40 |
| 20020025.00 | 2 x 0.25 | 4.50 | 1.50 | 2.80 |
| 19070075.00 | 7 x 0.75 | 8.30 | 9.80 | 15.80 |
| 20020034.00 | 2 x 0.34 | 5.00 | 2.00 | 3.10 |
| 19070100.00 | 7 x 1 | 8.50 | 12.00 | 16.20 |
| 19070150.00 | 7 x 1.50 | 10.00 | 16.20 | 22.50 |
| 19010250.00 | 1 x 2.50 | 5.90 | 6.50 | 9.50 |
| 19070250.00 | 7 x 2.50 | 13.70 | 23.50 | 34.00 |
| 19070400.00 | 7 x 4 | 16.10 | 35.50 | 47.30 |
| 19070600.00 | 7 x 6 | 18.20 | 50.50 | 67.10 |
| 19020050.00 | 2 x 0.50 | 5.40 | 2.60 | 3.60 |
| 19020075.00 | 2 x 0.75 | 5.60 | 3.50 | 6.20 |
| 19020100.00 | 2 x 1 | 6.40 | 5.50 | 8.40 |
| 19020150.00 | 2 x 1.50 | 7.20 | 6.50 | 9.70 |
| 19020250.00 | 2 x 2.50 | 10.10 | 9.80 | 14.80 |
| 19020400.00 | 2 x 4 | 11.70 | 13.50 | 19.40 |
| 19020600.00 | 2 x 6 | 13.10 | 17.50 | 25.10 |
| 19021000.00 | 2 x 10 | 15.50 | 26.50 | 36.00 |
| 19021600.00 | 2 x 16 | 17.00 | 38.50 | 49.00 |
| 20030014.00 | 3 x 0.14 | 4.00 | 1.20 | 4.00 |
| 20030025.00 | 3 x 0.25 | 4.70 | 2.00 | 3.40 |
| 20030034.00 | 3 x 0.34 | 5.10 | 2.40 | 3.80 |
| 19030050.00 | 3 x 0.50 | 5.80 | 3.50 | 4.50 |
| 19030075.00 | 3 x 0.75 | 6.30 | 4.80 | 7.30 |
| 19030100.00 | 3 x 1 | 6.70 | 6.60 | 10.00 |
| 19030150.00 | 3 x 1.50 | 7.70 | 9.00 | 12.50 |
| 19030250.00 | 3 x 2.50 | 10.60 | 12.40 | 18.80 |
| 19030400.00 | 3 x 4 | 12.40 | 17.80 | 25.00 |
| 19030600.00 | 3 x 6 | 13.90 | 24.00 | 28.50 |
| 19031000.00 | 3 x 10 | 16.50 | 37.00 | 48.50 |
| 20040014.00 | 4 x 0.14 | 4.30 | 1.40 | 4.30 |
| 20040025.00 | 4 x 0.25 | 5.00 | 2.20 | 4.00 |
| 20040034.00 | 4 x 0.34 | 5.60 | 2.50 | 4.60 |
| 19040050.00 | 4 x 0.50 | 6.20 | 4.50 | 5.40 |
| 19040075.00 | 4 x 0.75 | 7.00 | 5.60 | 9.50 |
| 19040100.00 | 4 x 1 | 7.20 | 8.00 | 12.00 |
| 19040150.00 | 4 x 1.50 | 8.20 | 11.00 | 14.50 |
| 19040250.00 | 4 x 2.50 | 11.60 | 15.00 | 23.60 |
| 19040400.00 | 4 x 4 | 13.50 | 22.00 | 30.20 |
| 19040600.00 | 4 x 6 | 15.20 | 30.50 | 41.20 |
| 19041000.00 | 4 x 10 | 18.10 | 48.50 | 62.00 |
| 20050014.00 | 5 x 0.14 | 4.70 | 1.60 | 4.70 |
| 20050025.00 | 5 x 0.25 | 5.50 | 2.70 | 4.70 |
| 20050034.00 | 5 x 0.34 | 6.00 | 3.00 | 5.40 |
| 19050050.00 | 5 x 0.50 | 6.70 | 5.30 | 6.70 |
| 19050075.00 | 5 x 0.75 | 7.40 | 7.00 | 12.00 |
| 19050100.00 | 5 x 1 | 7.80 | 9.00 | 13.60 |
| 19050150.00 | 5 x 1.50 | 9.00 | 12.70 | 17.30 |
| 19050250.00 | 5 x 2.50 | 12.60 | 18.00 | 27.00 |
| 19050400.00 | 5 x 4 | 14.80 | 27.00 | 37.00 |
| 19050600.00 | 5 x 6 | 16.70 | 37.00 | 50.50 |
| 19051000.00 | 5 x 10 | 20.00 | 59.50 | 79.60 |
| 20060014.00 | 6 x 0.14 | 5.00 | 1.90 | 5.20 |
| 20060025.00 | 6 x 0.25 | 6.00 | 3.00 | 5.90 |
| 20060034.00 | 6 x 0.34 | 6.60 | 4.30 | 6.70 |
| 19060050.00 | 6 x 0.50 | 7.30 | 6.80 | 8.10 |
