Used as junction or connecting cables in control, measuring and signalling technology as well as in data processing and office technology for lossless transmission of datas and signals. The twisted pairs are provided with a tinned overall copper screening to avoid external interference or mutual interference between various line circuits. Suitable for use in dry and humid rooms. For fixed laying and flexible applications with undefined cable routing and without tensile stress.
LIYCY-CY Paired

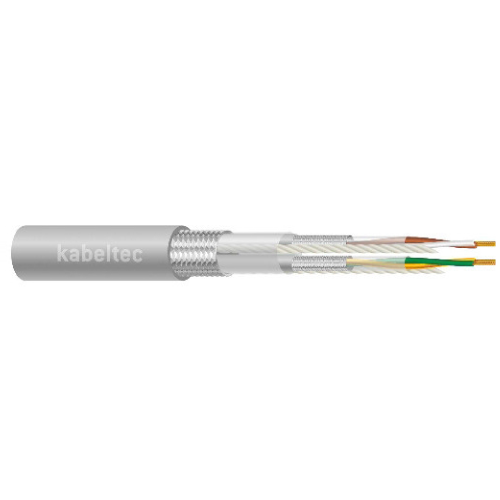

Flexible data cable, screened pairs and overall screen
CONSTRUCTION:
- Fine strands of bare copper conductor
- Stranding acc. to VDE 0295 class 5
- PVC core insulation
- Pairs individually screened
- Overall screen of tinned cooper wires
- Cores twisted into layers
- Foil wrapping
- PVC outer sheath grey, RAL 7001 or RAL 7032
Technical Data:
Conductor Material | Copper, bare |
Conductor class | Class 5 |
Core insulation | PVC |
Core identification | DIN 47100 |
Stranding | 2 cores twisted into pairs; Pairs stranded in layers |
Outer sheath | PVC |
Sheath colour | Grey (RAL 7032) |
Rated voltage [V] | 350 / 500 |
Testing voltage [V] | Core/screen 2000 V |
Core/core | on 0.14 mm² 1200 V and > 0.14mm² 1500 |
Conductor resistance | Acc. to DIN VDE 0295 or IEC 60228 |
Insulation resistance | ≥ 20 MΩ x km |
Current carrying capacity | DIN VDE (see technical guidelines) |
Min. bending radius fixed [xd] | up to 12mm Ø: 5 x d up to 20mm Ø: 7,5 x d > 20mm Ø: 10 |
Min. bending radius moved [xd] | up to 12mm Ø: 10 x d up to 20mm Ø: 15 x d > 20mm Ø: 20 |
Working temp fixed min/max [C] | -30°C up to +80°C |
Working temp moved min/mac [C] | -5°C up to +70°C Temp at conductor max. |
Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
Approvals | VDE 0812, 0814 und DIN 47414 |
PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
---|---|---|---|---|
25020014.00 | 2 x 2 x 0.14 | 7.70 | 4.60 | 10.00 |
25020025.00 | 2 x 2 x 0.25 | 9.50 | 6.30 | 12.50 |
25020034.00 | 2 x 2 x 0.34 | 12.70 | 6.70 | 13.50 |
25020050.00 | 2 x 2 x 0.5 | 13.00 | 9.10 | 19.30 |
25020075.00 | 2 x 2 x 0.75 | 12.20 | 9.50 | 20.50 |
25030014.00 | 3 x 2 x 0.14 | 8.00 | 6.50 | 11.50 |
25030025.00 | 3 x 2 x 0.25 | 10.00 | 8.00 | 15.00 |
25030034.00 | 3 x 2 x 0.34 | 13.80 | 9.00 | 16.80 |
25030050.00 | 3 x 2 x 0.5 | 13.40 | 11.00 | 21.00 |
25030075.00 | 3 x 2 x 0.75 | 13.50 | 12.37 | 26.50 |
25040014.00 | 4 x 2 x 0.14 | 8.50 | 8.40 | 15.00 |
25040025.00 | 4 x 2 x 0.25 | 11.40 | 9.50 | 18.00 |
25040034.00 | 4 x 2 x 0.34 | 15.50 | 11.10 | 22.60 |
25040050.00 | 4 x 2 x 0.5 | 14.60 | 15.70 | 27.20 |
25040075.00 | 4 x 2 x 0.75 | 15.00 | 16.20 | 32.50 |
25050014.00 | 5 x 2 x 0.14 | 10.70 | 9.20 | 18.00 |
25050025.00 | 5 x 2 x 0.25 | 12.10 | 10.60 | 21.50 |
25060014.00 | 6 x 2 x 0.14 | 11.00 | 10.10 | 20.80 |
25060025.00 | 6 x 2 x 0.25 | 13.50 | 13.50 | 26.00 |
25060034.00 | 6 x 2 x 0.34 | 18.60 | 15.60 | 31.00 |
25060050.00 | 6 x 2 x 0.5 | 18.00 | 19.10 | 39.60 |
25070014.00 | 7 x 2 x 0.14 | 12.00 | 11.20 | 23.00 |
25070025.00 | 7 x 2 x 0.25 | 14.70 | 14.70 | 30.00 |
25080014.00 | 8 x 2 x 0.14 | 13.00 | 12.70 | 24.70 |
25080025.00 | 8 x 2 x 0.25 | 15.50 | 16.60 | 32.50 |
25080034.00 | 8 x 2 x 0.34 | 20.80 | 18.80 | 36.00 |
25080050.00 | 8 x 2 x 0.5 | 19.60 | 22.50 | 42.00 |
25080075.00 | 8 x 2 x 0.75 | 22.00 | 24.50 | 63.40 |
25090014.00 | 9 x 2 x 0.14 | 14.00 | 14.00 | 28.00 |
25100014.00 | 10 x 2 x 0.14 | 14.30 | 15.00 | 32.00 |
25100025.00 | 10 x 2 x 0.25 | 17.00 | 20.70 | 39.50 |
25120014.00 | 12 x 2 x 0.14 | 15.10 | 17.00 | 38.20 |
25120025.00 | 12 x 2 x 0.25 | 18.70 | 24.70 | 44.00 |
25160014.00 | 16 x 2 x 0.14 | 17.20 | 21.40 | 44.00 |
25160025.00 | 16 x 2 x 0.25 | 22.20 | 32.30 | 61.00 |
25200014.00 | 20 x 2 x 0.14 | 18.00 | 26.00 | 52.00 |
25200025.00 | 20 x 2 x 0.25 | 23.60 | 39.00 | 70.80 |
25240025.00 | 24 x 2 x 0.25 | 26.00 | 44.00 | 81.20 |
25320025.00 | 32 x 2 x 0.25 | 29.50 | 58.60 | 90.00 |
