Suitable as control cable in lifts and hoists as control panels, convertors, as self supporting shaft cable, in high shelving racks, cable lines, etc. Also as measuring and control cable in dry and moist rooms, and outdoor use up to -25 °C.

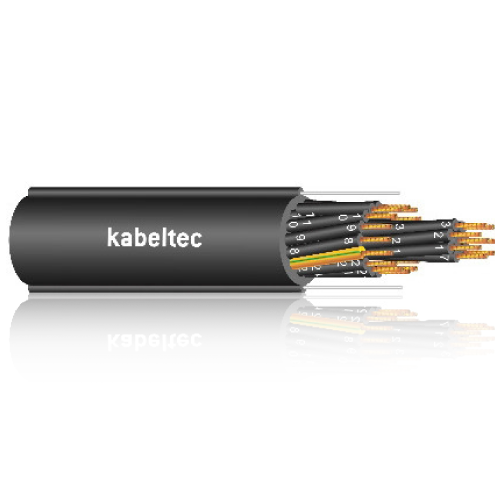

LIFT 2S
Elevator steel wire cable with two external institutions
CONSTRUCTION:
- Super fine stranding of bare copper wires, class 5
- Outer sheath of special weather-resistant, cold-flexible PVC compound, black
- Fabric lapping
- Cores twisted hemp wire
- Flame-retardant
- Carriers integrated in the outer sheath with a breaking strength of 2100 N
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 |
| Core insulation | PVC or thermoplastic material |
| Core identification |
Core colours black with white figure imprint, available with and without earth conductor
|
| Stranding | Cores twisted |
| Outer sheath | Special weather resistant, cold-flexible PVC compound |
| Sheath colour | Black (RAL 9005) |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | 2000 |
| Conductor resistance | |
| Insulation resistance | |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 10 x d |
| Min. bending radius moved [xd] | 12 x d |
| Working temp fixed min/max [C] | -25°C up to +70°C |
| Working temp moved min/mac [C] | -40°C up to +70°C |
| Temp at conductor max | +90°C in operation +250°C in case of short-circuit |
| Burning behaviour | DIN VDE 0482 and IEC 60332-1: flame-retardant and selfextinguishing |
| Approvals | DIN VDE 0250 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 621060150.00 | 6 x 1.50 | 20.1-24.1x11-13 | 8.64 | 35.00 |
| 621080150.00 | 8 x 1.50 | 20.1-24.1x11-13 | 11.50 | 41.90 |
| 62110150.00 | 10 x 1.50 | 20.6-24.6x13-15 | 14.40 | 47.00 |
| 621120100.00 | 12 x 1 | 21-25x12.5-14.5 | 11.52 | 40.80 |
| 621120150.00 | 12 x 1.50 | 20.6-24.6x13-15 | 17.28 | 51.50 |
| 621140150.00 | 14 x 1.50 | 21-25x14.3-16.3 | 20.16 | 55.00 |
| 621160150.00 | 16 x 1.50 | 22-26x15-17 | 23.04 | 59.40 |
| 621180100.00 | 18 x 1 | 22.3-26.3x15-17 | 17.28 | 59.00 |
| 621180150.00 | 18 x 1.50 | 25-29x17.3-19.3 | 25.90 | 65.50 |
| 621200150.00 | 20 x 1.50 | 24.4-28.4x16.8-18.8 | 28.80 | 79.80 |
| 621240150.00 | 24 x 1.50 | 26.5-30.5x18-20 | 34.60 | 82.50 |
| 621250100.00 | 25 x 1 | 25.8-29.8x17.7-19.7 | 24.00 | 75.10 |
| 621300100.00 | 30 x 1 | 28.6-32.6x18.4-22.4 | 28.80 | 89.00 |
