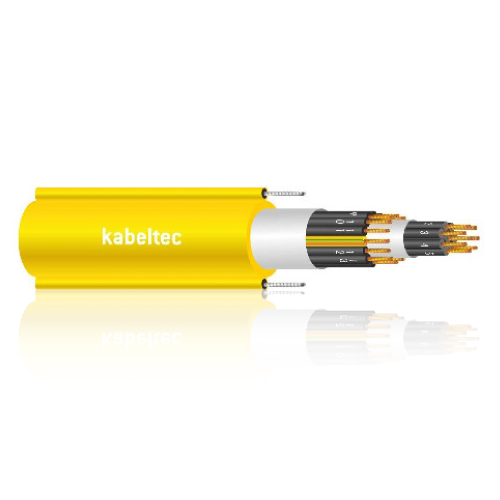

LIFT-2S-UL

LIFT 2S UL

Elevator steel wire cable with two external institutions
TOTAL PRICE

SGD 0.00

Suitable as control cable in lifts and hoists as control panels, convertors, as self supporting shaft cable, in high shelving racks, cable lines, etc. Also as measuring and control cable in dry and moist rooms. Rated for continuous use up to 90°C

CONSTRUCTION:

  • Super fine stranding of blank copper wires, class 5
  • Outer sheath of special weather-resistant, cold-flexible PVC compound, yellow
  • Fabric lapping
  • Cores twisted hemp wire
  • Flame-retardant
  • Carriers integrated in the outer sheath with a breaking strength of 2100 N
  • Bending radius 20 x Ø
  • Colored cores according to ICEA Method 1, Table E-2 with one green/yellow ground conductor

TECHNICAL DATA:

Conductor Material Copper
Conductor class Class 5
Core insulation PVC/Nylon
Core identification colored cores
Stranding Cores twisted
Outer sheath Special weather resistant, cold-flexible PVC compound
Sheath colour yellow
Rated voltage [V] 600
Testing voltage [V] *
Conductor resistance *
Insulation resistance *
Current carrying capacity *
Min. bending radius fixed [xd] *
Min. bending radius moved [xd] *
Working temp fixed min/max [C] -40°C up to +90
Working temp moved min/mac [C] -15°C up to +90
Temp at conductor max *
Burning behaviour *
Approvals UL Pendant 600v 90°C Type MTW CSA AWM 600V 90°C

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
621080150UL 8 x 1.50 AWG16 12.45 11.50 31.20
621120150UL 12 x 1.50 AWG16 14.38 17.28 38.70
621160150UL 16 x 1.50 AWg16 15.85 23.04 46.90
621240150UL 24 x 1.50 AWG16 20.04 34.60 70.70
