Excellent imperviousness to interference radiation. Employed for terminals in medical engineering, data transmission technology, machine and machine tool manufacturing etc for lossless signal transmission. Individual screening of pairs ensures optimum crosstalk attenuation. The copper overall screen provides additional protection against external electric and magnetic fields.
LI2YCY-PIMF

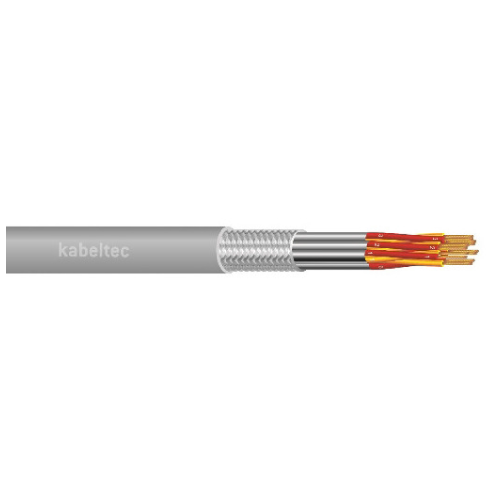

Flexible data transmission cable with pairs in metal foil and overall cooper screen
CONSTRUCTION:
- Fine strands of plain copper conductor
- Stranding as per VDE 0295, class 5
- Lapped with plastic film
- Pairs twisted in layers (PIMF)
- Individual cores insulated with PE
- Cores marking yellow and red, pairs numbered or as per DIN 47100
- 2 cores twisted
- Pairs screened with plastics laminated metal foil with multi-wire tinned tracer wire
- Film lapping
- Overall screen made of copper, tinned
- PVC outer sheath grey, RAL 7032
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 |
| Core insulation | PE |
| Core identification | DIN 47100 |
| Stranding | 2 cores twisted in pairs; Pairs stranded in layers |
| Outer sheath | PVC |
| Sheath colour | Grey (RAL 7032) |
| Rated voltage [V] | 250 |
| Testing voltage [V] | Core/core 2000 V; core/screen 1000 |
| Conductor resistance | Loop: 0,22 mm² max. 186 Ω/km 0,34 mm² max. 115 Ω/km 0,50 mm² max. 78.4 Ω/km |
| Insulation resistance | ≥ 5 GΩ x km |
| Current carrying capacity | IN VDE (see technical guidelines) |
| Min. bending radius fixed [xd] | 10 xd |
| Min. bending radius moved [xd] | 15 xd |
| Working temp fixed min/max [C] | -30°C up to +80°C |
| Working temp moved min/mac [C] | -5°C up to +70°C |
| Temp at conductor max. | |
| Burning behaviour | VDE 0482-332-2-1 (IEC 60332-1): flame-retardant |
| Approvals | VDE 0812 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 26020022.00 | 2 x 2 x 0.22 | 7.70 | 3.30 | 3.90 |
| 26020034.00 | 2 x 2 x 0.34 | 9.00 | 4.40 | 7.10 |
| 26020050.00 | 2 x 2 x 0.50 | 9.90 | 4.70 | 9.70 |
| 26020100.00 | 2 x 2 x 1 | 11.70 | 7.00 | 12.60 |
| 26020075.00 | 2x2 x 0.75 | 10.40 | 6.10 | 11.70 |
| 26030022.00 | 3 x 2 x 0.22 | 7.80 | 3.70 | 5.80 |
| 26030034.00 | 3 x 2 x 0.34 | 9.20 | 5.50 | 8.60 |
| 26030050.00 | 3 x 2 x 0.50 | 10.10 | 6.40 | 11.70 |
| 26030100.00 | 3 x 2 x 1 | 11.90 | 9.70 | 15.60 |
| 26040022.00 | 4 x 2 x 0.22 | 8.30 | 5.00 | 8.40 |
| 26040034.00 | 4 x 2 x 0.34 | 9.40 | 6.70 | 10.40 |
| 26040050.00 | 4 x 2 x 0.50 | 10.40 | 8.10 | 14.10 |
| 26040075.00 | 4 x 2 x 0.75 | 14.00 | 14.10 | 20.40 |
| 26040100.00 | 4 x 2 x 1 | 12.80 | 18.60 | 24.00 |
| 26050050.00 | 5 x 2 x 0.50 | 11.30 | 9.80 | 16.70 |
| 26060075.00 | 6 x 2 x 0.75 | 16.80 | 19.80 | 29.90 |
| 26080022.00 | 8 x 2 x 0.22 | 10.80 | 8.50 | 13.40 |
| 26080034.00 | 8 x 2 x 0.34 | 13.40 | 11.40 | 19.20 |
| 26080050.00 | 8 x 2 x 0.50 | 14.80 | 16.50 | 26.90 |
| 26080075.00 | 8 x 2 x 0.75 | 17.20 | 24.60 | 35.20 |
| 26100022.00 | 10 x 2 x 0.22 | 11.50 | 10.00 | 16.50 |
| 26100034.00 | 10 x 2 x 0.34 | 14.30 | 15.00 | 23.10 |
| 26100050.00 | 10 x 2 x 0.50 | 16.00 | 20.50 | 33.80 |
| 26100075.00 | 10 x 2 x 0.75 | 19.80 | 30.50 | 42.80 |
| 26100100.00 | 10 x 2 x 1 | 20.00 | 33.20 | 50.00 |
| 26160050.00 | 16 x 2 x 0.50 | 21.40 | 33.80 | 44.80 |
| 26160075.00 | 16 x 2 x 0.75 | 24.00 | 44.60 | 63.00 |
| 26200050.00 | 20 x 2 x 0.50 | 22.90 | 39.60 | 59.50 |
| 26200075.00 | 20 x 2 x 0.75 | 25.60 | 53.00 | 74.20 |
| 26300050.00 | 30 x 2 x 0.50 | 27.90 | 59.90 | 84.20 |
| 26300075.00 | 30 x 2 x 0.75 | 30.90 | 76.50 | 103.50 |
| 26400050.00 | 40 x 2 x 0.50 | 30.90 | 74.90 | 109.90 |
| 26500050.00 | 50 x 2 x 0.50 | 34.50 | 95.90 | 135.00 |
