This cable is particularly suitable for wiring data systems with transmission rates up to 10 Megabits per second and is qualified for RS 422 and RS 485 interfaces. Cables of this type are suitable for indoors and outdoors, as well as direct burial in the ground. They are intended for limited flexible use, and for fixed installation in dry or damp interiors.

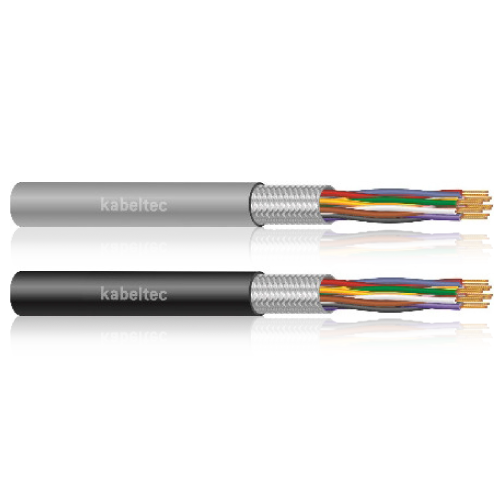

Construction
- Plain copper conductors, 7 cores, Class 2
- Core insulation made of PE
- Colour code acc. to DIN 47100
- Paired cores twisted in layers
- Tinned copper wire screening
- Outer sheath: PVC, CY: Grey (RAL 7032) CYv: Black (RAL 9005)
Technical Data:
Conductor Material | Copper, bare |
Conductor class | Class 2, 7-wired construction |
Core insulation | Polyethylen (PE) |
Core identification | DIN 47100 |
Stranding | Cores twisted in pairs, pairs twisted in layers |
Outer sheath | PVC, reinforced |
Sheath colour | CY: Grey (RAL 7032) |
CYv | Black (RAL 9005) |
Rated voltage [V] | 250 |
Testing voltage [V] | 2000 |
Conductor resistance | Loop: 0,22 mm² max. 186 Ω/km 0.34 mm² max. 115 Ω/km 0,50 mm² max. 78.4 Ω/km |
nsulation resistance | > 5 GΩ x km |
Current carrying capacity | DIN VDE (see technical guidelines) |
Min. bending radius fixed [xd] | 10 x d |
Min. bending radius moved [xd] | 15 x d |
Working temp fixed min/max [C] | -30°C up to +80°C |
Working temp moved min/mac [C] | -5°C up to +70°C |
Temp at conductor max. | |
Burning behaviour | VDE 0482-332-2-1 (IEC 60332-1): flame-retardant |
Approvals | – |
PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
---|---|---|---|---|
2060010034.00 | 1 x 2 x 0.34 (CY) | 5.80 | 2.00 | 4.00 |
206010034.00 | 1 x 2 x 0.34 (CYv) | 7.40 | 2.00 | 4.40 |
2060010050.00 | 1 x 2 x 0.50 (CY) | 6.30 | 2.80 | 5.60 |
206010050.00 | 1 x 2 x 0.50 (CYv) | 7.90 | 2.80 | 6.10 |
2060020022.00 | 2 x 2 x 0.22 (CY) | 7.00 | 2.00 | 4.10 |
2060020034.00 | 2 x 2 x 0.34 (CY) | 8.30 | 2.90 | 6.20 |
206020022.00 | 2 x 2 x 0.22 (CYv) | 8.60 | 2.00 | 4.60 |
205020034.00 | 2 x 2 x 0.34 (CYv) | 9.90 | 2.90 | 6.80 |
2060020050.00 | 2 x 2 x 0.50 (CY) | 9.20 | 4.20 | 6.50 |
206020050.00 | 2 x 2 x 0.50 (CYv) | 10.80 | 4.20 | 7.30 |
2060030022.00 | 3 x 2 x 0.22 (CY) | 7.20 | 2.60 | 6.10 |
2060030034.00 | 3 x 2 x 0.34 (CY) | 8.40 | 3.80 | 7.20 |
206030022.00 | 3 x 2 x 0.22 (CYv) | 8.70 | 2.60 | 6.70 |
205030034.00 | 3 x 2 x 0.34 (CYv) | 10.00 | 3.80 | 7.90 |
2060030050.00 | 3 x 2 x 0.50 (CY) | 9.50 | 4.90 | 9.80 |
206030050.00 | 3 x 2 x 0.50 (CYv) | 10.90 | 4.90 | 10.90 |
2060040022.00 | 4 x 2 x 0.22 (CY) | 7.40 | 3.10 | 7.60 |
2060040034.00 | 4 x 2 x 0.34 (CY) | 8.70 | 4.70 | 8.70 |
206040022.00 | 4 x 2 x 0.22 (CYv) | 8.90 | 3.10 | 8.30 |
206040034.00 | 4 x 2 x 0.34 (CYv) | 10.30 | 4.70 | 9.50 |
2060040050.00 | 4 x 2 x 0.50 (CY) | 9.60 | 6.00 | 11.90 |
206040050.00 | 4 x 2 x 0.50 (CYv) | 11.20 | 6.00 | 12.20 |
2060080022.00 | 8 x 2 x 0.22 (CY) | 9.10 | 5.40 | 11.80 |
2060080034.00 | 8 x 2 x 0.34 (CY) | 11.00 | 7.80 | 15.00 |
206080022.00 | 8 x 2 x 0.22 (CYv) | 10.70 | 5.40 | 12.90 |
206080034.00 | 8 x 2 x 0.34 (CYv) | 12.60 | 7.80 | 16.50 |
2060080050.00 | 8 x 2 x 0.50 (CY) | 12.70 | 10.60 | 21.30 |
206080050.00 | 8 x 2 x 0.50 (CYv) | 13.90 | 14.70 | 23.40 |
2060100022.00 | 10 x 2 x 0.22 (CY) | 10.40 | 6.50 | 14.90 |
2060100034.00 | 10 x 2 x 0.34 (CY) | 13.00 | 11.30 | 18.60 |
206100022.00 | 10 x 2 x 0.22 (CYv) | 12.00 | 6.50 | 16.40 |
206100034.00 | 10 x 2 x 0.34 (CYv) | 14.20 | 11.30 | 20.40 |
2060100050.00 | 10 x 2 x 0.50 (CY) | 14.80 | 14.80 | 25.80 |
206100050.00 | 10 x 2 x 0.50 (CYv) | 16.00 | 16.10 | 28.40 |
