This halogen-free installation cable is used for telephone data and signal transmissions in dry and moist rooms as well as on and under plaster. Typical location for their use are buildings open to public such as hotels, hospitals, etc. This cable grants the functioning of vital equipment and systems necessary to protect life in the event of fire by a duration for at least 90 minutes.

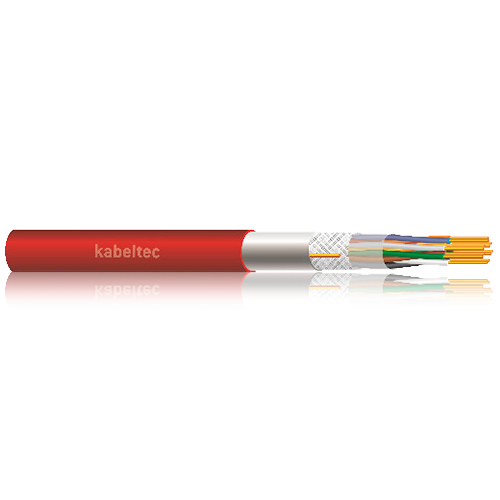

JE-HSTH…Bd E90 red
Halogen-free according to VDE 0815
CONSTRUCTION:
- Static screen made of plastics laminated metal foil and CU tracer wire
- Unit marking by numbers
- Plain copper wires, single wire
- Core insulation of halogen-free elastomer compound
- Cores twisted in pairs
- Flame retardant
- Four pairs laid up in units
- Units twisted in layers
- Outer sheath of halogen-free polymer, red according to VDE 0815
- Bending radius 15 x Ø
TECHNICAL DATA:
| Conductor Material | Copper, tinned |
| Conductor class | * |
| Core insulation | Halogen-free elastomer compound |
| Core identification | Colour+Rings |
| Stranding | Cores twisted in pairs. 4 pairs laid up in units, units twisted in layers. |
| Outer sheath | Halogen-free polymer |
| Sheath colour | Red |
| Rated voltage [V] | 225 |
| Testing voltage [V] | Ader/Ader core/core: 500 V Ader/Schirm core/screen: 2000 |
| Conductor resistance | * |
| Insulation resistance | > 100 MΩ x km |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | * |
| Min. bending radius moved [xd] | * |
| Working temp fixed min/max [C] | -5°C up to +50 |
| Working temp moved min/mac [C] | * |
| Temp at conductor max. | * |
| Burning behaviour | VDE 0482-266-2-4/IEC 60332-3-24 |
| Approvals | * |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 819020080.00 | 2 x 2 x 0.80 | 7.40 | 2.50 | 7.60 |
| 819040080.00 | 4 x 2 x 0.80 | 11.10 | 4.50 | 13.00 |
| 819080080.00 | 8 x 2 x 0.80 | 15.60 | 8.50 | 23.20 |
| 819120080.00 | 12 x 2 x 0.80 | 18.10 | 12.60 | 31.80 |
| 819160080.00 | 16 x 2 x 0.80 | 19.80 | 16.60 | 43.00 |
| 819200080.00 | 20 x 2 x 0.80 | 22.50 | 20.60 | 51.40 |
| 819320080.00 | 32 x 2 x 0.80 | 27.70 | 32.60 | 73.00 |
| 819400080.00 | 40 x 2 x 0.80 | 30.80 | 40.70 | 96.20 |
| 819520080.00 | 52 x 2 x 0.80 | 34.70 | 52.90 | 120.00 |
